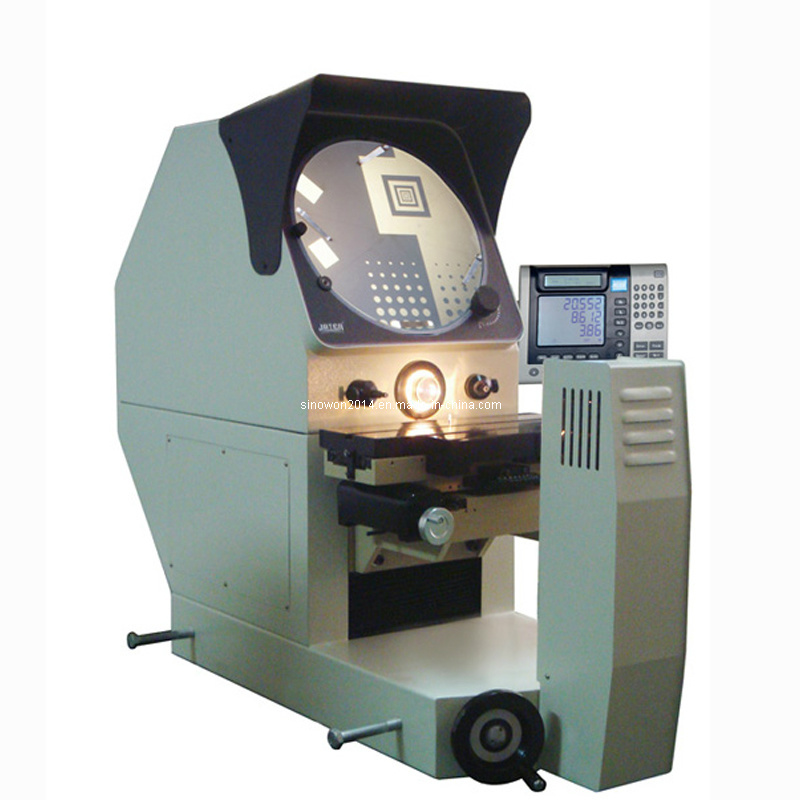

(HB12-2010) Diameter 300mm Horizontal Profile Projector
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
Product Specifications
| Prod Model: |
(HB12-2010) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter Screen: |
400mm |
| Metal Stage Dimension: |
408 X 126 Mm |
| Stage Travel: X-Axis: |
300mm |
| Stage Travel: Y-Axis: |
200mm |
| Stage Travel: Z-Axis: |
75m(for Focusing) |
| Resolution Of X And Y-Scale: |
0.0005mm |
| Gross/Net Weight: |
200/160kg |
| Packing Dimension(Lxwxh): |
1300X880X1250mm |
Product Description
Feature:
300mm diameter screen with digital protractor;
200x100mm precision movement work-stage;
Work-stage sway range between ± 15° ;
Halogen profile and fiber surface illumination adjustable;
Geometric multifunction data processing system upgrade to DRO DP300;
Built-in Mini-Printer;
Available 10x, 20x, 50x, 100x objective, over-chart and foot-switch edge detector etc.
Specification:
| Reverse Image | HB12-2010(#512-301) |
| Obverse Image | HB12-2010Z(#512-311) |
| Metal Stage Size | 408 x 126 mm |
| Stage Travel: X and Z-axis | 200x100 mm |
| Stage Travel: Y-axis | 75mm (For Focusing) |
| X and Z Linear Resolution | 0.0005 mm |
| Sway Range | ±15° |
| Accuracy | ≤3+L/200(um) |
| Screen | Diameter : Ø330mm,effective rang≥Ø300mm(With"*"reticle) |
| Rotary Range of Screen : 0~360. |
| Resolution of Rotary Encoder | 1'/0.01. |
| Digital Readout | DP300 (#561-301) |
| Illumination (Adjuatable) | Contour illumination: 24V/150W (Halogen Lamp) |
| Surface illumination: 21V/150W(Optical Fiber) |
| Power Supply | DP100 multifunction data processing system |
| Instrument Illumination | Contour illumination: 24V/150W (Halogen Lamp) |
| Surface illumination: 21V/150W(Optical Fiber) |
| Power Supply | AC110V/60Hz; 220V/50Hz; 650W |
| Dimension(L×W×H) | 1160 x 600 x960mm |
| Instrument Gross/Net Weight | 200/160Kg |
| Packing dimension(LxWxH) | 1300 x 880 x1250mm |
Standard Delivery:
| Standard Delivery | Code # | Standard Delivery | Code # | Standard Delivery | Code # |
| Digital Readout DP300 | 561-301 | HB12-10X Objective | 512-W11 | Screen Clamp Device | 581-341 |
| Built-in Mini-printer | 581-901 | Power Cable | 581-921 | Manual Operation | HB12 |
Optional Accessories:
| Optional Accessories | Code# | Optional Accessories | Code# | Optional Accessories | Code# |
| Measuring Software | 581-101 | Printer Paper | 581-911 | Edge Detector SED-300 | 581-301 |
| HB12-20X Objective | 512-W21 | HB12-50X Objective | 512-W31 | HB12-100X Objective | 512-W41 |
| Holder Clamp | 581-841 | V-shape Clamp | 581-831 | Swivel Center Support | 581-851 |
| Working Cupboard ST 02 | 581-621 | Over-Chart ST 140 | 581-311 | Foot-Switch ST 150 | 581-351 |
