Product Specifications
| Prod Model: |
HD-3107G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Two Way Radio |
| Channels: |
16 |
| Output Power: |
5W |
| Frequency Step: |
5.6.25,10.12.5.....100kHz |
| Ctcss/Dcs: |
Yes |
| PC Programmable: |
Yes |
| Urgent Alarm: |
Yes |
| Bandwidth: |
Wide/Narrow Band |
| Style: |
Handheld |
| Battery Type: |
Lithium Battery |
| Talk Range: |
3-15kms |
| Usage: |
Home, Commercial, Army |
| Certification: |
FCC |
Product Description

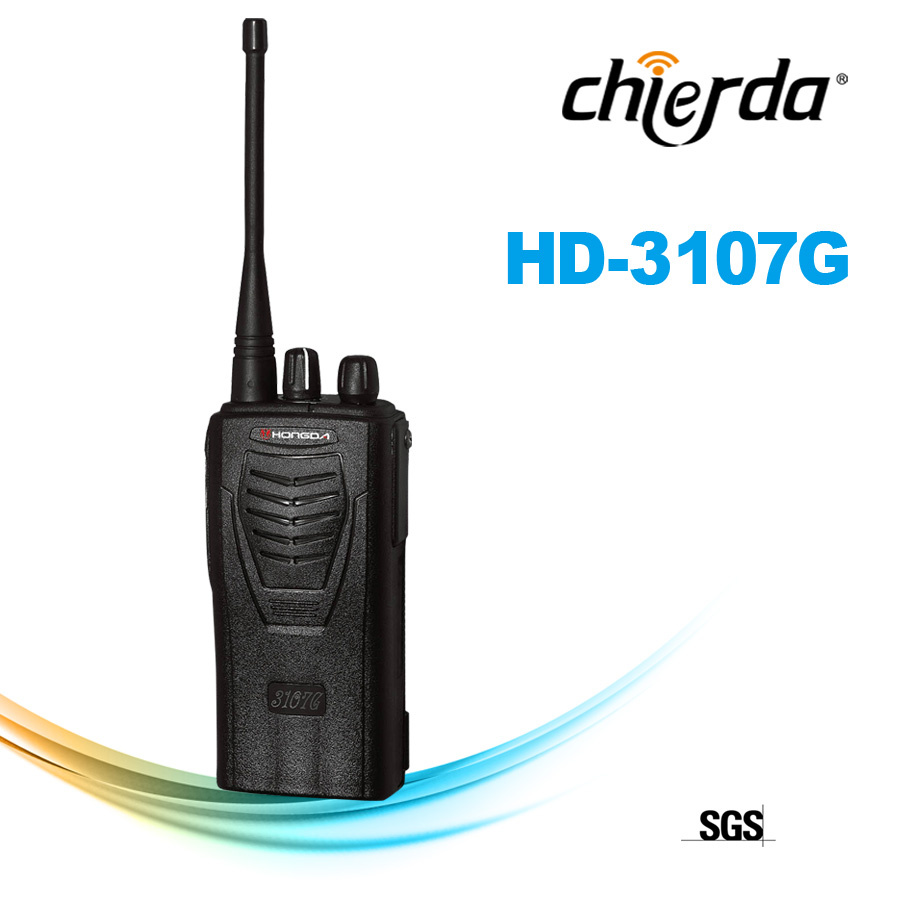

Strong and Durable handheld two way radio with FCC Approval (HD-3107G)
Company Information
Quanzhou Chierda Electronic Telecom Co., Ltd., which is in Quanzhou, Fujian, China. With 20 years development, we have produced developed & marketed intercom, transceiver, two way radio, walkie talkie and related accessories. Now we have rich experienced R&D walkie-talkie engineers, and skilled two way radio technicians and workers!
Product Description
FCC Approval Two Way Radio, High Signal Penetrating
1. Frequency Range : UHF400-480MHz
2. Channels: 16
3. Output power: 5W
4. VOX Hands-Free Function
5. Monitor Function
6. Wide/Narrow Band Selection
7. High/Low Power selection
8. Urgent Alarm Function.
9. Channel spacing: 5,6.25, 10,12.5,20,25,30,50KHz
10. Busy Channel Lockout
11. CTCSS/DCS
12. Battery Save Mode
13. Low Battery Warning
14. Talk Range: 3-15KMS in opening area
15. PC programmable
FCC ID: WEN-HD083107G03
3. Standard Package Contains:
1 Radio,1 Battery,1 Antenna,1 Charger,1 Belt Clip,1 User's Manual
4. Note:
1)Please contact us at first time for bulk order, larger discount waits for you
2) Please be responsible for custom tax if your local custom charge some custom tax.
3) OEM service is offered, we can design packing box and logo mark as your requirement.
4) Sample time: If with our logo, within 5 days.
5) MOQ :2 for sample; 100 for mass production; 500 for OEM
6) Payment term: T/T, Western Union and PayPal
7) Warranty Information: 12 months for body radio; 6 months for accessories.
5. About us:
We do our best to produce excellent quality s and services. We hope we help you and are glad to become your faithful friends.
5.Shipment:
For fast delivery, usually bulk goods are shipped by DHL, UPS, FEDEX, EMS etc, and large quantities depend on Customer request.
Strong and durable handheld two way radio with FCC Approval (HD-3107G)
Technical Index
Model:Two Way Radio HD-3107G
Frequency Range
UHF400-480MHz
Rated Voltage
DC 7.2V
Memory Channel
16
Channel Spacing
12.5KHz/25KHz
Frequency Sensitivity
± 2.5PPM
Antenna Impedance
50Ω
Dimension
140*61*40.6mm
TRANSMITTER
Output Power
≥ 5W
Current
≤ 1.6A
Modulation Distortion
< 5%(300-3000Hz)
Maximum Frequency Deviation
≤ 5KHz
CTCSS Frequency Deviation
0.75KHz± 50Hz
Spurious Radiation
≤ 7uW
Modulation Mode
16KΦ F3E
Remanent Radiation
≤ -35dB
RECEIVER
RF Sensitivity
≤ 0.25uV
Silent Sensitivity
≤ 0.2uV
Audio Frequency Power
≥ 500mW
Audio Distortion
< 5%
Modulation Receiver Bandwidth
± 7KHz
Spurious Rejection
≥ 55dB
Selectivity
≥ 65dB
Intermodulation
≥ 60dB
Note: Specifications is adjusted for technology improvement.
Excuse for no further notice.
