Product Specifications

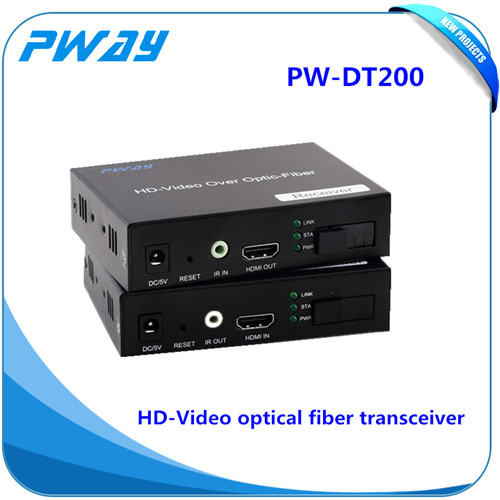

| Prod Model: |
PW-DT200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Video Maximum Pixel Clock: |
165MHz |
| Videomaximum Data Rate: |
6.75gbps |
| Video Resolution: |
1920X1080p@60Hz\4k*2k |
| Video Impedance: |
100 Res |
| IR Interface: |
3.5mm Earphone Seat |
| IR Signal Direction: |
Bidirectional |
| IR Frequency: |
20k-60kHz |
| Fiber Connector: |
Sc/FC |
| Fiber Type: |
Single Mode |
| Transmission Distance: |
Standard: 20km; Maximum: 80km |
| Application: |
IR |
| Color: |
Grey |
| Type: |
Optical Fiber |
| Connector: |
HDMI |
| Certification: |
ISO9001 |
| Material Shape: |
Metal |
| Brand: |
Pway |
Product Description
FEATURES:
transmits hdmi video and audio signals up to 20km over one fiber optic cable;
support video resolution up to 1920*1080p@60hz;
support ir transmission;
compliance with hdmi 1.3 and hdcp 1.2 standard;
high compatibility, can auto-match source and display device;
built-in automatic adjustment system, make the image smooth, clear and stable;
built-in esd protection system;
simple to install, plug and play;
Parameter | Description |
| Video | Standards | HDMI 1.3; HDCP 1.2 |
| Maximum pixel clock | 165MHz |
| Maximum data rate | 6.75Gbps |
| Resolution range | Up to 1920X1080P@60Hz |
| Connector | Female HDMI type A |
| Impedance | 100Ω |
| Infrared | Interface | 3.5mm earphone seat |
| Signal type | Digital |
| Transmission direction | Unidirectional |
| Carrier frequency | 38kHz |
| Optical fiber | Interface | SC/FC connector |
| Fiber type | Single Mode |
| Wavelength | 1310nm, 1510nm |
| Interface bandwidth | 6.25Gbps |
| Transmission distance | Standard: 20km; maximum: 80km |
| Other | Power supply | The power adapter: DC 5V/2A |
| Power dissipation | MAX 5W |
| Temperature | Operating: -5ºC ~ +70ºC |
| Humidity | Operating: 5% ~ 90% |
| Dimension | 113*80*28mm |
| The warranty | 1 year free warranty |
Pwaytek is a high-tech corporation specializing in research and development, manufacture and market of HD video transmission, video converter products which are commonly used for home security and monitoring of small to medium sized businesses.
We have a superior R & D team consisting of young experts who have engaged in the field of Network Digital Audio and Video products for many years. They have rich practical experience and strong sense of occupation respect, are working constantly with new technologies to ensure Pwaytek stand at the peak of progress.
The core of the Pwaytek product offering is its IP-based technology platform. Our chips are regarded as industry-benchmark core components within the network-management and communications and image-compression areas. The technology enables easy installation and provides compact and powerful solutions so that equipment can be rapidly and securely connected to virtually any wired or wireless network.
Mian Products:
HDMI Fiber Optic, DVI Fiber Optic, VGA Fiber Optic, SDI Fiber Optic, Optical KVM Series
HDMI Extender, DVI Extender, VGA Extender, SDI Extender
SDI Repeater, SDI Spliter, SDI TO HDMI, HDMI TO SDI,
SDI TO HDMI/CVBS, SDI TO HDMI/VGA, SDI TO YPbPr,
HDMI/VGA/CVBS TO SDI, SDI TO HDMI/VGA/CVBS
