Product Specifications
| Prod Model: |
HDE004 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| HDMI V1.3: |
40m, 1080p |
| Wireless Extendewireless Extende: |
Hdcp 1.2 |
| Full HD 1080p: |
50/60Hz |
| Certificates: |
CE FCC RoHS |
| HDMI 1.3 Input: |
Hdcp 1.2 Protocol |
| Color: |
White |
Product Description

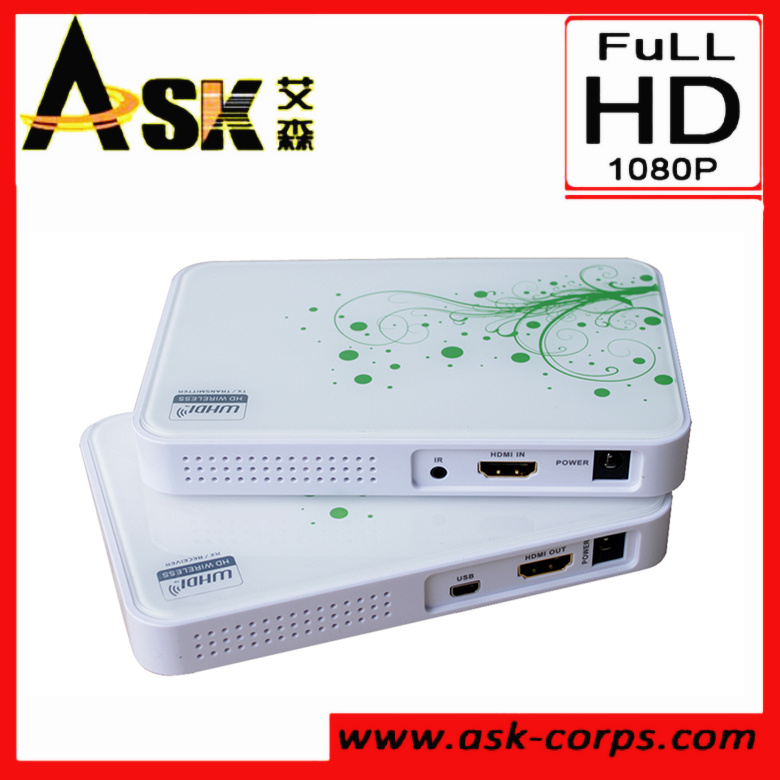

Wireless HDMI Extender
1. Reach 40m
2. Wireless transmission
3. 1080p/60Hz HDMI V1.3
4. No compression video format
5. Instant wireless HD AV transmission;
6. Transmission range in the vacancy indoor environment 30m;
7. Supporting the video HDMI interface at the maximum of 1080P60 Hz;
8. Supporting HDMI1.3 and HDCP1.2 protocols;
9. Supporting the EDID function;
10. Supporting the CEC function (for the receiving and display devices);
11. Supporting the IR extension transmission function;
12. Transmission power 12 dBm;
13. Supporting the point-to-point transmission function currently
14. Which can be expanded to the point to multi-point or multi-pointto multi-point
15. Transmission function;
16. Supporting the AES128-bit image encryption Function;
17. Supporting the reverse back-transmission channel at the maximum rate of 100 kbs;
18. Supporting OSD display;
19. Supporting WHDI 1.0 specification.
Technical Specifications
|
Items |
HDE004 |
|
Transmitter |
Transmission Frequency |
5.1~5.9GHz |
|
Frequency Stability |
± 4PPM |
|
Bandwidth |
40MHz |
|
Transmission Power |
≥ 12dBm |
|
Receiving Sensitivity |
≤ -75dBm |
|
System Latency |
≤ 1ms |
|
Sending/receiving channel |
4 channels for sending/1channel for receiving |
|
HD video protocol |
HDMI 1.3 |
|
HD video encryption protocol |
HDCP 1.2 |
|
Unobstructed Effective Range |
≥ 30m |
|
Power Supply |
5VDC |
|
Consumption Current |
2A 10% |
|
Dimensions (W x D x H) |
148 x 97 x 18 (mm) |
|
Approx. Weight |
440g (including the base) |
|
Receiver |
Receiving Frequency |
5.1~5.9GHz |
|
RF communication system |
MIMO |
|
Modulation mode |
OFDM |
|
Frequency stability |
± 4PPM |
|
Bandwidth |
40MHz |
|
Transmission Power |
≥ 15dBm |
|
Receiving Sensitivit |
≤ -65dBm |
|
System latency |
≤ 1ms |
|
Sending/receiving channel |
1channel for sending/4 channels for receiving |
|
HD video protocol |
HDMI 1.3 |
|
HD video encryption protocol |
HDCP 1.2 |
|
Unobstructed Effective Range |
≥ 30m |
|
Power Supply |
5VDC |
|
Consumption Current |
2A± 10% |
|
Dimensions (W x D x H) |
148 x 97 x 18 (mm) |
|
Approx. Weight |
436g (including the base) |
|
|
Operating Temperature |
-10 C~50 C |
|
Storage Temperature |
-20 C~80 C |
|
Operating Humidity |
15~85%RH |
