Product Specifications
| Prod Model: |
HDR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Torque: |
200-10000nm. |
| Rated Power: |
According to The Requirements of Customers |
| Input Speed: |
for Detalis, Pls Contact Us |
| Output Speed: |
for Detalis, Pls Contact Us |
| Model Number: |
Hjw Series |
| Ratio: |
180-13392 |
| Static Load: |
120 Kn |
| Dynamic Load: |
75kn |
| Manufacturing Method: |
Cast Gear |
| Toothed Portion Shape: |
Spur Gear |
| Type: |
Helical Gear |
Product Description
Product Description:

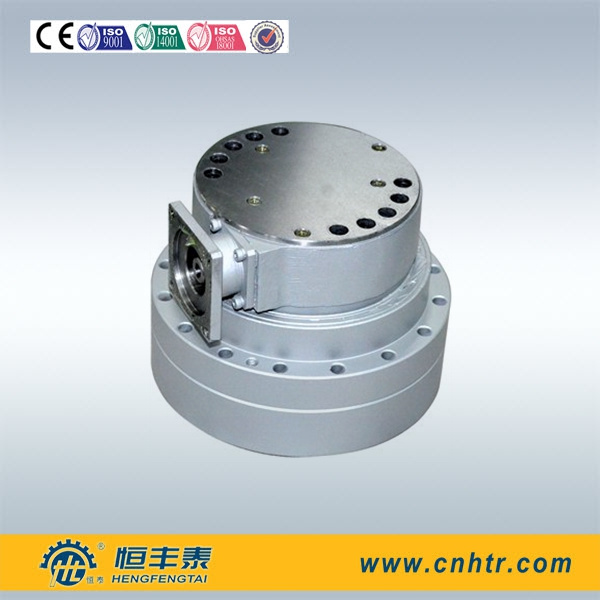

HJX series parabolic CSP reducer has their own proprietary intellectual property rights is derived by high precision worm gear and worm. HJX series parabolic CSP reducer combined horizontal transmission and pitching transmission in a gearbox, which adopts the drive principle of a high-precision gears and precision rolling gears, to accomplish full 360 tracking and accurate location.
Product Benefits:
1. Vertical and elevation transmission in the same housing with compact structure lead to high anti-overturning moment, with self-locking capacity.
2. Special backlash adjust design no need disassemble main components but with simple wrench and screw driver to adjust is OK.
3. Use high capacity lubricate no leakage.
Applications:
Widely applied for energy, military industry, aerospace, industrial automation and other transmission equipment industries, especially for solar thermal power generation and tracking system of heliostat, the sun tracking system of photovoltaic panels, radar tracking system etc.
Packaging
One piece packed in one small box, 7- 8 small boxes paced in one wooden carton with pallet
Test & Certification
Hengfengtai products passed rigorous performance test.
Certifications: CE, TUV, ISO9001, ISO14001
Company Information
Zhejiang Hengfentai Reducer Mfg. Co., Ltd was established in 1991, with the development of more than 23 years, we have accomplished the following achievements:
Main product: With gear reducer and gearbox products as leading, extend to Electrolytic aluminum equipments, Mixing equipments, Precision transmission equipments, Environmental protection equipments and so on large machinery equipments.
R&D: Participated in 863 National Plan, mainly responsible for industrial robot joint reducer, as well as solar tracking reducer.
Factory Scale: Currently 2 factory plants: Sanxi industry zone and Binhai industry zone, with totally 500 personnel, and advanced equipments & machines.
Welcome to visit our company!
