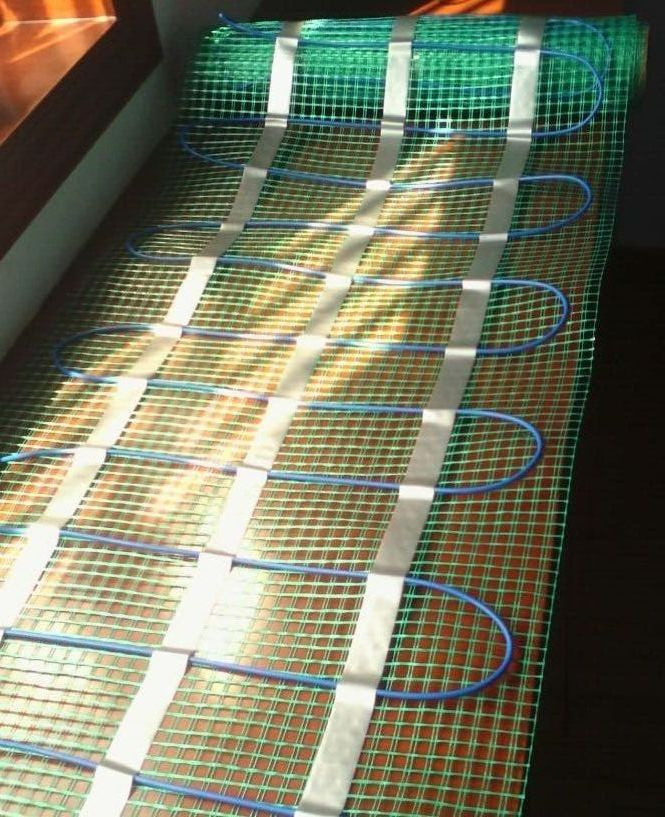

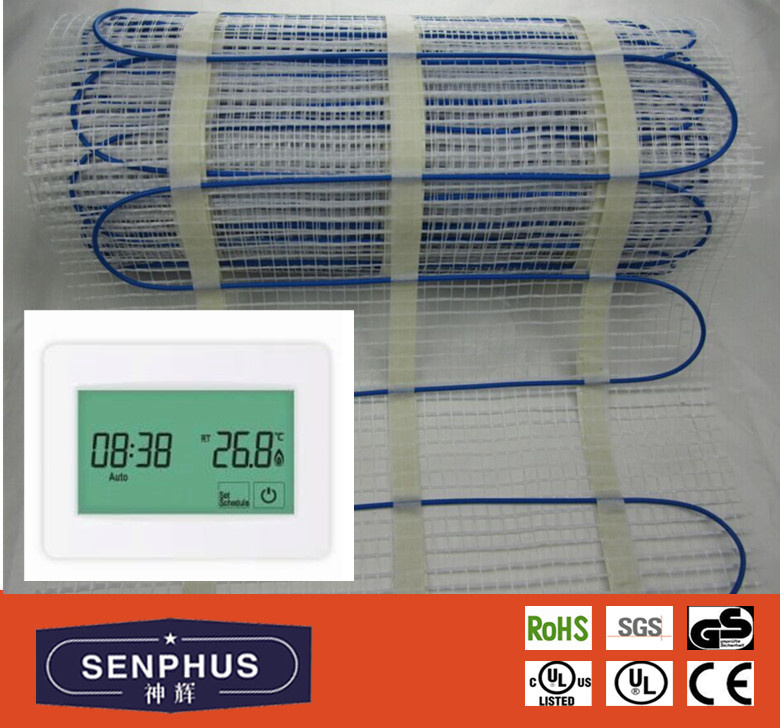

Heating Cable Mat
| Price: |
US $ 5/Piece |
| Trade Terms: |
FOB |
| Min Order: |
2/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
Product Specifications
| Prod Model: |
SHHM-200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1 to 15 Square Meter |
| Color: |
Blue |
| Thickness: |
1.5mm |
| Power: |
200W/Square Meter |
| Width: |
0.5m |
| Voltage: |
230V |
| Length: |
1 to 30m |
| Mat Material: |
Fiber Glass |
| Heat Source: |
Heat & Power Plant |
| Type: |
Underfloor Heating Mats |
| System Structure: |
Alloy Wire, Heating Wire,Mat |
| Heat Medium: |
Conduct Heat |
| Material: |
Copper Nickel |
Product Description
Heating Cable MatSenphus Heating Cable Mat, Since 2002 !
Senphus Enterprise concept: Sense the Warmth of Senphus and Enjoy Healthy Life !Whatever your room size or shape,Senphus offers the highest quality floor heating cable mats for every project.
Senphus Heating Cable Mat Specification| Type |
|
| Ohm | Mat size | M2 | Cable Length |
| V | W | Ω | m |
| m |
| SHHM-200-0.5M2 | 230 | 100 | 529 | 0.5X1.0 | 0.5 | 5.55 |
| SHHM-200-1.0M2 | 230 | 200 | 264.5 | 0.5X2.0 | 1 | 11.1 |
| SHHM-200-1.5M2 | 230 | 300 | 176.3 | 0.5X3.0 | 1.5 | 16.65 |
| SHHM-200-2.0M2 | 230 | 400 | 132.3 | 0.5X4.0 | 2 | 22.2 |
| SHHM-200-2.5M2 | 230 | 500 | 105.8 | 0.5X5.0 | 2.5 | 27.75 |
| SHHM-200-3.0M2 | 230 | 600 | 88.2 | 0.5X6.0 | 3 | 33.3 |
| SHHM-200-3.5M2 | 230 | 700 | 75.6 | 0.5X7.0 | 3.5 | 38.85 |
| SHHM-200-4.0M2 | 230 | 800 | 66.2 | 0.5X8.0 | 4 | 44.4 |
| SHHM-200-4.5M2 | 230 | 900 | 58.8 | 0.5X9.0 | 4.5 | 49.95 |
| SHHM-200-5.0M2 | 230 | 1000 | 52.9 | 0.5X10.0 | 5 | 55.5 |
| SHHM-200-6.0M2 | 230 | 1200 | 44.1 | 0.5X12.0 | 6 | 66.6 |
| SHHM-200-7.0M2 | 230 | 1400 | 37.8 | 0.5X14.0 | 7 | 77.7 |
| SHHM-200-8.0M2 | 230 | 1600 | 33.1 | 0.5X16.0 | 8 | 88.8 |
| SHHM-200-9.0M2 | 230 | 1800 | 29.4 | 0.5X18.0 | 9 | 99.9 |
| SHHM-200-10.0M2 | 230 | 2000 | 26.5 | 0.5X20.0 | 10 | 111 |
| SHHM-200-12.0M2 | 230 | 2400 | 22 | 0.5X24.0 | 12 | 133.2 |
| SHHM-200-15.0M2 | 230 | 3000 | 17.6 | 0.5X2.0 | 15 | 11.1 |
Note: Senphus Heating Cable Mat can be cut, but don't cut the heating wire.
Beijing Exhibition 2015.5.13 to 2015.5.15
Jiangyin Senphus Electrical Material Co., Ltd is a new Hi-tech enterprise of heating alloy, heating cable/mat, heating wire, silicone rubber heater, drum silicone rubber heater, thermostat, which is engaging in R&D, manufacture and sale.
We have our own alloy smelting factory, possessing first-class production and advanced research facilities, so that we guarantee the top quality of our products. We have already passed ISO9001 quality management system and achieved the examination report of National Center for quality Supervision & Test of Electric Wire & Cable, and gained the European Union CE certification, UL certificate, GS Certificate, electromagnetic radiation certification, SGS and REACH certification.
Heating cable/wire and temperature controller system are widely used in wind power blades, construction heating, pipeline heating, outdoor snow melting, soil heating field and so on. Silicone rubber heater are widely used in electrical household appliance, spaceflight, petroleum, metallurgy, military project, chemical, electric power, medical appliance, mechanism, outdoor communication, automobile, etc. Industry.
Our products have been exported to America and Europe, Africa, Southeast Asia, like USA, Canada, England, France, Holand, Poland, Peru, South Africa, Italy, Greece, Thailand, India, Hongkong, etc. More than thirty countries and areas.
Our company always persist in"reputation first, quality high and customers supreme" management ideal. We will use great products, competitive price, professional service to cooperate with you and gain win-win!
OEM is welcome! !
