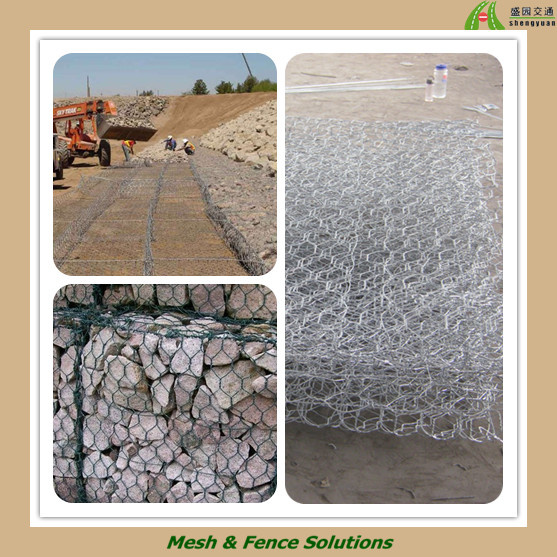

Gabion mesh
It is wire containers made of hexagonal wire netting. Wire diameter varies with the hexagonal nettings.
For hexagonal wire netting with no PVC coating, the wire diameter ranges from 2.0mm to 4.0mm.
For those PVC coated hexagonal wire netting, the outside diameter ranges from 3.0mm to 4.0mm.
The wire of the outside frame edge is one wire gauge thicker than the wire used for hexagonal wire netting.
Gabion mesh Features:
1. Economic. Just fill the stone into the gabions and seal it.
2. Simple installation. No special technology needed.
3. Weather proof under natural destroy, corrosion resistant.
4. No collapse even under big scope of deforming.
5. Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.
6. Good permeation can prevent the damage by hydrostatic.
7. Less transport freight. It can be folded together for transport and further installation.
Gabion boxes applications:
1. Control and guide of water or flood
2. Flood bank or guiding bank
3. Preventing of rock breaking
4. Water and soil protection
5. Bridge protection
6. Strengthening structure of soil
7. Protection engineering of seaside area
Our main products:
1. Wlded fence panel/ Wire mesh roll
2. Chain link fence
3. Euro fence
4. Temporary fence/Crowd control barrier
5. Gabions/Hexagonal wire netting
6. Field fence/Farm fence
More details, welcom to inquiring us.
|
Opening(mm) |
Wire Dia (mm) |
Wire Dia(PVC Coated)
Inner/outside (mm) |
Strands |
|
60x80 |
Ø2.0-2.8 |
Ø2.0/3.0-2.5/3.5 |
3 |
|
80x100 |
Ø2.0-3.2 |
Ø2.0/3.0-2.8/3.8 |
3 |
|
80x120 |
Ø2.0-3.2 |
Ø2.0/3.0-2.8/3.8 |
3 |
|
100x120 |
Ø2.0-3.4 |
Ø2.0/3.0-2.8/3.8 |
3 |
|
100x150 |
Ø2.0-3.4 |
Ø2.0/3.0-2.8/3.8 |
3 |
|
120x150 |
Ø2.0-4.0 |
Ø2.0/3.0-3.0/4.0 |
3 |
|
Standard Mesh And Wire Sizes |
Gabion Box Sizes |
Mattress Sizes |
|
Standard Mesh Size |
Wire Dia |
Selvage
Wire Dia |
Length
(m) |
Width
(m) |
Height
(m) |
Length
(m) |
Width
(m) |
Height
(m) |
|
60x80 |
2.0 |
2.7 |
1.0 |
0.5 or 1.0 |
0.5 or 1.0 |
3.0 |
2.0 |
0.17, 0.23 or 0.30 |
|
80x100 |
2.2 |
3.0 |
1.5 |
1.0 |
0.5 or 1.0 |
6.0 |
2.0 |
0.17, 0.23 or 0.30 |
|
100x120 |
2.7 |
3.4 |
2.0 |
0.5 or 1.0 |
0.5 or 1.0 |
|
|
|
|
|
|
|
3.0 |
1.0 |
0.5 or 1.0 |
|
|
|
|
|
|
|
4.0 |
1.0 |
0.5 or 1.0 |
|
|
|
