Product Specifications
| Prod Model: |
ADS-1106 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Hole Shape: |
Hexagonal |
| Mesh Size: |
12.7mm-100mm |
| Factory: |
More Than 20years |
| QC: |
Ccic |
| Quality Management: |
Ukas |
| Certification: |
ISO9001:2000 |
| Application: |
Decorative Mesh |
| Weave Technique: |
Plain Weave |
| Surface Treatment: |
Galvanized; PVC Coated |
| Material: |
Q195 |
| Weave Method: |
Straight Twist, Reverse Twist, Double Twist |
Product Description

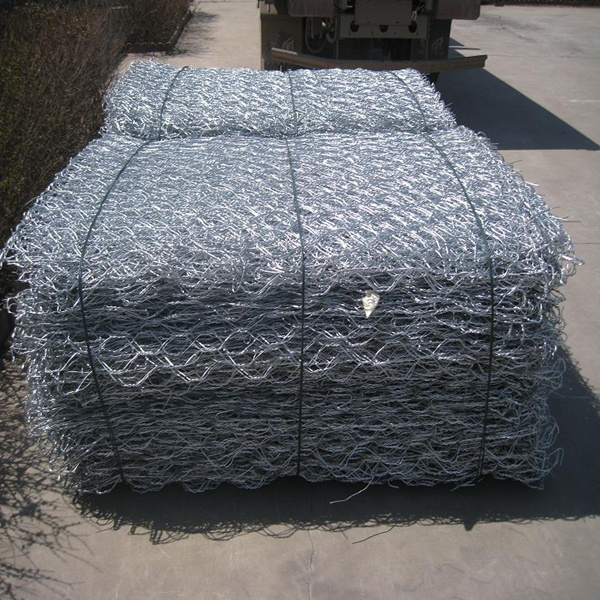

Hexagonal Wire Mesh
Material: Low carbon iron steel wire, stainless steel wire or brass wire.
Weaving Pattern: Straight twist, reverse twist, double-direction twist.
Processing: Twisted before galvanized, weaving after galvanized. Electro galvanized, hot dipped galvanized, plastic coated, stainless steel, PVC coated, etc.
Application: Hexagonal wire mesh is used for feeding chicken, ducks, gooses, rabbits and the fence of zoo. Also used in machinery protection, fences for road, railway, etc. It can be made into box to hold stones and sand to protect the bank, hillside, bridge and other related civil engineering against the flood.
|
Galvanized hex. wire netting in normal twist(width of 0.5m-2.0m) |
|
Mesh |
Wire Gauge(BWG) |
|
Inch |
mm |
|
3/8'' |
10mm |
27,26,25,24,23,22,21 |
|
1/2'' |
13mm |
25,24,23,22,21,20 |
|
5/8'' |
16mm |
27,26,25,24,23,22 |
|
3/4'' |
20mm |
25,24,23,22,21,20,19 |
|
1'' |
25mm |
25,24,23,22,21,20,19,18 |
|
1-1/4'' |
32mm |
22,21,20,19,18 |
|
1-1/2'' |
40mm |
22,21,20,19,18,17 |
|
2'' |
50mm |
22,21,20,19,18,17,16,15,14 |
|
3'' |
75mm |
21,20,19,18,17,16,15,14 |
|
4'' |
100mm |
17,16,15,14 |
|
Galvanized hex. wire netting in reverse twist (width of 0.5M-2.0M) |
|
Mesh |
Wire Gauge(BWG) |
Reinforcement |
|
Inch |
mm |
(BWG) |
Width(ft) |
Strand |
|
1'' |
25mm |
22,21,20,18 |
2' |
1 |
|
1-1/4'' |
32mm |
22,21,20,18 |
3' |
2 |
|
1-1/2'' |
40mm |
20,19,18 |
4' |
3 |
|
2'' |
50mm |
20,19,18 |
5' |
4 |
|
3'' |
75mm |
20,19,18 |
6' |
5 |
Shenzhou AnDeSen Wire Fencing Co., Ltd is a big wire mesh manufacturer located in Shenzhou of Hebei Province. AnDeSen is specialized in wire drawing, galvanizing and wire mesh weaving. With over 200 sets of production machines, first-class technology, excellent management system and R & D capability, we have won trust and praises from many customers.
AnDeSen mainly produces All kinds of galvanized wire, soft annealed wire, PVC coated wire, Welded Wire Mesh, Hexagonal Wire Mesh, Stainless Steel Wire Mesh, Razor Barbed Wire, Fence, Chain Link Fence, Window Creening, Square Wire Mesh, common nails, roofing nails as well as other wire processed products for a wide applications in petroleum, mine, construction and other industries. Our products are well sold in China and exported far to the USA, Europe, Japan, the Middle-East and Southeast Asian countries.
We try to build our own brand and reputation with choice products, and have set up a complete system from raw material purchasing, production, inspection, packing and delivery to after-sales services. We sincerely hope to build good business relationship with you on the basis of mutual be
