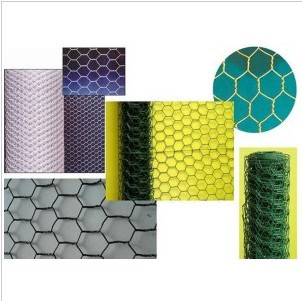

Hexagonal wire netting is also known by the name of chicken mesh.
Specifications
Hexagonal Wire Netting
Mesh: 1/2, 1.2, 3 inch, etc.
Roll: 0.5/0.6/0.8/1.0/1.2/1.5/1.8/2.0mx 50m
Material: Soft and hard metal wire including:
Hot dip galvanized/ electro galvanized wire
Black Annealed wire
P. V. C. Coated wire
Brass wire
Stainless steel wire.
Copper wire
Roll size: In rolls with 30 m/50m's length and variable heights
Also can produce as per customer request
Packing: Water-proof or plastic film with or without print paper, then packed on pallet
Or bulk in container.
Applications:
Structural purposes
Heat insulation (ceilings, boilers...)
Pipe wrapping (petrolium)
Isolation purposes
Indicator & protection for underground cables and pipes
Windows Protection
Light fencing applications
Fishing
Poultry farms
Sugar industry
Rubber industry
And many other fields of use
Special requirements of wire mesh, diam. & material can be produced on request
| Specification | Wire Diameter(BWG) | Remark |
| 1.5CM1/2" | 22 | Max. roll width: 2m; single or double edge |
| 24 |
| 2CM3/4" | 20 | Max. roll width: 2m; single or double edge |
| 22 |
| 24 |
| 1.8CM5/8" | 21 | Max. roll width: 4m; single or double edge |
| 23 |
| 25 |
| 2.5CM1" | 19 | Max. roll width: 2m; straight or reverse twisted |
| 21 |
| 23 |
| 3CM1.25" | 19 | Max. roll width: 2m; straight or reverse twisted |
| 21 |
| 4CM1.5" | 18 | Max. roll width: 2m |
| 20 |
| 22 |
| 5CM2" | 18 | Max. roll width: 2m |
| 20 |
| 22 |
| Weaving Type | Weaving before electro galvanizing; weaving before hot-dip galvanizing; weaving after galvanizing |
| Remark | Hexagonal mesh (green, white or grey); enameled hexagonal mesh (green) |
Anping Yunde Metal Co., Ltd is located at the metal wire mesh production base in Anping County name as China Wire and wire mesh Town. Our main products are Expanded Metal, Perforated Metal, Bar grating Welded Wire Mesh, Crimped Wire Mesh, Stainless Steel Wire mesh, Chain Link Fence.
