Product Specifications
| Prod Model: |
CT-1(Gabion) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Products Name: |
Hexagonal Wire Netting |
| Mesh Hole: |
80*100mm 100*120mm 70*90mm |
| Color Options: |
Green Black Grey or Customize |
| Selvedge: |
2.5mm-4.5mm |
| Certificate: |
ISO9001 ,CE |
| Products Life: |
70-80years |
| Advantage: |
Cheap Price, Fast Delivery |
| Export Markets: |
Global |
| Service: |
Best Service |
| Sample: |
Free |
| Surface Treatment: |
Galvanized |
| Material: |
Galvanized Iron Wire |
| Application: |
River Bank Protection |
| Weave Method: |
Anti-Twist |
| Weave Technique: |
Plain Weave |
Product Description
Product Description

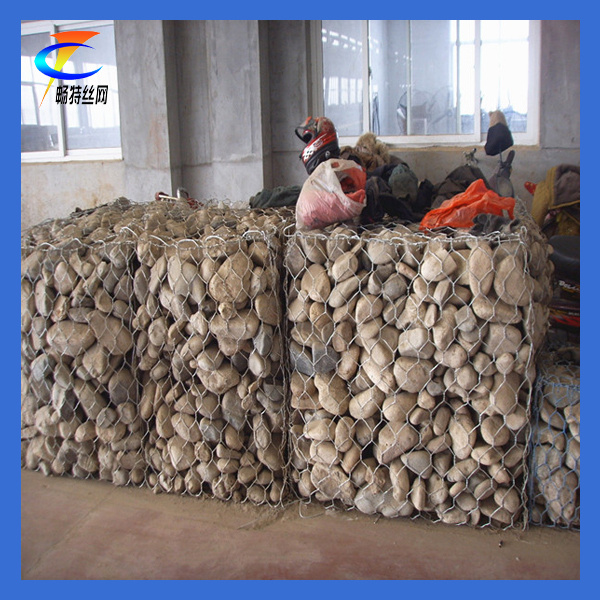

Hexagonal Wire Netting for Gabion
Basket, gabion mesh, gabion cage according to standard EN10223-3
They are widely used in the following field: Control and guide of water or floodFlood bank or guiding bankPreventing of rock breakingWater and soil protectionBridge protectionStrengthening structure of soilProtection engineering of seaside area.
1)Material: Low carbon iron wire
2)Wire diameter: 2-4mm
3)Size: 1*1*1m, 2*1*1m, 3*1*1m
4)Color: Silver. Gray, green, black
5)Gabion Weaving: Straight twist, reverse twist, double twist
6)Types of gabion box: Weaving gabion box&Welding gabion box
Features of gabion box
Economic. Just fill the stone into the gabions and seal it. Simple installation. No special technology needed. Weather proof under natural destroy, corrosion resistant. No collapse even under big scope of deforming. Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment. Good permeation can prevent the damage by hydrostatic. Less transport freight. It can be folded together for transport and further installation.
Surface treatment: Hot-dipped galvanized, galvanized aluminum alloy or PVC coated, etc.
Gabion wire mesh can be used for slope support, foundation pit, mountain rock hanging meshshotcrete, slope vegetation (Lv Hua), railway highway isolation fence, it also can be made into the cage, mesh pad, used for protection against erosion of rivers, dams and seawall, reservoir, river closure for net cage. The most serious disaster scour riparian river is thedamage, flooding caused flooding, leading to life and property suffered great losses and a large amount of soil erosion. Therefore, in dealing with the above problems when applying the ecological grid lattice structure has become one of the best solution, it can make theriver bed and bank receive permanent protection.
|
Galfan Gabions Mesh Standard |
|
Opening (mm) |
Wire Diameter(Metal Wire) (mm) |
Wire Diameter / Inner/Outside(mm) |
Strands |
|
60X80 |
2.0-2.8 |
2.0/3.0-2.5/3.5 |
3 |
|
80X100 |
2.0-3.2 |
2.0/3.0-2.8/3.8 |
3 |
|
80X120 |
2.0-3.2 |
2.0/3.0-2.8/3.8 |
3 |
|
100X120 |
2.0-3.4 |
2.0/3.0-2.8/3.8 |
3 |
|
100X150 |
2.0-3.4 |
2.0/3.0-2.8/3.8 |
3 |
|
120X150 |
2.0-4.0 |
2.0/3.0-3.0/4.0 |
3 |
