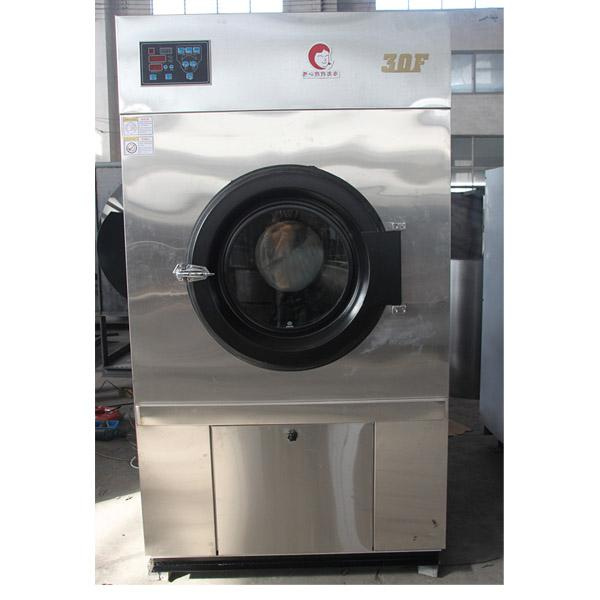

Hg Drying Machine
Price: |
US $ 3000/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
The features of the HG drying machine
1.The drum is made of high-quality stainless steel.
2.It is used to dry all kinds of textile after extraction. It is mostly selected in hotels, universities, railway stations, hygienic system and a large amount of small dry-cleaning stores.
3.The drum runs clockwise and anti-clockwise during the drying so that the garments can run up and down. Hot air through the drum can make the garments fluffy and soft.
4.The heater is made of pure red copper tube and Al plate. Heat efficient.
5.The drum is made of high grade stainless steel with long service life and no anti-corrosive.
6. It drives smoothly with minimal noise.
7.Can be heated by electric, steam and gas.
Technical parameter:Model | HG-15 | HG-25 | HG-35 | HG-50 | HG-70 | HG-100 |
Loading weight(kg) | 15 | 25 | 35 | 50 | 70 | 100 |
Basket volume(mm) | 760x650 | 960x650 | 960x880 | 1060x1000 | 1200x1000 | 1500x1000 |
Motor power(kw) | 0.55 | 0.75 | 0.75 | 1.1 | 1.1 | 2.2 |
Fan power(kw) | 0.55 | 0.55 | 0.75 | 1.1 | 1.5 | 1.5x2 |
Heated power(kw) | 14 | 20 | 32 | 35.2 | _ | _ |
Rated voltage(v) | 380 | 380 | 380 | 380 | 380 | 380 |
Steam pressure(mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
Steam consumption(kg) | 50-60 | 80-90 | 110-130 | 150-180 | 200-230 | 240-260 |
Dimensions(mm) | 850x1200x1800 | 1060x1200x1970 | 1060x1550x1970 | 1160x1660x2200 | 1420x1500x2330 | 1550x1750x2400 |
Installation size | 800x760 | 1020x770 | 1020x1100 | 1265x1000 | 1365x1050 | 1550x1600 |
Weight(kg) | 320 | 350 | 400 | 480 | 550 | 800 |
Model | HG-15 | HG-35 | HG-50 | HG-70 | HG-100 |
Loading weight(kg) | 15 | 35 | 50 | 70 | 100 |
Basket volume(mm) | 760x650 | 960x880 | 1060x1000 | 1200x1000 | 1500x1000 |
Motor power(kw) | 0.55 | 0.75 | 1.1 | 1.1 | 2.2 |
Fan power(kw) | 0.55 | 0.75 | 1.1 | 1.5 | 1.5x2 |
Heated power(kw) | 14 | 32 | 35.2 | _ | _ |
Rated voltage(v) | 380 | 380 | 380 | 380 | 380 |
Steam pressure(mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
Steam consumption(kg) | 50-60 | 110-130 | 150-180 | 200-230 | 240-260 |
Dimensions(mm) | 850x1200x1800 | 1060x1550x1970 | 1160x1660x2200 | 1420x1500x2330 | 1550x1750x2400 |
Installation size | 800x760 | 1020x1100 | 1265x1000 | 1365x1050 | 1550x1600 |
Weight(kg) | 320 | 400 | 480 | 550 | 800 |
Prod Model: |
HG-15; HG-25; HG-30; HG-35; HG-50; HG-70; HG-100 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
The Material: |
Use High Quality Electrical Components |
Washing Capacity: |
15kg;30kg;35kg;50kg;70kg;100kg |
Brand: |
Ouyu |
The rain washing machinery manufacturing Co., Ltd. - Shanghai type washing machine from the original semi-automatic washing machine, semi-automatic washing machine, dewatering machine, dryer. To today's automatic type and elution machine through about 300 years, the current automatic washing has become the mainstream of the market products.
Equipment classification
Washing machinery include: Washing machine, dryer, dry cleaners, folding machine, ironing machine, dryer, etc
1, dry cleaners, dry cleaners include the use of different solvents, such as, four chlorine PVC dry cleaners, bromide carbon dry cleaners,
Oil dry cleaners, liquid carbon dioxide dry cleaners, fluorine, dry cleaners, etc., the above all kinds of dry cleaners according to its technical index is different, can be divided into open dry cleaners, totally enclosed dry cleaners and the fifth generation of dry cleaners.
2, washing machine, including a washing machine, dryer and water elution dry machine continuous tunnel washing machine, and its integrated automatic washing tunnel system. Water elution dry machine according to its different performance can be divided into fixed gravity and full suspension.
3, dryers, including exhaust air dryers, composite duct dryers, intelligent dryer, etc. Exhaust air dryer is according to its different structures can be divided into the top flow type and at the bottom of the suction type two kinds. According to the state of air duct can be divided into axial air duct and meridional duct type.
4, ironing machine, including direct hot ironing machine, drum groove heat roller ironing machine, universal machine, light powder machine, like finishing machine various specialized clothing ironing machine, and so on.
5, folding machine, including general folding machine, folding machine for special purpose, folding conveyor, laminated machine, etc.
6, auxiliary machinery, including ironing platform, scouring machine, small steam generator, transport machinery and so on.
