High Accuracy Digital Superficial Hardness Tester Rockwell (SHR-45C)
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
Product Specifications
Prod Model: |
SHR-45C |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Preliminary Test Force: |
3kgf |
Test Force: |
15kgf(147.1n),30kgf(294.2n),45kgf(441.3n) |
Dwell Time: |
Adjustable 1-60s |
Hardness Indication: |
Digital LCD Display |
Resolution: |
0.1hr |
Loading Control: |
Automatic |
Data Output: |
RS232/Printer |
Dimension(Lxwxh): |
520 X215 X700mm |
Max Height Of Specimen: |
175mm |
Instrument Throat: |
165mm |
Type: |
Rockwell Hardness Tester |
Measuring Range: |
HRB |
Application: |
Metal |
Standard: |
ISO |
Product Description

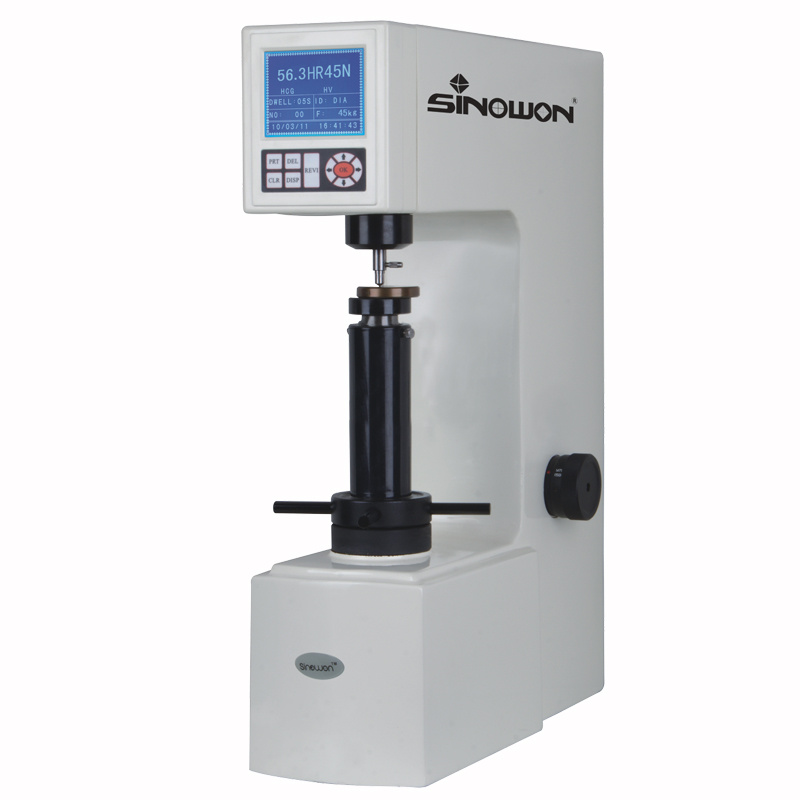

Vexus SHR-45C is a half automatic and intelligent hardness testing machine, except to lift up the anvil to touch the specimen and select the test force:
15Kgf(147.1N), 30Kgf(294.2N) and 45Kgf(441.3N) in hand-knob manually, the other operations are entirely automatic.
The testing force, the process of loading, dwell and unloading, the hardness testing value, and the corresponding converted scale are displayed on LCD screen automatic.
Vexus SHR-45C system will remind the operator to select the corresponding testing force and indenter after scales choosing, and the automatic hardness testing and digital 0.1HR resolution display avoids the man-made error and enhance the measuring accuracy.
Vexus SHR-45C force knob adopts the metall material to replace the plastic material, it improves the instrument using-life greatly.
Accessory Test Anvil
![](/proimages/44f3j00raUEDfsyTTYS/high-accuracy-digital-superficial-hardness-tester-rockwell-shr-45c-.jpg)

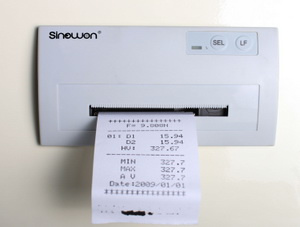

Printer
![](/proimages/44f3j00gEfaIpSljQYZ/high-accuracy-digital-superficial-hardness-tester-rockwell-shr-45c-.jpg)

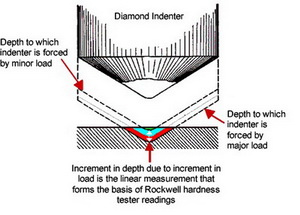

The Rockwell test consists of measuring the additional depth to which a carbide ball or diamond penetrator is forced by a heavy (major) load beyond the depth of a previously applied light (minor) load (SET point).
The minor load is applied first and a SET position is established on the dial gauge or displacement sensor of the Rockwell tester. Then the major load is applied. Without moving the piece being tested, the major load is removed and, with the minor load still applied, the Rockwell hardness number is automatically indicated on the dial gauge or digital display.
![](/proimages/44f3j00uTGtPIKEWQUj/high-accuracy-digital-superficial-hardness-tester-rockwell-shr-45c-.jpg)
The diamond penetrator is used for testing materials such as hardened steels and cemented carbides. The carbide ball penetrators, available with 1/16 inch, 1/8 inch, 1/4 inch, and 1/2 inch diameter, are used when testing materials such as steel-copper alloys, aluminum and plastics to name a few.
Rockwell testing falls into two categories: Regular Rockwell testing (e.g., C and B scales) and Rockwell superficial testing (e.g., 30 N and 30 T scales).
High Rockwell hardness numbers represent hard materials and low numbers soft materials.
Specifications: |
Product Name | Digital Superficial Rockwell Hardness Tester |
Model | Vexus SHR-45C |
Code# | 811-231 |
Rockwell Scales | HR15N,HR30N,HR45N,HR15T,HR30T,HR45T |
Preliminary Test Force | 3Kgf(29.42N) |
Test Force | 15Kgf(147.1N),30Kgf(294.2N),45Kgf(441.3N) |
Dwell Time | Adjustable 1-60s |
Hardness Indication | Digital LCD Display |
Resolution | 0.1HR |
Loading Control | Automatic |
Data Output | RS232/Printer |
Hardness Conversion | HRC,HRB,HRA,HK,HV,HBW |
Max. Height Of Specimen | 175mm |
Instrument Throat | 165mm |
Dimension(LxWxH) | 520 x215 x700mm |
Packing Dimension | 630 x440 x960mm |
Power supply | AC 220V/50Hz;AC110V/60Hz |
Gross/Net Weight | 120Kg/90Kg |
Execution Standard | ISO 6508 , ASTM E18 , JIS Z2245 , GB/T230 |
Standard Delivery: |
Standard Delivery | Code# | Standard Delivery | Code# |
Instrument Main Body | 811-231 | Ø1.588mm Steel Ball | 811-421 |
Hardness Block HR30T | 811-671T | Mini-Pinter | 811-831 |
Hardness Block HR15N | 811-661N | Ø 150mm Flat anvil | 811-541 |
Hardness Block HR30N | 811-671N | Ø 40mm V-shape Anvil | 811-511 |
Ø1.588mm Ball Indenter | 811-411 | Weight 1 | 811-741 |
Power Cable | 811-801 | Weight 2 | 811-751 |
Accessories Box | 811-831 | Weight 3 | 811-761 |
Qualified Certificate | Vexus SHR-45C | Instrument Manual | Vexus SHR-45C |
Optional Accessories: |
Optional Accessories | Code# | Optional Accessories | Code# |
1/8" Steel Ball Indenter | 811-431 | 1/8" Steel Ball | 811-441 |
1/4" Steel Ball Indenter | 811-451 | 1/4" Steel Ball | 811-461 |
1/ 2" Steel Ball Indenter | 811-471 | 1/2" Steel Ball | 811-481 |
100mm Flat Anvil | 811-531 | Small Flat Anvil | 811-501 |
