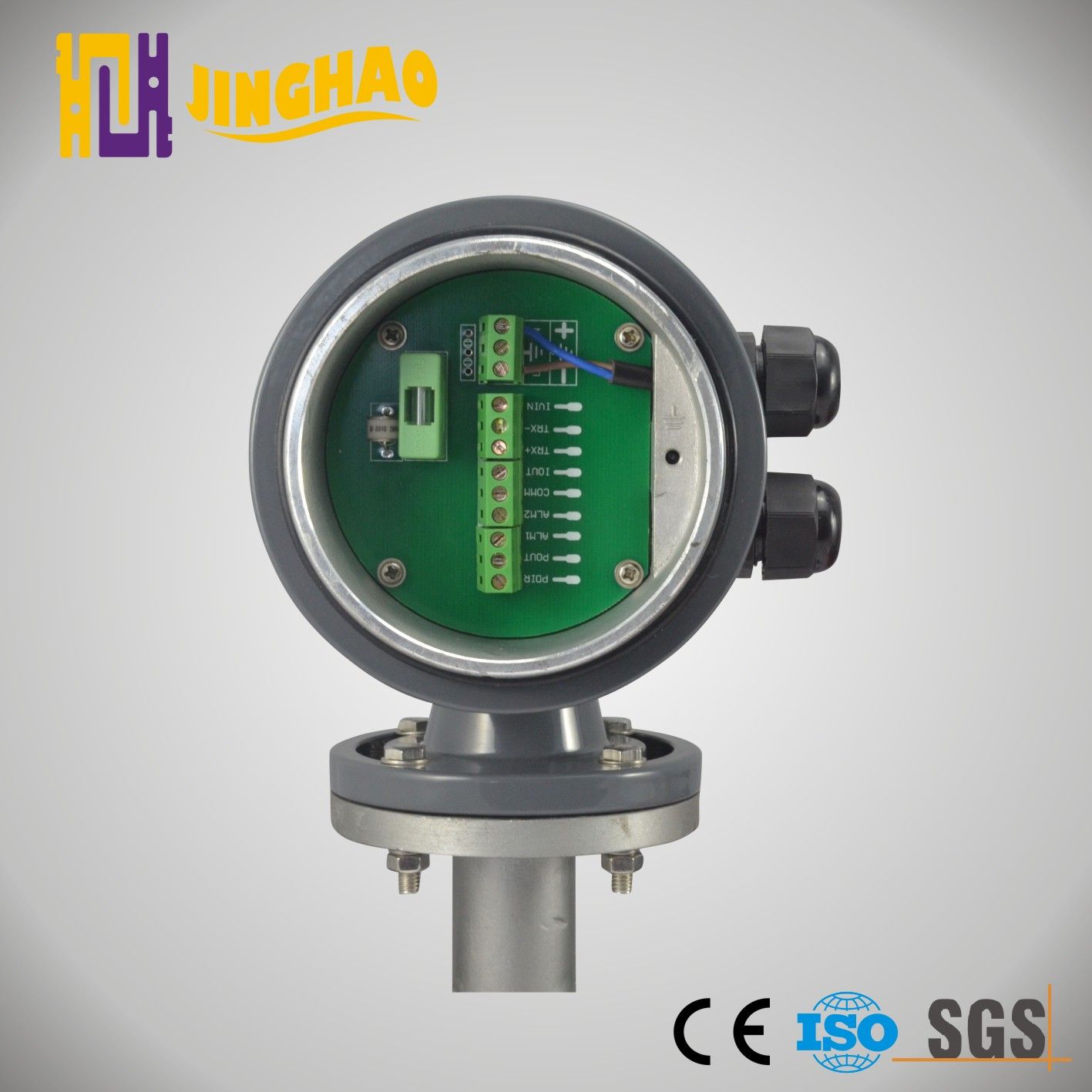

High Accuracy Water Electromagnetic Flowmeter (JH-DCFM-SS)
Price: |
US $ 350/Piece |
Trade Terms: |
FOB,CIF,CIP |
Min Order: |
1/Piece |
Pay Type: |
T/T,Paypal,Western Union |
Electromagnetic flowmeter
Measuring Principles:
The measuring principle of electromagnetic flowmeter is based on the electromagnetic induction law of Farady. The sensor is mainly composed of measuring tube with isolate lining, a pair of electrodes installed by penetration of the measuring tube wall, a pair of coils and iron core to produce working magnetic field. When the conductive fluid flows through the measuring tube of the sensor, the voltage signal in direct proportion to the average flow velocity of the fluid will be inducted on the electrodes. The signal is amplified and treated by the transmitter to realize various display functions.
Main Applications:Electromagnetic flowmeter can be used to measure the volume flow of conductive fluid in a closed pipeline. It is widely applied in the flow measurement and control in the fields of chemical and petroleum industry, metallurgy industry, water and waste water, agriculture and irrigation, paper making, food and beverage industry and pharmaceutical industry. Features:-Large choice of liner materials like 316L,F4, PTFE, F46, Fs and rubber.
-DN 6 to DN2000 covers a wide range of pipe size. A variety of liners and electrodes are available to satisfy different flow characteristic.
-Electric conductivity of medium can be used for detection of product change.
-No additional pressure loss electromagnetic flowmeter.
-No moveable parts and long working life.
-Site digital LCD displays instantaneous flow, accumulative flow, flow rate.
-Various output method, like 4-20mA, 0-5V, RS485 and pulse.
-Compact, split and plug-in types optional.
-Change the grounding as the third electrode.DN | 10mm~~2000mm |
PN | PN10 , PN16 , PN25 , PN40 , PN63 , PN100 , PN160 , PN250 , PN420 |
Electrode material | SS316L |
Lining material | PTFE ,FS ,rubber or customize |
Medium tem | 0~70°C , max is 180°C |
Shell material | carbon steel |
Protection grade | IP65 , IP67 and IP68 |
Connection | all applys(flange & screw thread) |
Converter technical data:
Current output | 4~20Ma |
Frequency output | pulse : High level=external power supply-1V External volts≤30 V Low level ≤ 0.5V Load current ≤ 50 mA Max.frequency output :5KHz . Frequency of pulse output: 0~5Hz . |
Display | With 8digit LCD display |
Display unit | Instantaneous flow units : m 3 /h , m 3 /m , m 3 /s , L/h , L/m , L/s , G/h , G/m , G/s . Total flow units: m 3 , L , G . |
Communication | MODBUS protocol ( optional ) or HART ( optional ) |
Protection grade | IP65 |
Power supply | 220 V AC +20/-60% , 50/60 Hz , 24 V DC +50/- 25% , max.10VA |
EMC radiation standard | EN 61326-1 : 2006 (BS EN50081-1) |
EMC anti-jimming standard | EN 61326-1: 2006 (BS EN50082-1) |
CE security | EN 61010-1 : 2001 |
Ambient temp. | 5~55°C |
Ambient humidity | <85 % r.h. (non co n densation) |
Prod Model: |
JH-DCFM-SS |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Connection: |
Flange |
Output: |
Pulse+4-20mA |
Lining Materia: |
PTFE |
Electrode Materia: |
Ss316L |
Body Material: |
Ss304 |
Power Supply: |
220V |
Model: |
Integrated Type |
Accuracy: |
?à0.2-0.5% |
Main Application: |
Acid |
Sensor: |
Tube/Flange |
Type: |
Electromagnetic Flow Meter |
Measuring Media: |
Liquid |
Measuring Principle: |
Electrical Principles |
Size: |
Dn10-2000 |
