Product Specifications
| Prod Model: |
HD-607 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Temperature Range: |
-40 Degree to 150 |
Product Description

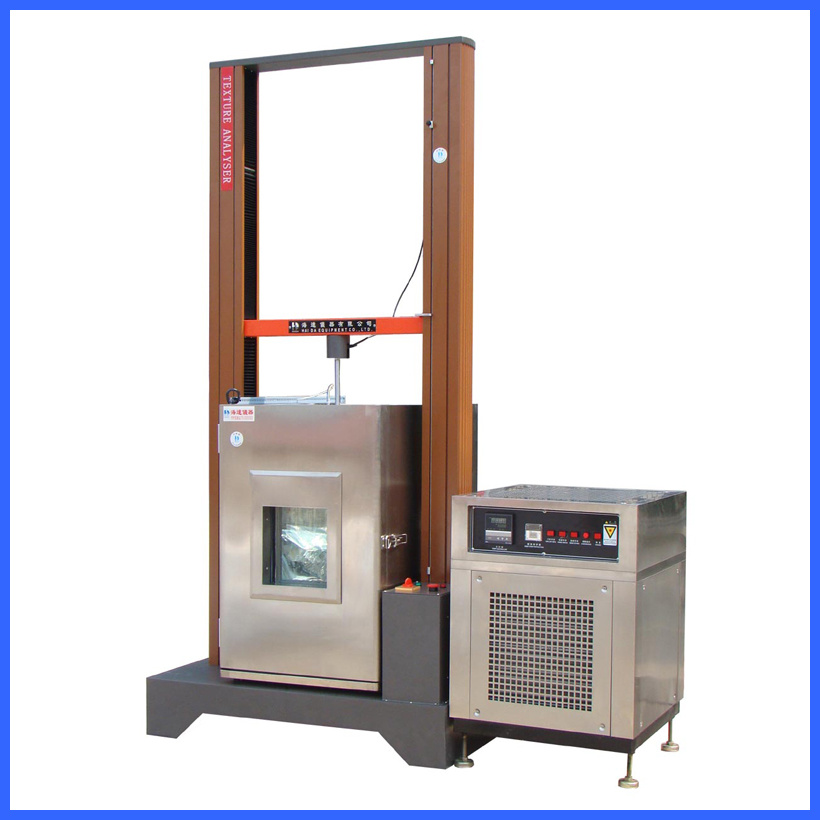

High and Low Temperature Tensile Strength Testerr with Temperature applies to tension, tearing, peeling force and adhesion test for many materials. And it is with build-in printer, can print the testing date, time, maximum, average and minimum value.
Computer control:
1. It adopts windows format, the setting of parameter is in dialog box.
2. The software is with three languages: Simple Chinese, Traditional Chinese and English.
3. You can set the report format as you like; And you can choose to see the curve between time and displacement, strength and displacement and time and strength.
4. It has several measuring units, and can be changed.
5. It has the function of automatic returning and calibration; Testing function Of sampling automatically and manually; Function of automatic magnifying to reach A graphic with suitable size.
6. The testing speed can be customized by requirements.
7. It has the functions of defining testing method automatically and calculating.
8. It can generate testing report automatically, and print out in A4 paper with curve or save in word format.
Advangates compared with the other tensile strength tester:
It can simulate the environment through adjusting the high-low temperature control chamber, to test the ultimate tensile strength of the material under different temperature.
|
Mode |
HD-607 |
|
Capacity (optional) |
2, 5, 10, 20, 50, 100, 200, 500, 1000, 2000kg |
|
Unit (Switchable) |
G, KG, N, KN, LB |
|
Load Resolution |
1/100, 000 |
|
Load Accuracy |
< ± 0.5% |
|
Stroke (exclude the grips) |
400 500 600 mm (can be adjusted higher by requirements) |
|
Test speed |
0.1-500 mm/min Selectable |
|
Effective Width |
400 mm |
|
Operation Mode |
Controlled by PC |
|
Weight (exclude the grips) |
130 Kg |
|
Display |
PC (can be programmed any of the customer' s data ) |
|
Motor |
AC Servo Motor |
|
Dimension(L× W× H)-Main Unit |
1200× 600× 1500cm |
|
Dimension of the testing space |
400× 400× 700mm |
|
Testing width |
40cm ( can be widened by requirements) |
|
Power |
1#, 220V, 10A |
|
Rotation method |
high precision ball screw rod |
|
Fixture |
can be customized stretching and compressing fixture, each one set |
