High Capacity and Effective Tire Shredder Mill / Rubber Cracker/Rubber Crusher
| Price: |
US $ 30000-50000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |

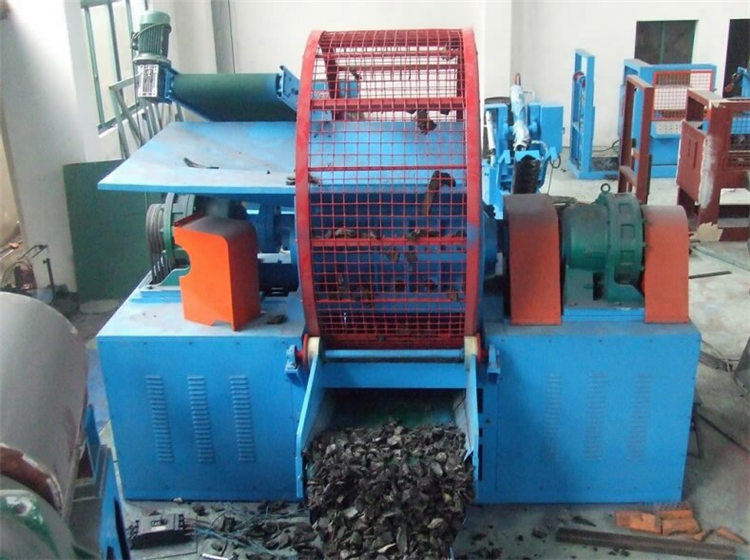

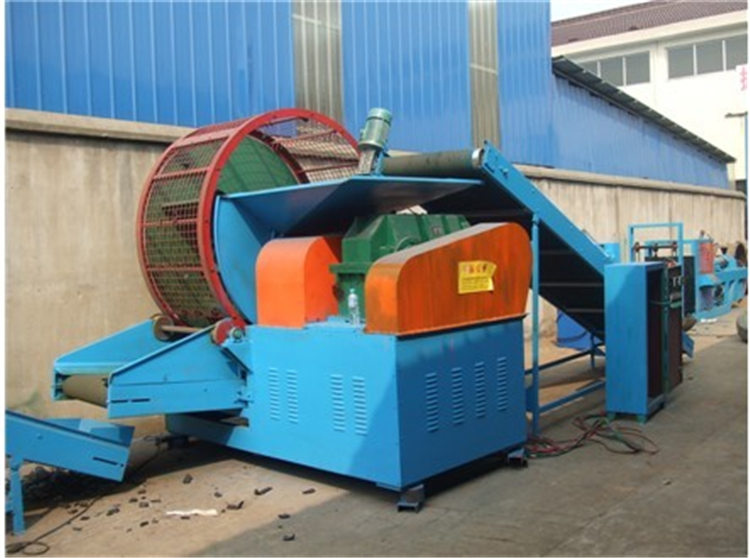

Car/Truck tire shredder
This product is our company introduces the advanced technology research and absorbing and second generation product. At the general temperature, can be put directly into the tyre antrum coarse crushing into 50 * 50 block, so the next rotating can grind into 10-30 meshes tagma or wire and fiber separation equipment.
Feature:
This machine is a compact structure, advanced technology, low energy consumption, high efficiency, smashing off the test room for the structure, maintenance is particularly convenient; tools with carbide surfacing technology, high hardness, high wear resistance, and repeated repair using, so has a longer service life; rotary screen for the lattice structure of steel mesh, blanking large area, enabling the screening of qualified rubber. After the partition of large tires can achieve the effect of the same!
Mechanical description;the tire of 800mm diameter and rubber ring can directly breaken into 50-300 mmof plastic block.
Principle:
Motor drive hydraulic motors through planetary gear reducer with a strong cutting torque, at gerenal temperature, continuous cutting, pressing, frustrated, after grinding, crushing the material into the cutting room the initial cut into blocks, the automatic sorting sieve screen, broken qualified material output, the rest of the larger materials with other materials to be broken again with the broken back to cutting room, and so forth until the output of qualified circulation of materials.
|
Technical Data |
|
Model |
zps-800 |
zps-900 |
zps-1200 |
|
Input size |
Less than 800 |
Less than 900 |
Less than 1200 |
|
Discharge size |
30-300mm(adjustable) |
50-300mm(adjustable) |
|
Motor power |
22*2kw |
30*2kw |
55*2kw |
|
Dimension(mm) |
3280*1870*2900 |
1930*3500*2700 |
5200*2800*3500 |
|
Amount of waste tire |
0.8-1.2T/h |
1-2.5T/h |
1.5-3T/h |
|
Screen power |
3KW |
3KW |
5.5KW |
|
Main shaft speed |
19rpm |
19rpm |
16rpm |
|
Screen speed |
4rpm |
4rpm |
4rpm |
|

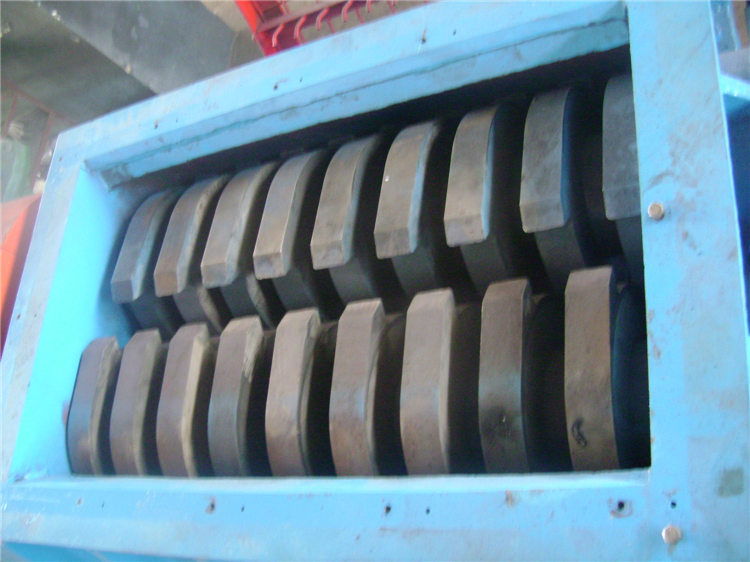

Number of blades |
18pcs, made of alloy steel, welded |
18pcs, made of alloy steel, welded |
25pcs, made of alloy steel, welded |
|
Gearbox |
harden gears, large torque |
|
Weight(T) |
5.8 |
6.5 |
15.6 |
| Prod Model: |
ZPS-800/900/1200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Tire Machinery |
| Type Of General Rubber Machinery: |
Granulating Machine |
| Type Of Tire Machinery: |
Cycle Tire Machine |
| Usage: |
Car/Truck Tyre Shredder |
Qingdao Eenor SCIENCE&TECHNOLOGY Co., Ltd is a professional production of rubber machinery company, has the independent production companies and import and export corporation. The company has the abundant technical force and rich production experience. Our main products: Plate vulcanizer, open mixing mill, mixer, tire vulcanizing machine, rubber cutting machine, rubber extrusion machine, rubber tile vulcanizing press, tyre crusher etc. Complete sets of equipment are: Ordinary conveyor belt production line, waste tyre reclaimed rubber powder production line. We can also according to the customers request; Design and manufacture all kinds of standard rubber machinery and equipment.
My company's products have passed the certification of the various, such as: Plate vulcanizing machine has passed the SGS certification, scrap tire rubber powder production equipment certified by BV certification (France). Product best-selling more than 30 provinces and regions, and exported to southeast Asia, the Middle East, Africa, Europe and the America and other 20 shelves and regions.
Our Company Motto: "THE HONESTRY IS THE ROOT, A PROMISE IS A PROMISE" the enterprise idea, adhere to market-oriented, providing customers with advanced products and quality services. Mr kIMSUN PANG(Chairman) together with all staff warmly welcome customers at home and abroad to the company to negotiate, guidance, my company is willing to first-class technology, first-class service, first-class quality, sincerely service for you.
