Product Specifications
| Prod Model: |
3WZ-700B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
ISO |
| Method Type: |
Automatic |
| Application: |
Hardware Spraying Equipmen |
| Condition: |
New |
| Self Propelled Boom Sprayer: |
Agricultural Sprayer |
| Volume: |
700L |
| Type: |
High-Performance Low-Pressure Spray Equipment |
Product Description
Specification:

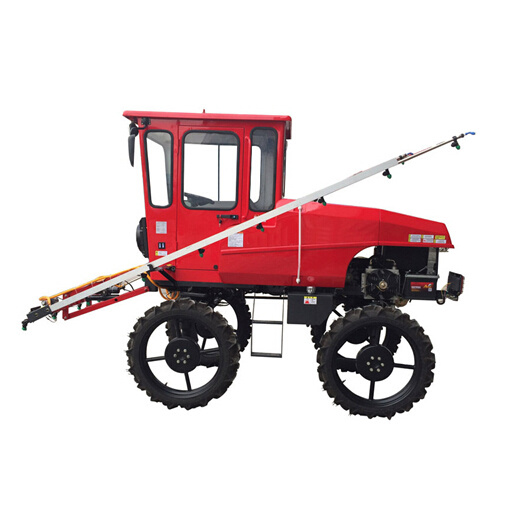

1.High clearance self-propelled boom sprayer and driving management machine is a kind of agricultural machinery used for comprehensive field management of wheat, soybeam,cotton and other crops, driving operation and has lots of advantages such as easy operation, comfortable, flexible, high production efficiency and so on.
2.Imported high-powered engine with sufficient reserved power.
3.Hydraulic power steering mechanism is convenient to use and can reduce the labor intensity of drivers. As choice for different users. four-wheel steering and two-wheel steering can be exchanged by operation the control switch on the control panel.
4.The boom lift and contraction are realized by the electric telescopic cylinders, simple structure and easy to operate.
5.Teejet,a special spray system from the United States, 110 fan spray nozzle, thin mist, even spraying and good control effect.
| Model | 3WZ-700B |
| Overall dimension size | overall dimension mm | 3750×1722×2750 |
| Axle distance (mm) | 1566 |
| ground distance (mm) | 810 |
| wheel base (mm) | 1200 | 1400 |
| Whole machine weight (KG) | 950 |
| Engine | Model | 3M78 |
| Type | In-line three water-cooling four-stroke diesel engine |
| Discharge capacity (L) | 1.123 |
| Rate power (kW/r/min) | 12.5/2400 | 16.2/2600 | 15.5/2800 | 16.5/3600 |
| Fule tank capacity (L) | 20 |
| Start type | Electric |
| Drive system | Type | All-wheel-drive/round synchronous turning |
| Drive type | Hydraulic power steering |
| Spindle speed series | HST vice transmission (CVT) + two level (high speed gap) |
| Speed (km/h) | High speed: 10 or less work on 4 or less |
| Brake (brake and the parking sharing) | Wet multi-disc brake |
| Tire | 120/90-26(air pressure 250kpa) |
| Battery | 60 |
| Tank capacity (KG) | 700 |
| stirring type | Backflow mixing |
| Sprayer pump | model | 50 plunger pump |
| type | In-line three plunger |
| Speed r/min | 1200 |
| water regain (L/min) | 60 |
| maximum limit pressure (Mpa) | 2.5 |
| working pressure (Mpa) | 1.0~2.2 |
| Sprayer system | Boom type | Wings of three full electronic control lance |
| spraye type | Drip-proof fan nozzle |
| sprayer quantity | 16/18 |
| 4(2×2) |
| work width (m) | 10 |
| Nozzle height from the ground (mm) | 450~1800 |
