Product Specifications
| Prod Model: |
WZ30-25 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Backhoe Loader Engine: |
Cummins |
| Backhoe Loader Operating Weight: |
7600kgs |
| Backhoe Loader Bucket Capacity: |
1.0cbm |
| Backhoe: |
0.22cbm |
| Hoe Bucket Capacity: |
0.3cbm |
| Arm Lifting Time: |
6s |
| Max. Speed: |
20km/H |
| Max. Breakout Forcce: |
45kn |
| Rating Lifting Capacity: |
25kn |
| Quality: |
High Configuration |
| Walking Mode: |
Wheeled |
| Load And Unload Method: |
Front Discharge |
| Certification: |
ISO9001: 2000 |
| Condition: |
New |
| Type: |
Backhoe Loader |
Product Description

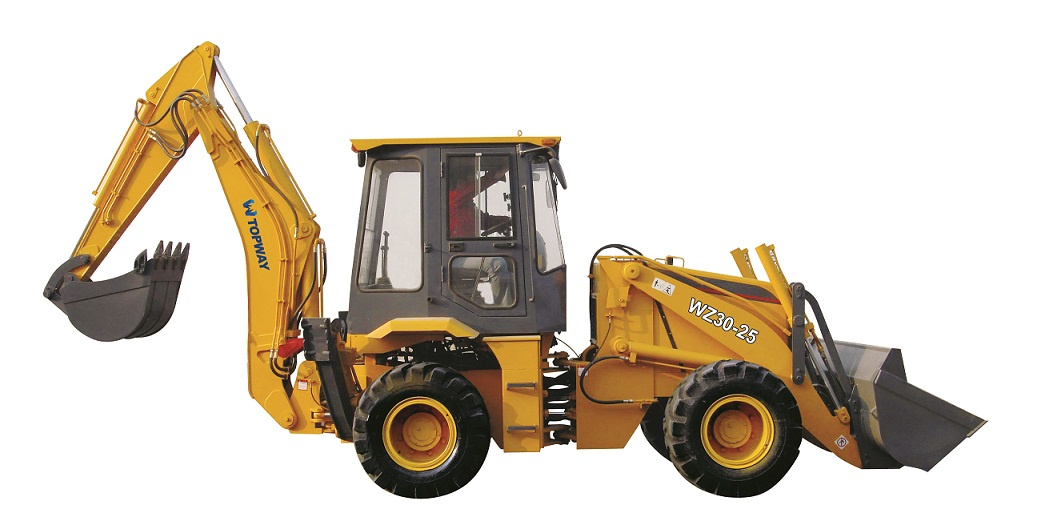

WZ30-25 Backhoe Main Features:
Adopt Cummins 4 cylinder engine with 74KW output power, turbo-charger, low emission and noise.
Full hydraulic steering system, with strong breakout force by 45KN, high work efficiency.
Four-wheel driving axle keeps power traction force. Four-wheel caliper disc brake and emergency braking protective ensure operation safe and reliable.
Widely used in construction, road and bridge building and maintenance, construction of farmland irrigation and water conservancy, pipeline placing and maintenance, gardening and forestry, road surface digging and breaking etc.
Optional equipments (Additional price needed)
Joy Stick / Air Conditioning
4 in 1 bucket
Quick Hitch
Grass-grasping
Log fork
Fork
Hydraulic Hammer
Snow blade
Hoe digging machine
Specification:
| Item | WZ 30-25 |
| Rating lifting capacity | 25KN |
| Bucket capacity | 1.0m³ |
| Hoe bucket capacity | 0.3 m³ |
| Excavating radius | 5645mm |
| Arm lifting time | 6s |
| The sum of three items | ≤11.5s |
| Max. speed | 20km/h |
| Min. turning radius | 5210mm |
| Max. Excavating depth | 4500mm |
| Max. Breakout force | 45KN |
| Max. Turing angle | 35° |
| Wheelbase | 2350mm |
| Tread | 1590mm |
| Tyre | Specification | 16/17-20 |
| Air pressure | Front 0.32Mpa Rear 0.28Mpa |
| Operation weight | 7.6t |
| Figure dimension | Length * width * height | 7002 * 2200 * 3786mm |
| Brake system | Air pressure of brake system | 0.6 - 0.8 Mpa |
| Service brake | Air-hydraulic combination |
| Type of torque converter | YJ280 |
| Transmission system | Stall torque ratio | 3.1 |
| Oil pressure of torque converter inlet | 0.25 - 0.3 Mpa |
| Type of gearbox | Planetary gear, power shift |
| Diesel engine | Model | Cummins 4BT3.9-C100 |
| Rating power | 74kw |
| Rating revolution | 2400r/min |
| Type of main transmission | Spiral bevel gear |
| Axles | Transmission ratio | 26 |
| Type of final drive | Single-spur planetary gear |
| Oil capacity | Fuel tank | 90L |
| Hydraulic system | 130L |
| Engine oil | 11.5L |
| Gearbox | 20L |
| Axles and final drive | 30L |
| Brake system | 1.5L |
Xiamen Topway Machinery Co., Ltd. is a modern enterprise located in Xiamen which is one of the biggest construction manufacture center in China. We are specialized in manufacturing and exporting construction machinery, such as wheel loader, block handling wheel loader, excavator, forklift, backhoe loader, motor grader, bulldozer and telescopic forklift. We always offer our respectable customer high quality products with reliable performance, competitive price and sincere services ensuring every project to be run on schedule.
Topway as a professional one-stop machinery equipment supplier, "QUALITY FIRST" is our philosophy, dedicated to provide reliable products with quicker delivery time, make prompt reaction for spare parts and after sales service, do what we promised, all these has earned a good reputation for us for being a trustworthy partner, and our products are widely accepted by oversea clients from Africa, Middle East, Asia and Latin America countries.
We sincerely hope to work with customers and friends around the world at different cooperation way, we hope to establish win-win co-operation relationship with you.
