Product Specifications
| Prod Model: |
D23ACM01A0001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Video Doorbell |
| Peephole: |
Peephole |
| Waterproof: |
Waterproof |
| Wireless: |
Wired |
| Style: |
One-to-Many |
| Brand: |
Ealink |
| Application Scope: |
Villa |
| Power Source: |
DC 11-13V |

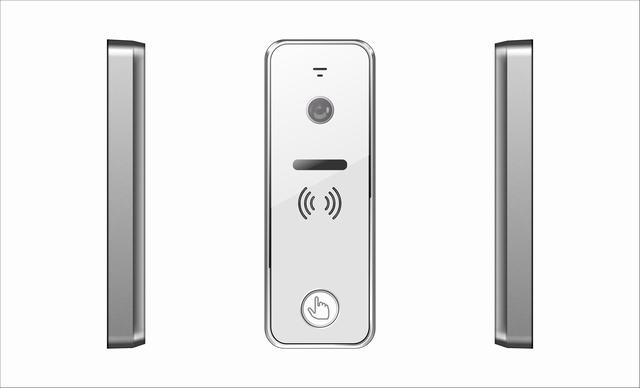

Product Description
Details Description:
Anti-oxidation, durable aluminum outdoor unit
High-quality circuit for clear voice
Electric-controlled lock release
4-wire connection
Assembly of outdoor unit: Surface/pit/corner mounting
Easy DIY installation
Connect 1 family
Features
1/4 High-Definition CMOS color camera , 60° angle of view Camera
Night Vision & Waterproof
Specification
1. High-Definition CMOS color camera
2. 800TVL Resolution
3. With night vision
4. Metal & Plastic case
5. Waterproof: IP66
6. 4 wires connection
7. Surface/pit/corner construction
8. Support lock control
9. Operating temperature: - 30 ºC to + 60ºC
10. Power: 11 - 13V
11.Dimension: 133.2*48*15.5mm
| Content | Details | Content | Details |
| Camera image sensor | 1/4" color CMOS-139 | Distance | 100m |
| Resolution | 700 TV lines | video | 1Vp-p 75Ω (output) |
| Viewing angle | 60° | Keys | Machinery buttons |
| Night vision | White light LED night vision | Subscribers quantity | 1 |
| Water-proof | IP66 | Working voltage | DC 10V - 15V |
| Wire connection | 4 wires (video power ground audio) | Working consumption ) | 2.5 W |
| Audio | 300mVp-p (1KHz , 300Ω) | Working temperature | -30ºC to +60ºC |
| Audio distortion | ≤3% | Storage temperature | -40ºC to +70ºC |
| Frequency response | 400-3.5K | Dimension | 133.2x48x15.5mm |
Shenzhen Ealink Technology Co., Ltd. is a specialized producer in video door phones, video intercom system, smart home products, and video surveillance products. Our factory is located in Bantian, Buji Town, Longgang District, Shenzhen, China.
High-tech, high quality, and high efficiency is Ealink's development strategy. Our main technical engineers are experienced in video door phones, smart home products, video surveillance products, LCD display and so many other tech fields. We successfully research and develop many models of video door phones and smart home products. Depending on our powerful research and development, we are sure to provide you highly cost-effective products.
The products' quality is our life. From the products' design, the materials' confirming, the suppliers' choosing, to the products' assembly and test, we keep our high requests and high standard. All of our products passed CE, FCC, and RoHS certification.
To produce the best user experience products is our goal. We will develop the real EASY products and the real DIY products to satisfy all the consumers.
Adhering to our capably, highly effective, firm will and the innovative spirit, we will be bigger and stronger in the developing opportunities of the increasing demand for the electronics of security and surveillance industry. We will maximally reach the win-win situation among customers, employees, society and shareholders. And we will do our best to make Ealink the respected and the top manufacturer in security and surveillance industry.
