Product Specifications
| Prod Model: |
TM04CAT6JKTL01+UTP180 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Gold Plate: |
6u'', 15u'', 30u'', 50u'' Is Avaliable |
| Usage: |
Laptop |
| Type: |
Wired |
| Support Network: |
Ethernet |
| Information Content: |
Data |
| Certification: |
UL |
| Condition: |
New |
Product Description

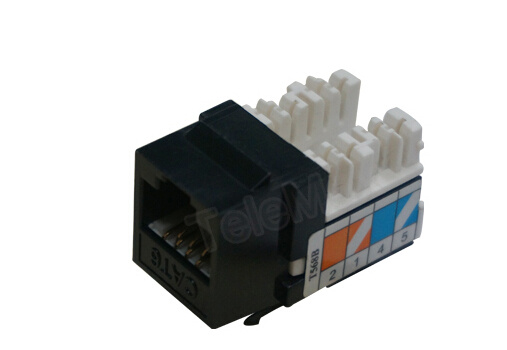

High quality Cat5e/cat6 rj45 keystone jack UTP in chinese wholesale
ELECTRICAL:
1.Voltage rating: 125 VAC RMS
2.Current rating: 1.5 AMP
3.Contact resistance: 20 Milliohms MAX
4.Insulation resistance: 100 Megohms MIN 500 VDC
5.Dielectric strength: 750 VAC RMS 60Hz, 1MIN
ENVIRONMENTAL:
1.Storage: -40°TO +70°
2.Operation: -10°TO +60°
Conform to TIA/EIA 568B CATEGORY 6A
Mates with modular plug conforming to FCC part 68, Subpart F.
MECHANICAL:
1.Housing material: QIMEI PC110 UL94-V0
2.Insert material: PBT+30%GF
3.PCB material: FR-4 T=1.6mm
4.Contact material: Phosphor bronze stamp PIN T=0.3mm
5.IDC Contact material: Phosphor bronze T=0.50mm WITH TIN PLATING
6.RJ45 JACK LIFE: 750 TIMES MIN
7.IDC LIFE: 200 TIMES MIN
8.WIRE: AWG 22~24
9.TIA CAT 6 PERM.LINK TEST: WORST PAIR NEXT MARGIN ≥3.0dB
10.Retentiveness of insertion structure: 50N 60±5s
Remark:
6U'', 15U'', 30U'', 50U'' is avaliable
Cat.6a is available
Packaging & Delivery
Packaging Details:
a.Packing Lengths: 305m/roll Other lengths available according to client's request.
b.Inner packing: Wooden reel, plastic reel, and paper reel available.
c.Outer packing: Carton box, pull out box, pallet available.
d.Other packing available according to client's reques
Delivery Detail:15 days after receiving T/T or L/C
