High Efficiency Drying Machine with Two Stove (HJ-II)
Price: |
US $ 4034/Set |
Trade Terms: |
CIF |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |

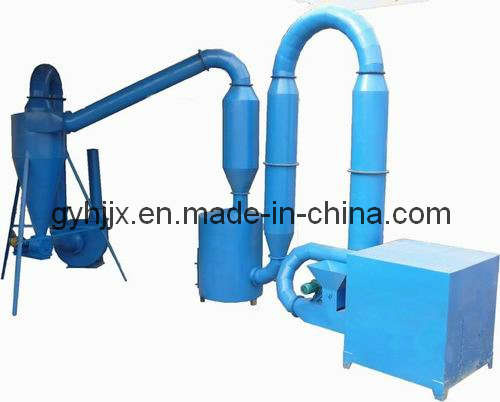

Drying is important before briquetting process. To get the superior quality of biomass briquettes with high density, it is necessary to control the moisture of material at 8-12% exactly. The selection of drying plant models depends on the original moisture content of raw materials. The moisture of wet materials is at 20-60%. The wood dryer is equipped one fuel boiler, inlet, steel pipe, exhaust blower (fan), cyclone. Wet materials are input into the hopper. And then hot air is flowing and going though the curving pipes and buffer (drying chamber) of dryer, thus wet materials is finished to dry, and the dried materials are expelled out by the exhaust blower (fan). This wood dryer reduces the moisture to 8-12% with the advantages of lower cost consumption and high efficiency.
Model |
HJ-I |
HJ-II |
HJ-III |
HJ-IV |
Number of motors |
1 |
3 |
3 |
3 |
Power |
4 |
7.5+0.75+0.75 |
11+0.75+0.75 |
15+0.75+0.75 |
Capacity |
300-400 |
500-600 |
700-800 |
1000-1200 |
Diameter of materials |
< 1mm & < 5mm |
< 1mm & < 5mm |
< 1mm & < 5mm |
< 1mm & < 5mm |
Gross Weight(kg) |
1100 |
2260 |
3080 |
3120 |
Consumption of wood waste(kg/h) |
10-15 |
15-20 |
20-30 |
25-35 |
Overall dimension( m )(length*width*height) (space required) |
7*2*4 |
9*2*4 |
12*2.5*4 |
12*2.5*4 |
Shipping size(m 3 ) |
(2 pcs)
1.5*1.06*1.1
2.44*1.22*1.55 |
(3 pcs)
1.23*1.24*1.73
1.5*1.06*1.1
2.44*1.22*2.1 |
(3 pcs)
1.23*1.24*1.73
1.45*1.42*1.41
2.45*1.72*1.91 |
(3 pcs)
1.38*1.3*1.8
1.6*1.5*1.5
2.53*1.8*2.0 |
Working Temperature |
400 ' C |
400' C |
400' C |
400' C |
Prod Model: |
HJ-II |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Color: |
as Your Need |
Design: |
Rational |
Quality: |
Good |
Power: |
7.5+0.75+0.75kw |
Output: |
500-600kg/H |
Diameter Of Raw Material: |
1-5mm |
Weight: |
2040/2260kg |
Operation: |
Easy |
Condition: |
Easy |
Perforamance: |
Perfect |
Structure: |
Air Flow Drier |
Movement Way: |
Agitation |
Heating Mode: |
Convective |
Operational Method: |
Continuous |
Operation Pressure: |
Atmospheric Dryer |
With the development of industrial and social economy, problems of the imbalance between supply and demand of traditional energy have become more and more serious. All people are laying their eyes on green bio-fuel business to produce renewable biomass fuel briquettes.
As a professional manufacturer in exporting charcoal/biomass briquette plants for agro-forestry wastes, we are leading a team working to exploit full set of various manufacturing and exporting briquetting equipments, including charcoal/biomass briquette machine, straw fuel briquette press, pellet mill, conveyor and grass chipper, etc. We have already got CE certificates for all of our equipments.
The raw materials can be sawdust, rice husk, rice straw, cotton stalk, cottonseed skins, wood, wood shavings, wood chips, mustard stalk, wheat straw, soybeans husk, coffee husk, sunflower husk, peanut-shell, sugar cane bagasse, maize stalk, palm fruit bunch, paddy straw, tobacco waste, bamboo dust and any other crop wastes.
Our principal products are: Charcoal/biomass briquette machine, Hammer Mill, Wood Crusher, Dryer, Carbonization Furnace, Belt/screw Conveyor, Automatic Proportioning Feeder, Grind mill, Grass chipper, Charcoal Briquette Press for pellet/tablet/powder and Straw fuel briquette machine/feedstuff pellet machine.
Benefiting from strategic partnership relations with many domestic and international purchased team, up to now the customers from more than 40 countries have purchased our equipments, such as France, Germany, South Korea, United Kingdom, USA, Russia, Sweden, Hungary, Saudi Arabia, Japan and so on.
We pay our closest attention to customers' complete satisfaction with high quality, swift delivery, prompt response, and especially cost efficiency.
Welcome to our factory to visit. And we will provide our best equipments and technologies at the reasonable price to meet your requirements.
