Price: | US $ 100/Piece |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 100/Set |
Pay Type: | L/C,T/T |
Frame sizes: 63-315 2) Rated power: 0.12-200kw
Rated voltage: 220/380v,380/660v
Frequency: 50Hz, 60Hz
Protection class: IP44 ,IP54,IP56
Insulation class: B,F,H
Materials: Cast iron, aluminum (FRAME 63-160)
EFF: EFF3, EFF2, EFF1, IE1,IE2,IE3
Poles: 2, 4, 6, 8
Cooling method: IC411 (total-enclosed fan-cooled type)
Mounting types: IMB3 ,IMB5,IMB35,IMB34,IMB14
Operating mode: S1
Connection: "Y" type for 3kW and downwards, "D"type for 4kW and upwards
Ambient temperature: -15C < θ < 40C
The altitude should be lower than 1, 000m
Relative humidity: Not higher than 90%
Special motors can be designed according to
Inner packing:
Frame 63-112: Foam boxes
Frame 132-315: Wooden boxes
Mounting details:
Schematic diagram | ||||
mounting type | B3 | B35 | B5 | V1 |
mounting Discribtion | frame with feet,end-shield without flange | frame with feet,end-shield with flange | frame without feet,end-shield with flange | frame without feet,end-shield with flange |
| H63-315 | H63-315 | H63-280 | H63-315 |
Farame size | Mounting Dimensions(mm) | Overall Dimension(mm) | |||||||||||||||||||
A | B | C | D | E | F | G | H | K | M | N | P | R | S | T | AB | AC | AD | HD | HF | L | |
80 | 125 | 100 | 50 | 19 | 40 | 6 | 15.5 | 80 | 10 | 165 | 130 | 200 | 0 | 12 | 3.5 | 165 | 175 | 150 | 175 | 185 | 290 |
90S | 140 | 100 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 165 | 130 | 200 | 0 | 12 | 3.5 | 180 | 195 | 160 | 195 | 195 | 315 |
90L | 140 | 125 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 165 | 130 | 200 | 0 | 12 | 3.5 | 180 | 195 | 160 | 195 | 195 | 340 |
100L | 160 | 140 | 70 | 28 | 60 | 8 | 24 | 100 | 12 | 215 | 180 | 250 | 0 | 15 | 4.0 | 205 | 215 | 180 | 245 | 245 | 380 |
112M | 190 | 140 | 70 | 28 | 60 | 8 | 24 | 112 | 12 | 215 | 180 | 250 | 0 | 15 | 4.0 | 245 | 240 | 190 | 265 | 265 | 400 |
132S | 216 | 140 | 89 | 38 | 80 | 10 | 33 | 132 | 12 | 265 | 230 | 300 | 0 | 15 | 4.0 | 280 | 275 | 210 | 315 | 315 | 475 |
132M | 216 | 178 | 89 | 38 | 80 | 10 | 33 | 132 | 12 | 265 | 230 | 300 | 0 | 15 | 4.0 | 280 | 275 | 210 | 315 | 315 | 515 |
160M | 254 | 210 | 108 | 42 | 110 | 12 | 37 | 160 | 15 | 300 | 250 | 350 | 0 | 19 | 5.0 | 325 | 325 | 255 | 385 | 385 | 605 |
160L | 254 | 254 | 108 | 42 | 110 | 12 | 37 | 160 | 15 | 300 | 250 | 350 | 0 | 19 | 5.0 | 325 | 325 | 255 | 385 | 385 | 650 |
180M | 279 | 241 | 121 | 48 | 110 | 14 | 42.5 | 180 | 15 | 300 | 250 | 350 | 0 | 19 | 5.0 | 355 | 360 | 285 | 430 | 430 | 670 |
180L | 279 | 279 | 121 | 48 | 110 | 14 | 42.5 | 180 | 15 | 300 | 250 | 350 | 0 | 19 | 5.0 | 355 | 360 | 285 | 430 | 430 | 710 |
200L | 318 | 305 | 133 | 55 | 110 | 16 | 49 | 200 | 19 | 350 | 300 | 400 | 0 | 19 | 5.0 | 395 | 400 | 310 | 475 | 475 | 770 |
Horizontal | vertical | |||
motor |
|
|
|
|
63 | 6201-2RZ/Z2 | 6201-2RZ/Z2 | 6201-2RZ/Z2 | 6201-2RZ/Z2 |
71 | 6202-2RZ/Z2 | 6202-2RZ/Z2 | 6202-2RZ/Z2 | 6202-2RZ/Z2 |
80 | 6204-2RZ/Z2 | 6204-2RZ/Z2 | 6204-2RZ/Z2 | 6204-2RZ/Z2 |
90 | 6205-2RZ/Z2 | 6205-2RZ/Z2 | 6205-2RZ/Z2 | 6205-2RZ/Z2 |
100 | 6206-2RZ/Z2 | 6206-2RZ/Z2 | 6206-2RZ/Z2 | 6206-2RZ/Z2 |
112 | 6206-2RZ/Z2 | 6206-2RZ/Z2 | 6206-2RZ/Z2 | 6206-2RZ/Z2 |
132 | 6208-2RZ/Z2 | 6208-2RZ/Z2 | 6208-2RZ/Z2 | 6208-2RZ/Z2 |
160 | 6209-2RZ/Z2 | 6209-2RZ/Z2 | 6209-2RZ/Z2 | 6209-2RZ/Z2 |
180 | 6211/Z2 | 6211/Z2 | 6211/Z2 | 6211/Z2 |
200 | 6312/Z2 | 6312/Z2 | 6312/Z2 | 6312/Z2 |
225(2P) | 6312/Z2 | 6312/Z2 | 6312/Z2 | 6312/Z2 |
225(4-8P) | 6313/Z2 | 6212/Z2 | 6313/Z2 | 6312/Z2 |
250(2P) | 6313/Z2/Z2 | 6313/Z1 | 6313/Z2 | 6313/Z1 |
250(4-8P) | 6314/Z1 | 6213/Z1 | 6314/Z1 | 6313/Z1 |
280(2P) | 6314/Z1 | 6313/Z1 | 6314/Z1 | 6313/Z1 |
280(4P) | 6317/Z1 | 6313/Z1 | 6317/Z1 | 6313/Z1 |
315(2P) | 6317/Z1 | 6317/Z1 | 6317/Z1 | 6317/Z1 |
315(4-8P) | NU319 | 6319/Z1 | NU319 | 6319/Z1 |

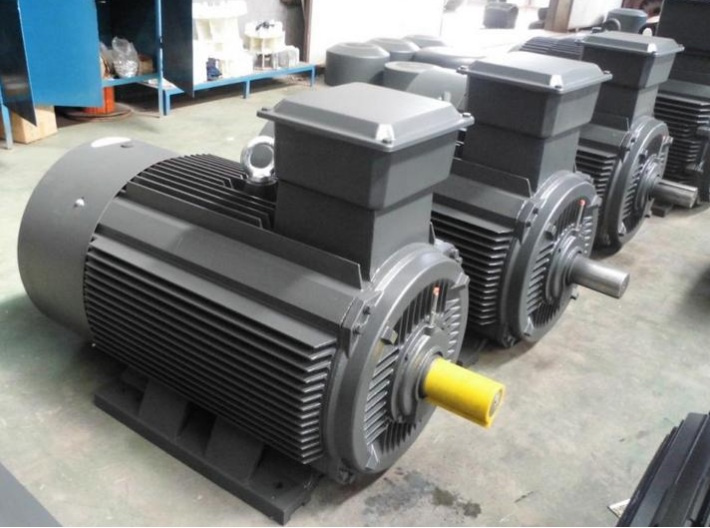

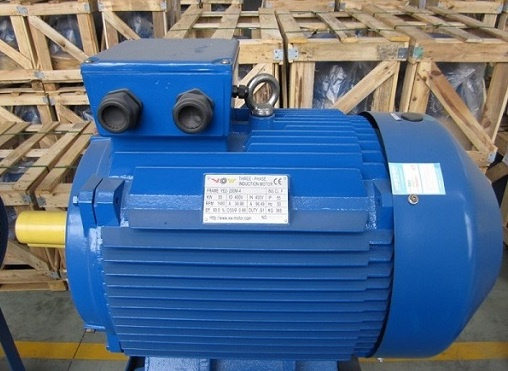

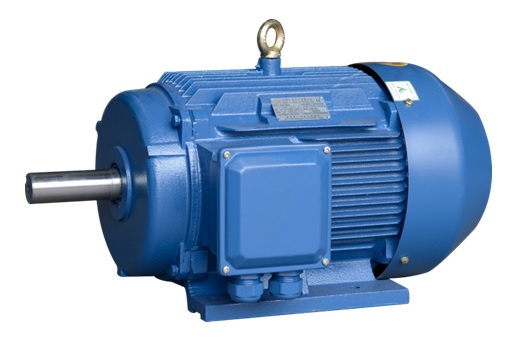

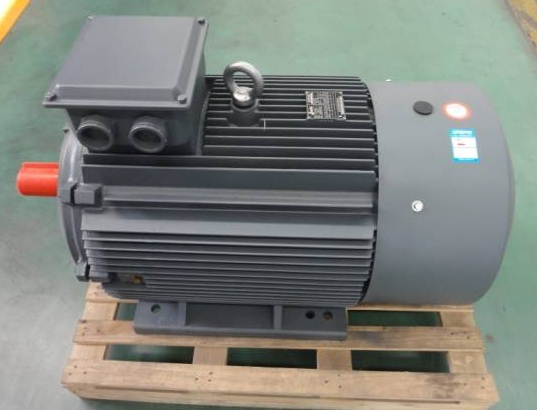

Prod Model: | YE2 MOTOR |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Rated Volt: 220/380V\380/660V: | Cooling Type: Ico141 |
Related Frequency: 50Hz(60Hz): | Operation Type: S1 |
Protection: IP44\IP55\IP56: | Insulation Class: B\F\H |
Species: | Y, Y2 Series Three-Phase |
Number Of Stator: | Three-Phase |
Operating Speed: | Constant Speed |
Application: | Power Tools |
Casing Protection: | Closed Type |
Rotor Structure: | Squirrel-Cage |
Brand: | Kapteeni |
