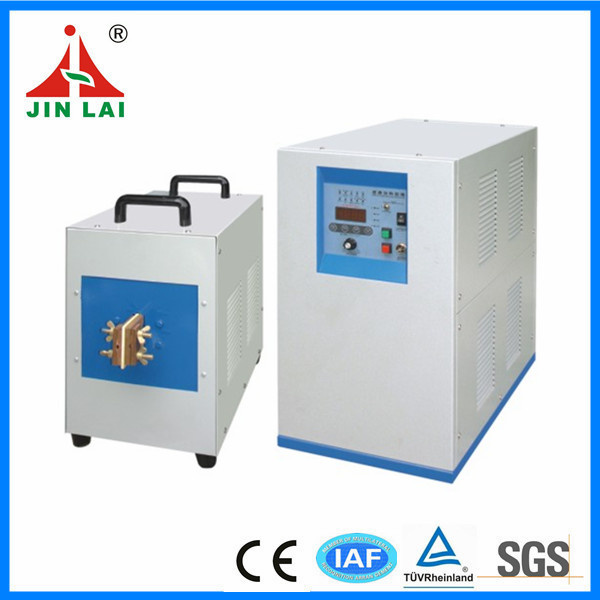

High Efficiency Induction Heating Machine Tool (JLCG-60/100KW)
| Price: |
US $ 100-10000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
Product Specifications
| Prod Model: |
JLCG-60/100KW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
ISO9001:2008 |
| Frequency: |
50-150kHz |
| Color: |
Blue |
| Including Parts: |
Generator,Transformer,Induction Coils,Cable |
| Application: |
Heating, Welding, Melting, Quenching etc. |
| Warranty: |
1 Year |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
Product Description
High Efficiency Induction Heating Machine Tool
1. UHF series have high frequency, able to heat materials of 0.1mm.
2. Resonant conversion of frequency technology: High efficiency, the power consumption is only 20%-50% of consumption of vacuum tube induction heating equipment.
3. MOSFET technology based, high frequency, light weight and small size.
4. Simple design: Easy installation, there is no need for regulation and convenient using.
5. Safe and Reliable: The equipment has no high voltage, operating safely.
6. Application: Heating, Welding, Melting, Quenching etc.
|
Model |
JLCG-60 |
JLCG-100 |
|
Input power desire |
3 phase 380V
50/60HZ |
3 phase 380V
50/60HZ |
|
Oscillate power max |
60KW |
100KW |
|
Max input current |
90A |
152A |
|
Oscillate frequency |
50-150KHZ |
50-150KHZ |
|
Cooling water desire |
0.5Mpa≥6L/MIN |
0.5Mpa≥6L/MIN |
|
Duty cycle |
100% 40°C |
100% 40°C |
|
Dimensions |
Generator |
630*350*620mm |
650*450*720mm |
|
Transformer |
500*350*430mm |
600*450*500mm |
|
Net weight |
45kg/35kg |
60kg/40kg |
|
Cable length |
2-6(Meters) |
2-6(Meters) |
Dongguan Jinlai Electromechanical Device Factory, founded in 1996, which is engaged in R&D, production and sale of solid Induction heating machine professionally. Several senior experts of induction heating equipment gathered here, who initiate the induction heating machines with environmental protection and highly effective energy conservation, positively and diligently.
Now there are series of products range from 3KW to 600KW, including the ultra-high/high/ super-audio/medium frequency induction heater, KGPS Parallel IF Power supply, IGBT energy saving IF power supply, 12 pulse IF furnace and special equipments (e. g. High-frequency quenching machine, Medium-frequency induction melting furnace, Ultrasonic -frequency annealing machine, Induction forging furnace, Brazing machine, Plastic welding machine, Branch divider/Bicycle fittings special -purpose welding machine, Railway river furnace, etc). These products are widely applied in the heating of hardware, metal (steel, iron, copper, aluminum) processing, plastic, deeply heating shaping, brazing, hardening, melting, annealing, hot cooperation and so on.
It was certified to ISO9001: 2008 quality system and CE certification. Advocating quality management conception of "producing products with zero defect", the quality has been guaranteed. The company has been sated up and perfected the marketing network and after-sales system. Our products are widely exported to Russia, USA, Italy, Romania, Netherlands, Finland, Turkey, Ukraine, Argentina, Brazil, India, Pakistan, Malaysia, Indonesia, Thailand, Vietnam and other countries or region. Most of products gain good reputation from customers.
Our conception is "human-oriented, service the society with innovation". "the quality and prestige are the fist" is our mission. The principle is "communal development, mutual benefit, we are looking forward to cooperate with you to create a bright future!
