Product Specifications
| Prod Model: |
various |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Cement\Magnesium\Lime\Ore Dressing\Sand Production |
| Certificate: |
ISO9001,ISO14000 |
| Design: |
by Professional Engineer |
| Installation: |
Under Our Engineer's Guide |
| After Sale Service: |
for The Whole Using Life |
| Condition: |
New |
| Testing: |
We Offer |
| Spare Parts: |
We Offer |
| Experience: |
More Than 50 Years |
| Price: |
Best Price |
Product Description

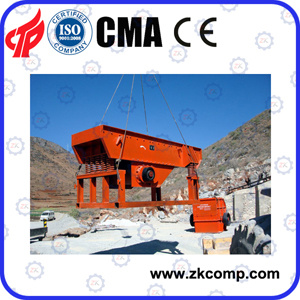

Vibrating screen:
The vibrating screen is machinery and equipment of vibration screening, which is suitable for damp fine grade of difficult materials with dry vibration screening, and is also equipment to process difficult materials of the domestic. Vibrating screen has the process characteristics of large amplitude, large vibration intensity, low frequency and elastic screen surface. In the working process, it maintains the largest rate of hole, which is of high efficiency, large capacity, convenient replacement of sieve plate, and reduces the cost.
Our company mainly produces three kinds of vibrating screen as follows:
YA Series Circular Vibrating Screen:
YA Drum Vibrating Screen is primarily applied coal, Metallurgical, power generation, building material, water conservancy 'light and chemical industries and other industries and a highly efficient screening machine to classify coal, ore, coke and other bulk materials.
Working Philosophy and Structural Property
The screen is operated by electric motor to drive vibrator with eccentric mass via delta belt, allowing screen box to vibrate, with the motional orbit of the screen box being circular. The screen is composed of screen box, vibrator, spring, damping, supporting underframe and others, as shown in Fig. 1. The screen box uses the advanced ring groove rivet for connection and si of frame structure.
The vibrator adopts eccentric shaft and eccentric block and the spring damping device sues steel spiral spring.
YK Series Circular Vibrating Screen:
YK Series Circular Vibrating Screen adopts German technology, and is specially designed to sieve different sizes of aggregate. It is also applied in coal dressing, ore dressing, building material, electricity and chemical industries.
Features and Benefits:
1. High vibrating force with unique eccentric structure. Adopt advanced construction, making the vibrating force powerful.
2. The beam and case of the screen are connected with high strength bolts without welding.
3. Simple structure, easy to repair.
4. Adopt tire coupling and soft connection makes operation smooth.
5. High efficiency, easy maintenance, sturdy and durable.
ZK Series linear Vibrating Screen:
ZK series linear vibrating screen is based on the needs of China's production in the digestion and absorption the technology from abroad on the basis of summing up of our years of research experience in the design and use, combined with the national conditions of China developed a new series of vibrating screen.
Through years of practice, that the series of machine has to deal with a large amount of technical parameters of a reasonable structural strength, high stiffness, serialization, generic, and a high degree of standardization, smooth and reliable operation, noise, maintenance overhaul to facilitate a series of advantages.
Use
YA Drum Vibrating Screen is primarily applied coal, metallurgical, power generation, building material, water conservancy 'light and chemical industries and other industries and a highly efficient screening machine to classify coal, ore, coke and other bulk materials.
Working Philosophy and Structural Property
The screen is operated by electrical motor to drive vibrator with eccentric mass via delta belt, allowing screen box to vibrate, with the motional orbit of the screen box being circular. The screen is composed of screen box, vibrator, spring, damping, supporting underframe and others, as shown in Fig. 1. The screen box uses the advanced ring groove rivet for connection and si of frame structure.
The vibrator adopts eccentric shaft and eccentric block and the spring damping device sues steel spiral spring.
Company Name: Henan Zhengzhou Mining Machinery Co., Ltd.
Official Website: http://www.inczk.com/ & http://www.zkcomp.com/
24-hour Free Sales Consulting Phone: 861-0371 -5590 2866.
Company Address: Qiaolou caizhai industrial estate, Xingyang city, Henan Province
|
Model |
Screen |
deck |
Vibration |
Double- |
Capacity |
Motor |
Overall |
|
layer |
size |
frequency |
Amplitude |
(m³/h) |
power |
dimensions |
|
|
(m³) |
(r/min) |
(mm) |
|
(kw) |
(L*W*H)(mm) |
|
2YK1224 |
2 |
2.88 |
970 |
6-8 |
20-120 |
5.5 |
2637×2382×2027 |
|
YK1235 |
1 |
4.2 |
970 |
6-8 |
20-150 |
5.5 |
3710×2464×1450 |
|
2YK1235 |
2 |
4.2 |
970 |
6-8 |
20-150 |
7.5 |
3705×2393×2339 |
|
3YK1235 |
3 |
4.2 |
970 |
6-8 |
20-150 |
7.5 |
3621×2521×2830 |
|
4YK1235 |
4 |
4.2 |
970 |
6-8 |
20-150 |
11 |
3510×2521×2581 |
|
YK1545 |
1 |
6.75 |
970 |
6-8 |
20-150 |
11 |
4904×3044×2179 |
|
2YK2475 |
2 |
18 |
970 |
6-8 |
120-900 |
30 |
7812×4308×4642 |
|
3YK2475 |
3 |
18 |
970 |
6-8 |
120-900 |
37 |
7718×4393×5033 |
|
4YK2475 |
4 |
18 |
970 |
6-8 |
120-900 |
45 |
7718×4494×5361 |
|
YK3060 |
1 |
18 |
970 |
6-8 |
200-900 |
30 |
6207×4943×3108 |
|
2YK3060 |
2 |
18 |
970 |
6-8 |
200-900 |
37 |
6207×4943×3985 |
|
3YK3060 |
3 |
18 |
970 |
6-8 |
200-900 |
45 |
6207×4943×4485 |
|
4YK3060 |
4 |
18 |
970 |
6-8 |
200-900 |
45 |
6207×4943×4785 |
Henan Zhengzhou Mining Machinery Co., Ltd, was established in 1956 and located in Xingyang of Zhengzhou City of Henan Province, specially produces metallurgical machinery. It covers an area of more than 55000m2 and various building area of 28000 m2. It has the annual income of more than RMB180million in 2008 and now the fixed assets of over RMB80 million. In the plant, there are branches and workshops of cast iron, cast steel, forging, heavy machine tool processing, rivet welding and heat treatment etc. Its perfect and complete equipment, advanced detection means, strong technical force establish good foundation for the reliable production.
Main products include: Jaw style, hammer style, impact style and roll style crusher; Ball mill, direct fired drier, rotary kiln, preheater, coker, magnetic separator, flotation machine, classifier, feeder, hoisting machine and conveyor etc. These complete sets of machinery for cement building material, metallurgy, coking and chemical smelting etc are sold well in the world. Our company also has professional installation and construction teams and perfect after-sales service guaranty system.
With the development of the People's Republic of China, Henan Zhengzhou Mining Machinery Co., Ltd undergoes frequent difficulties and has accomplished over 50 years' brilliant history. Initially from the manufacturing of original single machine till today's series of and complete sets of mining metallurgical machinery, it has made great contribution to the development and utilization of mineral resources of our country. For many years, each spot check and annual examination carried by National Mining Machinery Quality Supervision and Inspection Center for our products is acceptable and our company is always appointed as Credible and Reputed Enterprise by Henan Provincial Administration of Industry and Commerce.
Henan Zhengzhou Mining Machinery Co., Ltd will continue providing excellent products and service for our society, with the guideline of "survival by quality, development by good faith, users supreme". Our company would make sincere cooperation with all circles for mutual benefit and common development.
