Product Specifications
| Prod Model: |
5013 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Load Moment Capacity (Kn. M): |
630 |
| Max. Hoisting Capacity(T): |
6 |
| Tip Load (T): |
1.3 |
| Jib Radius (M): |
3-50 |
| Freestding Height(M): |
40 |
| Mast Section Dimension (Mm): |
1680*1680*2500 |
| Upper Chord (Mm): |
89*8 / 20# |
| Width Of Parallel Surface (Mm): |
1360 |
| Length (M): |
12.636 |
| Retarder: |
Jzq595 |
| Type: |
Tower Crane |
| Application: |
Construction Usage |
| Power Source: |
Electric |
| Sling Type: |
Wire Rope |
| Certification: |
CE |
| Condition: |
New |
Product Description

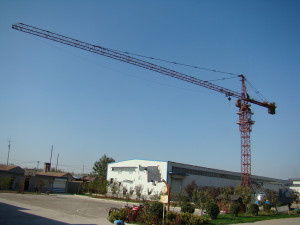

High Efficient Topkit Tower Crane\Crane \Tower
Model: QTZ63 (5013) TOPKIT TOWER CRANE
Type: Stationary/External Climbing
Rated load moment capacity (KN. M): 630
Max. Hoisting capacity(t): 6
Tip load (t): 1.3
Jib radius (m): 3-50
Freestding height(m): 40
Specifications of main chord: 135*10 Square tube /Q235B
Mast Section Dimension (mm): 1680*1680*2500
Jib
Upper chord (mm): . 89*8 / 20#
Lower chord (mm): 90*8 welded square tube /Q235B
Width of parallel surface (mm): 1360
Counter-jib
Main limb (mm): [28b/ Q235B
Length (m): 12.636
Hoisting
Mechanism
Retarder: JZQ595
Motor: YZTD225-4/8/32-24/24/5.4KW
Magnetic Brakes: YWZ-300/45
Wire rope: 6*37-13-1770-1-1 right lay
Hoisting speed (m/min): 80/40/8.5 40/20/4.25
Slewing
Mechanis
M
Retarder: XX80, 195
Motor: YZR132-6-3.7KW
Coupling: YOX250A
Slewing speed: (r/min): 0.6
Trolleying
Mechanis
| Jib m | Fall | R(Cmax) m | C(max) t | 14 | 18 | 22 | 26 | 30 | 34 | 38 | 42 | 46 | 50 |
| 50 | IV | 12.74 | 6 | 6 | 5.044 | 4.036 | 2.965 | 2.500 | 2.150 | 1.870 | 1.630 | 1.460 | 1.30 |
| II | 24 | 3 | 3 | 3 | 3 | 3 | 2.50 | 2.15 | 1.87 | 1.63 | 1.46 | 1.30 |
Mechanism Characteristics
| Hoisting |
|
|
| Motor(kW) | |
| m/min | 40/20/4.25 | 80/40/805 | 24/24/5.4 | 400m |
| t | 3/6 | 1.5/3 |
| Trolleying | m/min | 20/40 | 30.2/2.2 |
|
| Slewing | r/min | 0.6 | 2×3.7 |
|
| Jacking-up | m/min | 0.4 | 5.5 |
|
| Power Supply | 380V/50Hz |
| Power Capacity | 34.8kW |
|
Our company supplies different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
