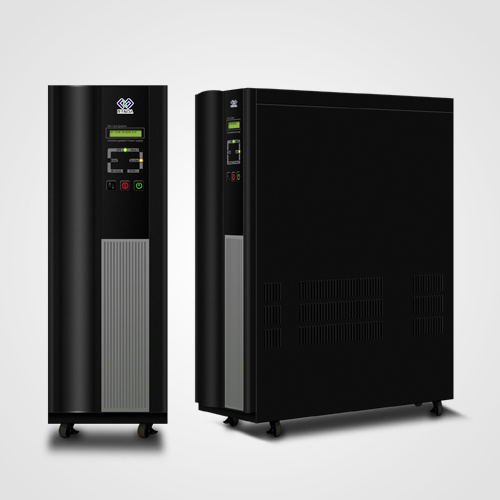

High Frequcy Long Backup Time UPS for Power Supply
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Short Circuit |
Product Description
1. Pure Sine Wave output power
2. Wide input range
3. Support cool start fuction
4. Start self-inspection and self-simulated power failure detection function
5. Available connect to generator
6. Automatic bypass function of protection and maintenance manual bypass function
7. High intelligence program control
8. English monitoring software
9. Large charge current and extranal battery
10. With SNMP card slot
11. Large LCD display with LED indicated light
12. Perfect short circuit, Overload, Overtemperture, Low battery voltage, Output over/low voltage protection
Model
Specification |
RDNU1101 |
RDNU1102 |
RDNU1103 |
RDNU1106 |
RDNU1110 |
RDNU3115 |
RDNU3120 |
|
Capacity |
1KVA |
2KVA |
3KVA |
6KVA |
10KVA |
15KVA |
20KVA |
|
Input |
Voltage Range (Vac) |
140-Vac-285Vac |
160-276Vac |
304-478V |
|
Frequency (Hz) |
50Hz/60Hz±5% |
46-54Hz |
|
Phase |
Single Phase |
Three phase |
|
Generator tracking |
Follow and sync generator frequency when it is between 47Hz to 53Hz |
|
Output |
Voltage Range (Vac) |
220/230/240/120/110/100±3% (Single Phase) |
220V±1% |
|
Frequency(Hz) |
50Hz/60Hz±0.5% |
50Hz±0.05 |
|
Waveform |
Pure sine wave, |
|
THD≤3%(Linear load) THD≤5%(Non-linear load) |
THD≤2%(Linear load) |
|
Transformer Time |
0ms |
|
Overload Capacity |
110%~130% last for 10S |
<130% last for 10mins |
105%~150% last for 30s |
|
>130% last for 0.2S |
>150% last for 300ms |
|
Power factor |
0.7 |
|
Output |
Sockets and Terminal |
|
Peak factor |
3:1 |
|
Battery |
Standard configuration |
12V/7AH*3pcs |
12V/7AH * 8PCS |
12V7AH * 20PCS |
External battery |
|
Backup Time (Full Load) |
7mins |
10mins |
7mins |
8mins |
5mins |
|
Backup Time (Half Load) |
17mins |
20mins |
20mins |
26mins |
15mins |
|
Battery voltage |
36VDC |
96VDC |
240VDC |
|
Max Current(long time Unit) |
6A |
10A |
16A |
29.6A |
51A |
5A |
|
Others |
Display |
LCD display input voltage, output voltage, Load, battery voltage and so on |
|
LED display work status of UPS and fault indication |
|
Alarms |
Overload, AC input abnormal, Low battery voltage, Over battery voltage, UPS failure |
|
Protections |
Low battery voltage, overload, over-temperature, short circuit, Output over/low voltage |
|
Communication(optional) |
RS232, support software of power monitoring, suitable for a variety of computer |
|
SNMP card, To realize network adapter ,The power network management |
|
Remote Control(RS485 or RS232) |
RS485, Independent digital remote control, distance reach 1000m. Safe and convenience |
|
Manual Bypass |
Optional |
|
Temperature |
0~40 degree |
|
Humidity |
0~95% no condensing |
|
Standard |
CE LVD62040/EMC60950 |
|
Noise (dB) |
< 50dB |
< 60dB |
