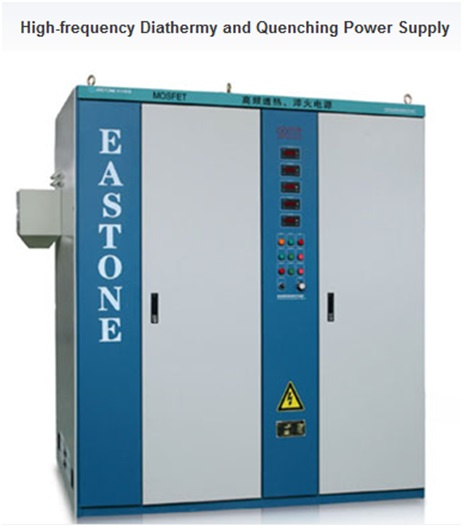

I. Product Introduction
As a medium-frequency induction heating power supply, high-frequency inverting diathermy and quenching power supply series adopts three-phase bridge rectification power supply, IGBT power device full bridge inverting and load-matching medium-frequency transformer made of ultracrystallite alloy materials or high-performance ferrite materials and realizes adjustable medium-frequency output power by LC series resonance working mode. In the entire work process, it adopts power closed-loop control, the working frequency follows the loaded inductance value changes of the induction coil automatically, with whole-course soft switching control, it generates little electromagnetic interference. With a power factor more than 0.92 and a power conversion efficiency higher than 0.95,
IGBT high-frequency induction heating power supply series is convenient to operate and use, has a wide range of phase-lock frequency and adaptable to various induction coils. It can be widely used in the forging, diathermy and quenching of metal materials such as copper and iron etc. Or the online heat treatment of metal wires.
II. Performance Indexes
1. It adopts cabinet-type integrated design or split-type modular design.
2. The medium-frequency transformer adopts ultracrystalline alloy materials or high-performance ferrite materials and it is characterized by a small size, low losses and a conversion efficiency above 0.94.
3. The resonant capacitor adopts dry-type low-loss film capacitor with the loss angle less than 0.2‰ .
4. The power device adopts IGBT, works in the LC series resonance mode and its working frequency has a wide adaptation range.
5. It is easy to operate and use with a 100% starting successful rate and an output power continuously adjustable from 3% to 100%.
6. It has soft start and soft turn-off functions.
7. Adopting power closed-loop control, it has protection functions such as current-limiting, voltage-limiting, power-limiting and phase-deficient, overcurrent, overvoltage and over-temperature protection functions etc.
8. It has an automatic voltage-limiting function, when the output voltage is equal to or greater than 1.1 times of the rated voltage, the voltage will be limited.
9. It has an automatic current-limiting function, when the output current is equal to or greater than 1.1 times of the rated current, the current will be limited.
10. The power factor is more than 0.92 and the conversion efficiency of power supply is higher than 0.95.
IV. Technical Parameters
Input
Input voltage
3× 380V± 15% and 50Hz/60Hz; Others
Power supply of the fan
1× 220V, 50Hz
Output
Output power
10KW~500KW
Working frequency
5000HZ~60000HZ
Regulating range of output power
3%~100% of the rated output capacity
Medium-frequency voltage
Set by the user
Applicable load
Induction melting coil
Main Control Characteristics
Given signal
DC: 0~5V\0~10V
DC: 4~20mA\0~20mA\0~10mA
Control mode
Soft start and soft turn-off time
1-10S
Working mode
Continuous type
Protection
Phase-deficient protection
It protects in case of input power phase-deficient and cuts off the output
IGBT overcurrent protection
When the IGBT current is equal to or greater than 1.5 times of the rated current, it cuts off the output
Overvoltage protection
When the medium-frequency voltage is equal to or greater than 1.5 times of the rated voltage, it cuts off the output
Overheat protection
When the temperature of the primary radiator is equal to or greater than 80dgrees, it cuts off the output
Environment
Application environment
Used in rooms at the temperature of -5dgrees~+40dgrees without flammable, combustible and conductive dust
Storage temperature
-5dgrees~+60dgrees
Relative humidity
≤ 90%RH and without moisture condensation
Installation
Installation mode
Indoor cabinet-type installation
