Application
Adopt the High frequency welding technology for welding liquid tanks, canvas, car tents, tarpaulin, air structure, sun belt, inflatable dome, awning, covers, sunshade and many other kinds of soft plastic material with perfect welding effect.
Character

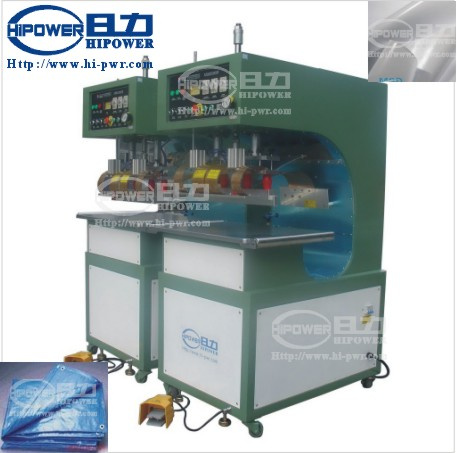

1. High frequency tarpaulin welding machine can be manufacturered and choose according to user needs.
2. Length, width and radian of welding area can be adjusted by welding die.
3. With large space behind the welding tool which makes the machine suitable for big-scale manufacturing that require extensive material handling. The dimension of product handle platform can be choose according to welding products
4. For getting better welding effect, install laser scanning system inside the machine to get precise wedling prosition.
5. European-model squareness high frequency vibration bos, more realiable and stable in output
6. International industrial wave bands 40.68MHz and 27.12MHz, which is in l ine with international standard.
7. Adopting high sensitive anti-sparkle device NL 5557 to aviod damaging the mould.
8. Welding time can be adjusted according to welding materials
9. Firmly welding, be well meet with thick or thin dimension of welding material
10. Machine groove deep and wide, conveninent I n continuous welding with large area.
11. Single line or two lines continue welding, welding length can be ordered as special need.
|
Model |
HR-5KWF |
HR-8KWF |
HR-10KWF |
|
Power |
5000W |
8000W |
10KW |
|
Supply power |
380V 50/60Hz |
|
Frequency |
27.12MHz |
|
Input supply |
8KVA |
15KVA |
18KVA |
|
Rectifier |
SILICON DIODE |
|
Oscillation tube |
7T85RB |
7T69RB |
E3069RB |
|
Max pressure |
300KG |
500KG |
800KG |
|
Gap of electrodes |
150mm |
|
Moving Distance of active horn |
150mm |
|
Size of upper electrode |
50*50*400mm |
50*50*600mm |
50*50*700mm |
|
Size of buttom electrode |
350*700mm |
400*800mm |
400*900mm |
|
Welding time |
0~10S Adjustable |
