Product Specifications
| Prod Model: |
PETS PET strap band production line |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Use: |
Pets Pet Strap Band Production Line |
| Product Type: |
PET Board |
| Board Layers: |
Single Plate |
| Certification: |
ISO9001:2008 |
| Automation: |
Automatic |
| Computerized: |
Computerized |
Product Description

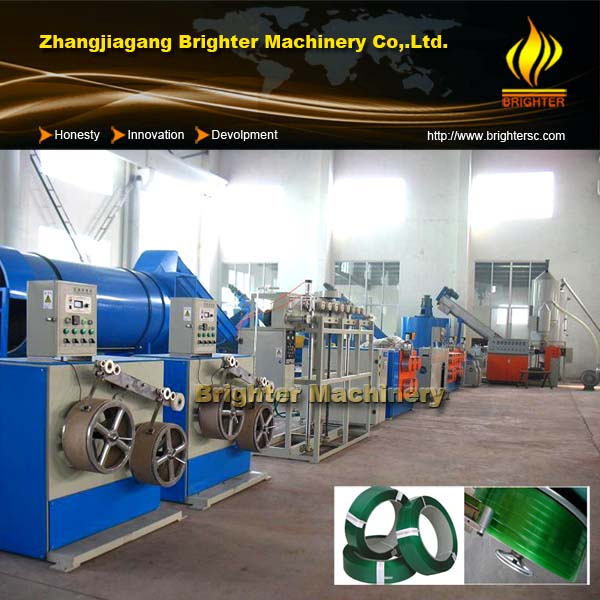

High output PET packing strap band making machine PET strap band production line
Our PET packing strap production line, which has broken through the traditional craft route, takes the 100% bottle flakes for raw materials without any other complement and crystallization, adopts the advance technology to produce all kinds of polyester straps directly in a economical cost.
Function of PET strap band production line
1) PET raw materials do not need to separate the dry and water treatment . There are automatic circulation on preheating and drying that save a large number of equipment investment and reduce the production cost by 30%;
2) Utilizing the retrieving bottle slice as raw materials that reducing the cost to a great extent;
3) With the multi-purpose machine, produce the PET straps in different specifications directly and dont need to change the mould head;
4) Comparing with new polyester slice, the transparency of products is just the same, but the tensile strength and shock resistance are up to the international grade;
5) Low Energy consumption, but high production capability;
6)Easy to operate, save the manpower and two persons for one production line on average.
PET bottle flakes processing system and technology
1.100% bottle flakes recycling material produce directly,with green environmental protection.
Utilize the waste resources, reducing 30% production cost
2.Specially design the drying system according to the PET molecular chain structure by our company.
The dew point is below -50° .
crystal thickening, uniform drying, packing strap with high tensile strength ,
Not cracking and not splitting.
3.Calibration oven eliminate the prestressed, with good calibration,even width and bending.
Can achieve automatic packing.
This PET strap band extruder machine is easy to operate, convenient repair, power consumption and low cost.
Thus your first choice for you into PET strap band market.
Parameter of PET strap band production line
| No | Name | Specification |
| 1 | Range of band width | 9-32mm |
| 2 | Range of band thickness | 0.5-1.0mm |
| 3 | Motor power | 380v/50Hz or customized |
| 4 | output capacity | 50-200kg/h |
