Price: | Negotiable/Piece |
---|---|
Trade Terms: | FOB |
Min Order: | 1/Piece |
Pay Type: | T/T |
SYSTEM | CPU | I n t e l ® eleron/Pentium/I3/I5 LGA1150 processor, for fanless PC support I3/I5 CPU Which less or equal to 35W , Celeron / Pentium 4th Hasewell T series processor |
RAM | 2xDDR3L 1600MHz DIMM,up to 16 GB | |
EXPANSION | 3xPCI 32 bit Standard;1xPCIe 3.0 16X, Support Graphics;Mini PCIe Cardx1,1PCIe x1 and USB,can support Mini PCIe and WIFI | |
DISPLAY | VGA,DVI-D,HDMI(DP optional ), three independent display interface, CPU integrated Intel HD Graphics,Synchronous or asynchronous three display | |
M/K | USB | |
Ethernet | Intel I210-IT and 217LM Chipset,10/100/1000Mbps RJ-45 interface ×2 | |
SSD | Cfast, 16G to 512G(T001) | |
HDD | 2.5" HDD Bay, support 2* SATA3, 2.5 inch HDD of 6Gb/s | |
COM | S001:RS-232×4, RS-232/422/485×2(jumper setting); T001:RS-232×4 | |
USB | RS-232/422/485×6(jumper setting);S001: 2*USB 3.0 ,2*USB2.0; T001: 2*USB 3.0 ,4*USB2.0x4 | |
Audio | Realtek ALC886 5.1-channel,MIC and Line-out | |
System control | 1* power on/off, 1*Reset | |
LED indicator | Power light ×1,HDD light ×1 | |
Watch dog timer | system timer reset/interruption | |
Power | DC input:built in DC-DC converter (default) input voltage:DC 9-36V AC input :power adapter (option ) input voltage:100VAC240VAC@5060Hz | |
OS | Windows xp, Windows 7,Windows 8, Linux Fedora, Linux Kernel | |
DIO | 8 bit DIO(Input-output programmable)) T001: 16 bit DIO(Input-output programmable)) | |
Structure | Structure | aluminum-case, Wrinkle-shape for cooling |
Colour | Silver aluminum+ silver SGCC | |
Installation | on-wall,stander | |
Siz e | 239.4*221.4*113.8mm(W x H x D) | |
N.W | 3.8Kg | |
MECHANICAL | Operation temperature | -10°C ~ 55°C - SSD With Airflow ; -10°C ~ 50°C - HDD With Airflow |
Storage temperature | -20°C ~ 70°C (-4°F ~ 158°F) | |
Storage humidity | 5~90%@40°C,non-condensing | |
Vibration | 5 grms / 5 ~ 500Hz / in working status(SSD);1 grms / 5 ~ 500Hz / in working status(HDD) | |
Shock | 50 g peak acceleration (Duration 11ms)(SSD) ; 20 g in working status(Duration 11ms)(HDD) | |
EMC | CE /FCC A Class,UL | |
ORDER INFORMATION | ||

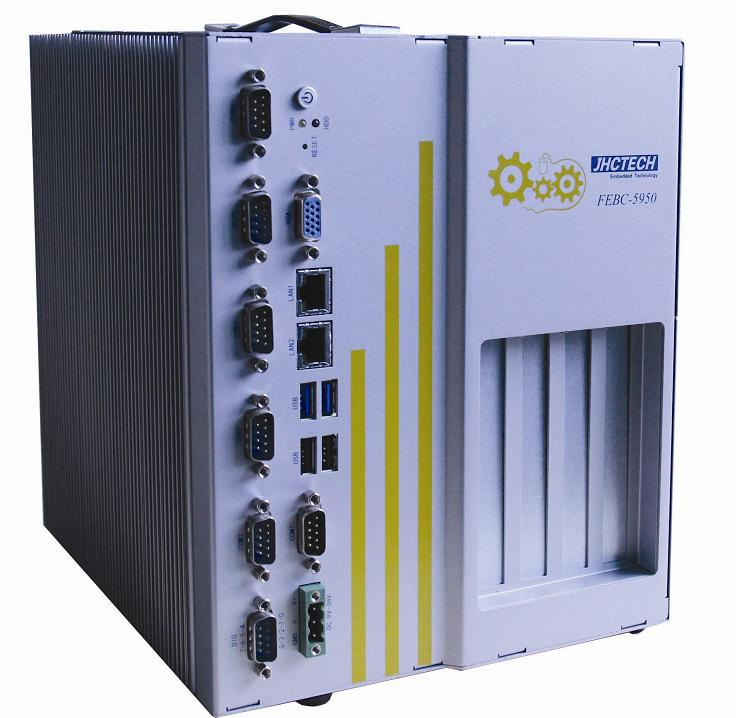

FEBC-5950 | ||
Optional CPU I3-4330TE--LGA115 0 Socket 2Core 4Threads, 22nm ,Cache 4M ,Frequency 2.4G I5-4590TE--LGA115 0 Socket 4Core 4Threads, 22nm ,Cache 6M ,Frequency 2.0G to 3.0G G3320TE--LGA115 0 Socket 2Core 2Threads, 22nm ,Cache 3M ,Frequency 2.3G G1820TE--LGA115 0 Socket 2Core 2Threads, 22nm ,Cache 2M ,Frequnency 2.2G AC/DC Power adapt o r , DC19V/6.73A 120W | ||
FEBC-5950 | ||
multilayered structure , fanless design | ||
Support Intel 4th Gen Desktop LGA1150 CPU | ||
4xPCI | ||
WBESITE | ||
WWW.JHCTECH.COM.CN/EN |
Prod Model: | FEBC-5950 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
CPU: | 4th Generation Desktop CPU |
Size: | 239.4*221.4*113.8mm(W X H X D) |
N.W: | 3.8kg |
Color: | Silver Aluminum+ Silver SGCC |
OS: | Windows XP, Windows 7, Windows 8, Linux Fedora |
Structure: | Aluminum-Case, Wrinkle-Shape for Cooling |
Type: | IPC |
Touch Screen: | Without Touch Screen |
Installation: | Horizontal |
Application: | Industrial |
