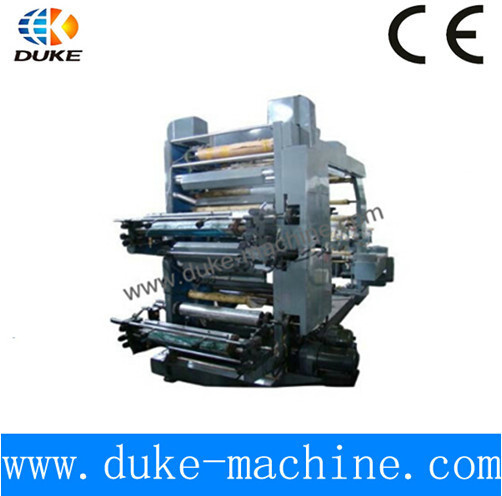

High Precision 4 Color Flex Printing machine

High Precision 4 Color Flex Printing machine Uses :
This machine is using photosensitive resin soft version of the press as a plate, commonly known as "aniline printing presses". Suitable for printing polyethylene, polypropylene plastic bag. Cellophane, roll paper, non-woven bags, and other packaging materials, paper packaging for food, supermarket handbag, vest bag, garment bags, and other packaging .it is an ideal printing.

Characteristic :
1.Low speed and full load startup; stable running by tension control when increasing and decreasing speed, noise is decreased
2.High dots presentation rate under high speed; clear and vivid stratification of screen printing; strong stereo effect and accurate registering
3.Aluminum roller adopts the Japan semi-sealing small bearing; flinty oxidation, static and dynamic balancing treatments are conducted; low resistance and small flop.
4.The special made modulus angular gears adopted printing size and full printing specifications(5mm is spec)
5.With the air exhaust, blowing and heating settings; the heating system adopts the central thermostatic control system and group management , also with the cold air forming devices
6.Printing rolls should keep moving while machine halted
7.Material holder use air shaft
8.Auto tension control
9.Unwind with auto deviation correction system(EPC)
10.EDGE position control
11.Reversible printing 6 color press for 6+0,1+5,2+4,3+3
12.1 set of printing cylinder, size 15 inches

Our products including :
 1. Blown film machines: double layer and 3 layers co-extrusion film blowing machine,
double die head film blowing machine, 3 layers co-extrusion film blowing machine, rotary die dead blown film machine, PVC film making machine, ziplock bag film blowing machine;
2. Bag making machines: bottom sealing bag making machine, side sealing bag making machine, courier bag making machine, double lane bag making machine, ziplock bag making machine, bags en roll making machine, etc;
3. Printing machines: rotogravure printing machine, flexographic printing machine, 1-8 colors for your choice.
4. Other machines: film folding machine, crushing & granulating machine, patch handle sealing machine, glue spraying machine, etc.
5. Machinery accessories: material mixing machine, guesset bag making machine, holes punching die, corona treater etc.



The main packaging products we produce:

1. PE bag, PP bag, OPP bag, PP bag;
2. Carrier bags,T-shirt bag, handle bag, shopping bag, bottom-sealing bag;
3. Courier bag, zip lock bag, self-adhesive bag, side-sealing bag.
4. Styles available: stand up, gusset, zipped, heat-sealed, heat-cut, cold-cut, blown, sealed-in the-middle,three-side-sealed, with handle or hanger hole.


Main Specification :

Printing width	DK-4600mm	DK-4800mm	DK-41000mm	DK-41200mm	DK-41400mm	DK-41600mm	DK-41800mm	DK-42000mm
Printing color	4color(PC:4+0,3+1,2+2)
Printing length	7'-40'/7'-50' (according to customers' requirement)
Printing plate lifting system	Hydraulic press control
Printing speed	5-80m/min
Anilox roller	Ceramic anilox roller(Japan made)
Register precision	Longitude=±0.1,Transverse=±0.1
Rewinder&unwinder DIA	Ø600(mm)
Master motor	3.0kw	3.0kw	3.7kw	3.7kw	5.5kw	5.5kw	7.5kw	7.5kw
Unwinder motor	1.1kw		1.5kw		2.2kw		3.0kw
Rewinder motor	1.5kw		2.2kw		3.0kw		3.7kw
Heating method	Centralized heating method
Electrical heater	10kw	12kw	14kw	16kw	20kw	22kw	24kw	26kw
Blower of heater	1.5kw*2	1.1kw*3	1.1kw*3	1.1kw*3	1.5kw*3	1.5kw*3	2.2kw*3	2.2kw*3
Blower of nature wind	0.75kw	0.75kw	1.1kw	1.1kw	1.1kw	1.5kw	1.5kw	1.5kw
Inking motor	370w	370w	370w	370w	750w	750w	750w	750w
Master frequency converter	Panasonic/Toshiba/Delta(according to customers requirement)
Bearing	Japan NSK
Unilateral bearing	GermanyASNU
Weight	3500kg	3750kg	4000kg	4250kg	4500kg	4750kg	5000kg	5300kg
Master power	20kw	22kw	26kw	28kw	34kw	37kw	45kw	48kw
Dimension	4.5*1.8*2.8m	4.5*2.0*2.8m	4.5*2.2*2.8m	4.5*2.4*2.8m	4.5*2.6*2.8m	4.5*2.8*2.8m	4.5*3.0*2.8m	4.5*3.2*2.8m
