High Precision Computer servo control electronicsbalancing machine for drive shafts
Production Description
Specially designed brackets transmit mechanical force with high rigidity
Durable and reliable sensor possesses high sensitivity
Permanent calibration brings high accuracy with a permission of large initial unbalance amount
Advanced electrical measuring system and friendly man-machine interface
Range of Application

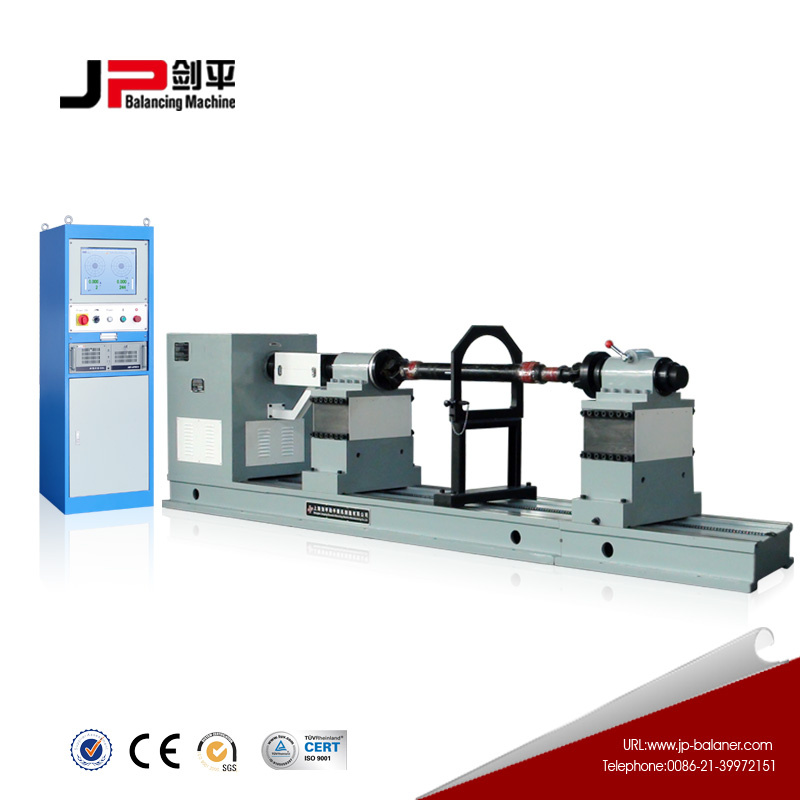

Balancing Machine for Transmission Shaft (PHCW-2000) is equiped with hard bearing structure. Electromechanical transducer adopts piezoelectric sensor Large output, small size, stable performance. Mainly used in the production and repair of all kinds drive shaft factories. With the advantages of high measuring speed, high precision, easy to load and unload, Investment at low cost. It is an ideal device for shaft manufacturers and maintenance factories.
Special Features
The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanxiang Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments
Production Parameters
| Technical data at a glance | PHCW-1000/2000 |
| Max Mass of Workpiece (kg) | 1000/2000 |
| Effective length of workpiece(mm) | 3000 |
| Max Diameter of Workpiece(mm) | Φ400 |
| Shaft tube diameter of workpiece(mm) | Φ300 |
| Balancing speed(mm) | 600-1200/450-1200 |
| Spindle Speed(r/min) | 410,750 stepless speed regulation |
| Motor Power(KW) | 3 frequency conversion |
| Universal joint torque(N.M) | 300 |
| Min Achievable Residual Unbalance Amount(e mar ) | ≤5g.mm/kg |
| A reduced rate (%) | ≥85 |
After Sale Service:
Professional engineer and application specialists respond to your requests efficiently
Online via SKYPE MSN; Also through mail, voice phone message and fax if network is not accessible for customer
Follow up the case, record the entire process. Solution will be provide with 24 hours
Meanwhile, the problem complaint will be reported to QC department
QC will find defect from which department, who is in charge to identify responsibility
Collecting and record customer respond, suggestion, requirement
Warranty period:
Life-time warranty. Any problem caused by our party within one year from the date of shipment, we will provide free spare parts for the repairment. After one year, we can provide the spare parts, but the user should pay for the related cost, including cost of the spare parts, delivery cost etc.
