Product Specifications
| Prod Model: |
AEL-700-1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Electric Single Column Vertical Test Stand |
| Maximum Load: |
500n |
| Effective Travel: |
200mm |
| Test Speed: |
15~240 or 60-500 mm/Min(Choos |
| Working Voltage: |
110-220V |
| Outline Dimension: |
400X320X620mm |
| Net Weight: |
30-40kg |
| Display: |
Digital |
| Price: |
Competitive |
| Condition: |
New |
Product Description
High Precision Electric Single Column Vertical Test Stand for 500N

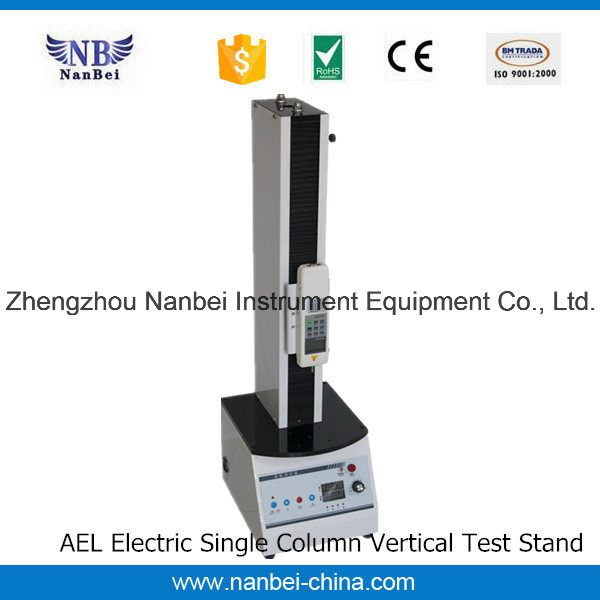

1.AEL Electric Single Column Vertical Test Stand
AEL Single column Vertical Machine is force load test platform specially matched for HF and NK series for
ce measurement gauge.
The product is double vertical rod structure, featuring good stability, wide applicable scope and convenien
ce, as well as step less speed regulation, manual (point) and automatic control switching functions.
Applicable for tests of force load, Insertion and withdrawal, destruction in such industries as rubber and pl
astic, light industry-textile, constructional door and window, composite materials, electric wire and cable,
parts and accessories for automobile, power machinery, scientific research institutes, etc.
Features
1:Electric load, step less speed regulation, gear drive
2:Compact structure, stable drive
3:Simple operation, able to be used with various kinds of clips
Specifications and Parameters
1: Maximum load: 500N
2: Effective travel: 200mm
3: Test speed:15~240 or 60-500 mm/min(choose by customer)
4: Working voltage: 110-220V
5: Outline dimension: 400x320x620mm
6: Net weight: 30-40kg
2.AEV Electric Double Column Vertical Test Stand
Function
The AEV electric test stand is the matching test stand of HF and NK series force gauge.
This product uses the double erecting pole structure, good stability, applies widely, easy to operate.
And have the step less speed regulation, manual (inching), and the auto control switch function.
Widely applied in rubber plastic, light industry, textile, building windows and doors, compound materials,
electric wire and cable, auto part, power generator, scientific research institute to do the push pull force in
sertion force and destructive experiment.
Features:
1.Electric loading, step less speed regulation, gear drive
2.Compact structure and stable drive
3.Simple operation, can be used with a variety of fixtures
| Item No. | Effective stroke | Max. load | Testing speed | G.W. (kg) |
| AEV-5KN | 220mm | 5000N | 15-240mm/min | 75kg |
| AEV-10KN | Not fixed | 10000N | 90kg |
| AEV-20KN | 20000N |
| AEV-30KN | 30000N |
3.ASC Side Shake Screw Test Stand
Features
1:The machine stand base is large and stable, which is suitable for indoor testing on the desktop.
2:It is driven by the screw, and its gauge head displacement is accurate,With the side hand wheel loading
, and the simple and stable operation.
3:The mobile platform of the base owning the standard layout can realize left, right, Forward and backwar
d movement, with convenient and accurate clamping.
4:The machine stand can be installed in the table (desk) to use, having more solid machine frame.
5:It is equipped with digital gauge, which enables it to collect the stroke data collection whenever necessa
ry(ASC-S).
Specifications and Parameters
| Model | ASC-500 | ASC-1000 |
| Max load | 500N | 1000N |
| effective travel | 180mm | 180mm |
| Dimension | 260*360*500mm/260*360*700mm |
| Weight | 18kg | 19kg |
4.ASL Manual Vertical (Horizontal) Dual Test Stand
Function
ASL Manual Vertical (horizontal) dual test stand is specially equipped for NK and HF series of mechanica
force gauge, which can be combined to a test machine for different purposes and carry out accurate plug
force, pressure force and other destructive tests. While displaying the force values, it can be equipped wit
h the gauge to display its displacement and carry out comparison test on different parts under the same
displacement.
Feature
1:For vertical-horizontal dual use
2:Manual operation, easy and convenient
3:This machine should be installed on the table to allow the rack more stable
4:Equipped with digital gauge, can collect travel data at any time(AST-S)
Specifications and Parameters
1:Maximum load:500N
2:Effective stroke:140 mm
3:Length × width × height:200×160×540 mm
4:Net weight:15 kg
5.AEH Electric Horizontal Test Stand
Function
AEH electric horizontal test stand is special design for NK and HF series force gauge.
This product uses the double erecting pole structure, good stability, applies widely, easy to operate.
And has the step less speed regulation, manual (inching), and the auto control switch function.
Widely applied in rubber plastic, light industry, textile, building windows and doors, compound materials,
electric wire and cable, auto part, power generator, scientific research institute to do the push pull force in
sertion force and destructive experiment.
Specification
Capacity: 500N-1000N
Stroke: 150 mm
Speed: 20~500 mm/min
Voltage: AC 220V(AC 110V can be specified)
6.AMH Manual Horizontal Test Stand
Function
AMH manual horizontal test stand adapt to domestic and imported test NLB NK, ALB etc.series pointer
type push pull force gauge and for pressure load,and insertion force test, etc. Of HF series digital force
gauge.
Features
1: Horizontal installation;
2:Manual operation, simple stability operation
3:This test stand can be installed in table face to make the frame more stable.
Specifications
1:Effective trip: 50mm
2: Maximum load: 500N
3: Dimensions: 450 * 260* 160 mm
4: Net weight: 10.6 kg
5: Test effective area: 105 * 100 mm, the largest can reach 105 x152mm
7.ABLPeel-off Force Test Stand
Function
ABL Peel-off Force Test Stand is specially designed for NK, HF series Push pull equipment,can be combined into
the test machine with different uses.
Specially used in PC board on foil circuit adhesion force or Tin foil, aluminum foil, tape etc.
Hit the object surface firmness.
In view of vertical dissect the test sample. To measure the actual strength.
Feature
1:Manual operation, ladder type screw transmission, simple and stable operation.
2:This frame can be installed in table face, to make the test stand more stable.
Specification
Effective trip: 150mm
Max. Load: 500N
Dimensions: 350×210×450 mm
Net weight: 19kg
Test effective area: 105×100 mm, largest can reach 105×152mm
