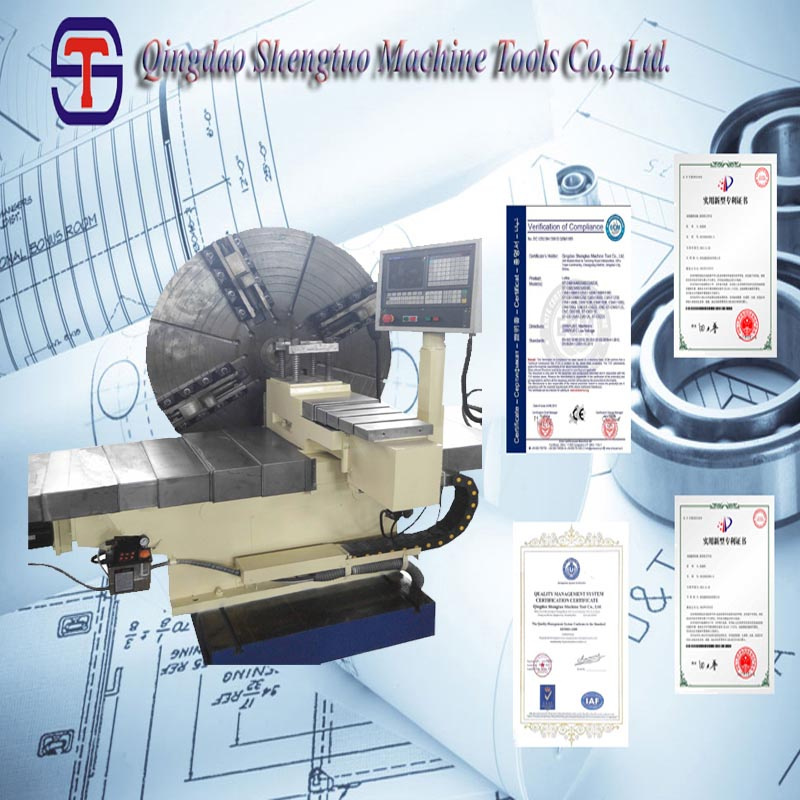

High Precision Processing 2 M Diameter Machine Tool
| Price: |
US $ 29000-30000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
It is widely applied to many industries,such as rubber machinery,textile machinery,chemical machinery, automobile manufacturing ,tire mould machiery and so on. It is mostly used to process various flanges,valves,pressure vessels ,boilers ,tire moulds, plastic moulds, shafts and other workpieces.
Specifications:
| Item | ST-C6020 CNC | Unit |
|
| Max. swing diameter of workpiece | 2000 | mm |
| The cross-feed travel of slide carriage | 1000 | mm |
| The longitude-feed travel of slide carriage | 450 | mm |
| Max. length of workpiece | 500 | mm |
| Max. weight of workpiece | 3500 | kg |
| Chuck diameter | 1600 | mm |
| The quantity of the steel jaws | 4 | set |
| Number of spindle speeds | 6 | level |
| Spindle diameter | 220 | mm |
| Spindle bore | 50 | mm |
| Cutter bar section size | 50×50 | mm |
| Spindle speed range | 13~103 | r/min |
| CNC system | GSK |
|
| Power of main motor | 11 | KW |
| Power of feed motor | 1.1 | KW |
| Adjusting mode of feed motor | stepless |
|
| Machine power supply | 380v,50HZ,3P |
| Overall dimensions | 3000× 2200× 2100 | mm |
| Lathe weight | about 7 | t |
| Standard configuration:1 set of headstock,1 piece of 4-jaw chuck Φ1600mm(500mm-long per jaw),1 piece of chuck wrench,1 set of 1.56m bed,1 base,1 set of 11kw main motor,1 set of feed rate motor. |
Optional configuration:Customers can extend the bed ,the base and choose one chuck from chucksΦ 1400mm,
1600mm,1800mm,2000mm(equiped with 800mm jaws) according to workpiece. |
| Specific Notice:Customers can customize the lathes according to their workpieces.(Based on changing configuration). |
| Prod Model: |
ST-C6020 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Stype: |
Landing Lathe |
| Max. Swing Diameter: |
2000mm |
| Max. Processing Length: |
500mm |
| Load Capacity: |
3.5 Tons |
| Packaging: |
by Customer Require |
| Shipment: |
by Customer Require |
| Type: |
Horizontal Lathe |
| Processing Accessory: |
Chuck CNC Lathe |
| Tool Holder: |
Single-tool Holder CNC Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Semiautomatic |
| Setting Mode: |
Floor-type |
| Precision: |
Precision |
Qingdao Shengtuo Machine Tool Co., Ltd have 20s manufacture, install and processing experences. It is a senior and professional manufacturer and exporter of large-diameter surfacing lathes of ST-C series with a leading status in machinery industry in China. At present, our products mainly include heavy duty face lathe machines, horizontal lathe machines, CNC lathe machines, vertical lathe machines, roll/rotor turning lathe and so on.
With the advantages in high technical content, rational structure, strong rigidity, superior performance and energy-efficient, the machine tools produced by our company has been sold well at home and abroad, especially exported to UK, Southeast Asia, India, North America, South America and Middle East. And we enjoy a high reputation from customers.
These machine tools are widely applied to many industries, such as rubber machinery, tire mould machinery, mine machinery, wheel mould machinery, automobile manufacture, aviation, shipbuilding, textile machinery, chemical machinery and so on. They are mostly suitable for cutting and processing various flanges, roller, pressure vessels, tire moulds, plastic moulds, big drums, bearings, shafts, boilers and other workpieces.
Our markets and clients more and more per year, so our performance is growing year by year.
We always uphold the principle "Honesty foremost, Quality fisrt". After years of efforts, we successfully passed the ISO9001 quality system certification and CE certification. And we have than 10 national patent products, and achieved many certificates of honor: High-tech enterprises in Shandong Province, China 3.15 Consumer Satisfaction Unit, AAA grade credit unit, Contract keeping and Credit First Company.
We`ll always continually provide high quality machine tools and services to repay the society.
