Product Specifications
| Prod Model: |
JH-XY054 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Can Be Customized |
| Opening Pattern: |
Vertical |
| Function: |
Insect-proof |
| Open Style: |
Fixed |

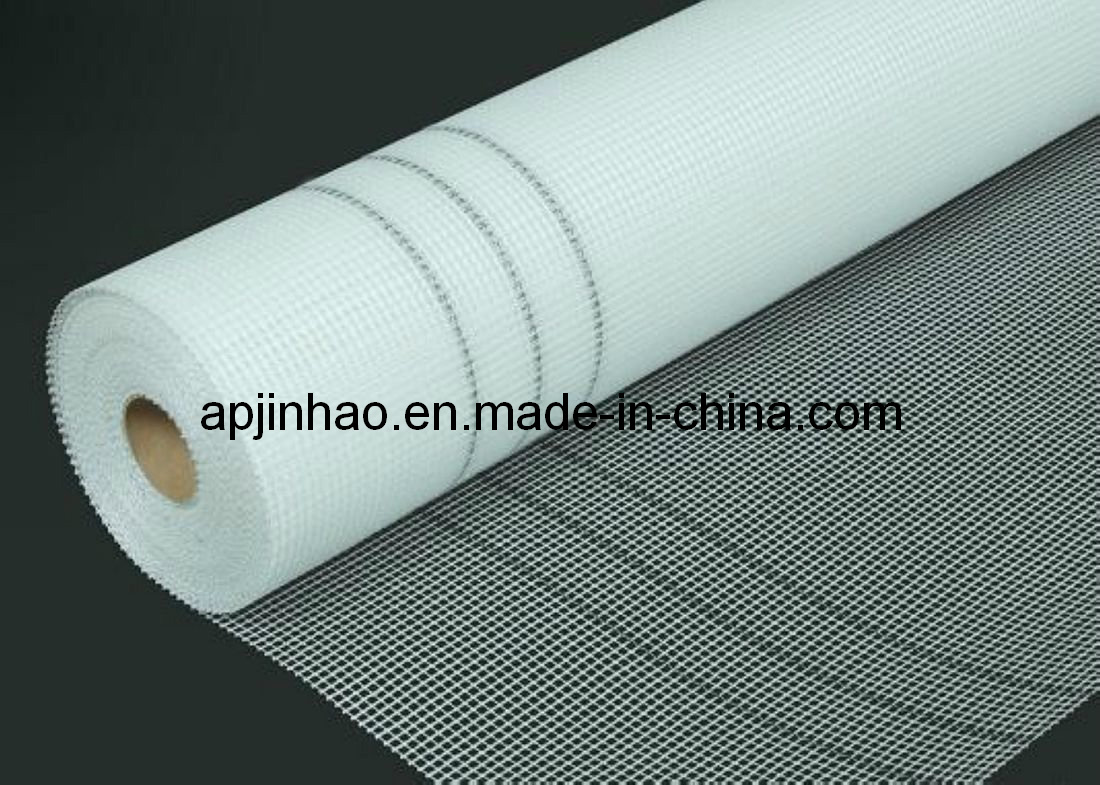

Product Description
Products are mainly applied in the invisible screen window, high-grade office buildings, residential and all kinds of buildings, livestock farm, orchard, etc., are insects, flies the best protection product
1 handsome appearance, strict structure. The whole window screening using glass fiber monofilament plastic coated flat knitting yarn is made, the rest of the material are all made of PVC plastic once completed suppression, fission assembly, solve the gap between the traditional window screen and window frame is too big, closed lax, safe to use and beautiful and good sealing effect.
2 applicable range. Directly installed on the window frame, wood, steel, aluminum, plastic doors and Windows can be assembled; Corrosion resistance, high strength, anti-aging, fire prevention performance is good. Has the anti-static function, not grey, permeability is good
3 avirulent insipidity.
4 choose glass fibre yarn net, fire retardant.
|
pecification List of Window Screen Netting |
|
Variety |
Specification |
Technical Notes |
|
Mesh/Inch |
Wire Gauge |
Roll Size |
|
Gal.Iron Wire Netting |
10mesh x 10mesh |
BWG31
BWG32
BWG33
BWG34 |
|
3"x100" |
|
4"x100" |
|
1x25M |
|
1.2x30M |
|
1.5x25M |
|
Process: Electric galvanized after weaving
Color: White or blue white
|
|
14mesh x 14mesh |
|
16mesh x 16mesh |
|
18mesh x 18mesh |
|
18mesh x 14mesh |
|
22mesh x 22mesh |
|
24mesh x 24mesh |
|
Enamelled Iron Wire Netting |
Same as above |
Green or dark green |
|
Aluminum Coated Iron Wire Netting |
Same as above |
Silver |
|
Aluminum Wire Netting |
Same as above |
Material: Al-mg alloy or pure aluminum
Painted aluminum wire netting??epoxy resin paint?? |
|
Fiberglass Wire Netting |
12 x 12 |
BWG31
BWG32 |
3"x100"
4"x100"
1x25M
1.2x25M |
Available in different colors |
|
14 x 14 |
|
16 x 16 |
|
16 x 14 |
|
PVC Wire Netting |
12x 12 |
As above |
Twisted weaving:12??14??16mesh;
Plain weaving:18??22??24mesh;
Colors available:white,blue,green,etc.
|
|
14 x 14 |
|
16 x 16 |
|
18 x 18 |
|
18 x 14 |
|
20 x 20 |
|
Stainless Steel Wire Netting |
14 x 14 SWG38
16 x 16 SWG37
18 x 18 SWG36
18 x 14 SWG35
20 x 20 SWG34 |
3"x100"
4"x100"
1x25M
1.2x25M |
Materials: Stainless steel 304??316??316L |
|
PVC Coated Wire Netting |
12x 12 |
BWG31
BWG32 |
As above |
Different colors available. Used in petroluem, pipes wrapping. |
|
14 x 14 |
|
16 x 16 |
|
18 x 18 |
