Product Specifications
| Prod Model: |
TSW-1010 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Style: |
European |
| Surface Finishing: |
Finished |
| Function: |
Invisible |
| Security Rating: |
A |
| Open Style: |
Fixed |
| Material: |
Glass |
| Frame Material: |
Glass |
| Opening Pattern: |
Fixed |
Product Description
high quality customized Silicon Joint Windows
1) European standard
2) ISO9001 Certificate
3) Opened inward
Double glazing aluminium tilt and turn window
------------------------------------------------------------------------------------------------------------------
Tiansheng double glazed tilt-turn window is specially designed for European luxury requirement for your home. It suits both traditional house and modern high-rise or as the ease and safety in cleaning is unsurpassed by other design. Tiansheng double glazed tilt-turn window can open both tilted and turning inward ensure the excellent ventilation control.Key Features
- Unobstructed views
- Silicon joints
- Glass fins
- Double glazing option
Product Description

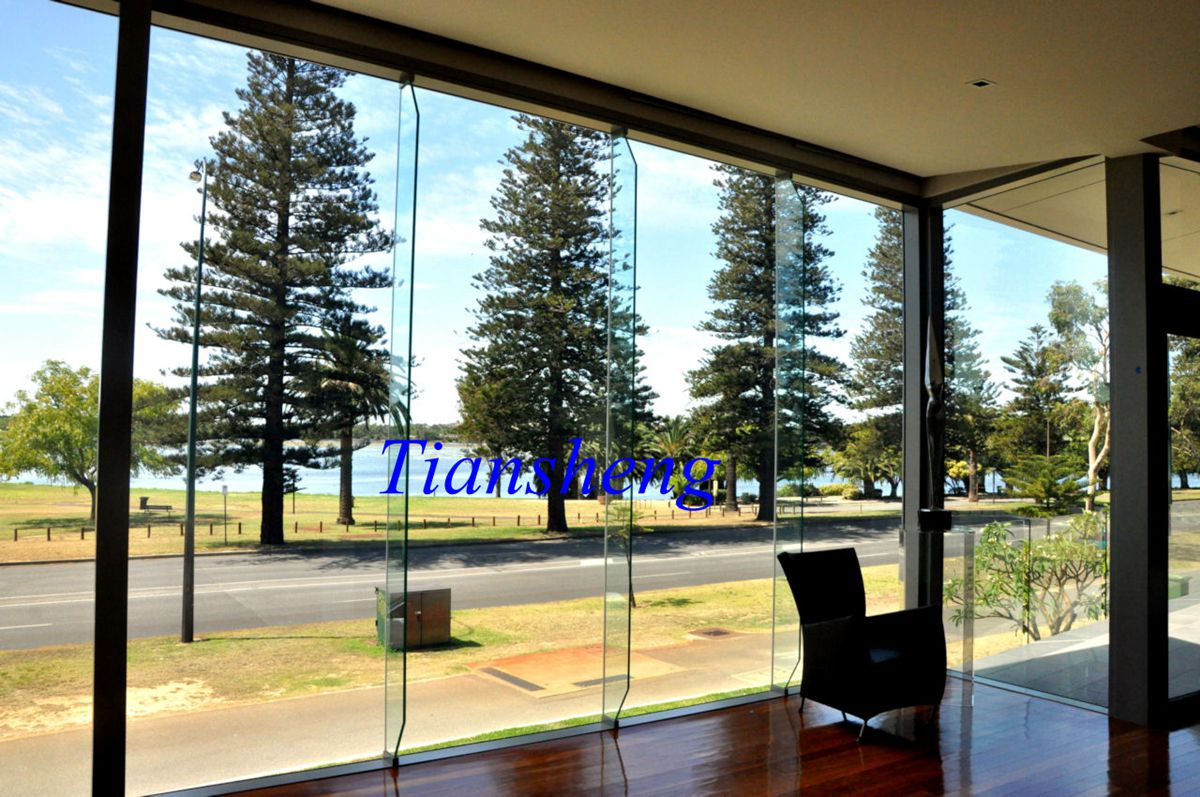

Silicon-joint segment windows provide a breath-taking view uninterrupted by the frame . Large windows where normally a mullion (vertical frame) is required to meet Australian Standards, can now be achieved using transparent glass fins and silicon joints. The glass fins are designed to provide the support of the mullion without its appearance.
toughened glass
tempered glass specification
| thickness | 4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm |
| max size | 2400*8000mm |
| mini size | 300*300mm |
| color | clear , low iron(ultra clear),bronze,grey,blue,green,lowe, reflective |
certificate | ISO9001, CCC, |
| package | plywood case ,protective paper interlayer |
Tiansheng Details of aluminum tilt and turn window
-----------------------------------------------------------------------------------------------
1. Energy Efficiency Option:
Tiansheng improved aluminium profile combined with double glazed glass is available to help reduce energy consumption. We always take the energy efficient into first consideration. Energy efficient option to u-value of 3.5 is available for Tiansheng improved double glazed tilt-turn window.
2. Acoustic Option
Tiansheng special double seal European system provide an excellent solution in sound insulation, available reduce 28 dB for Tiansheng tilt-turn window. It can reduce aircraft, highway traffic, railway and other noise. For more information or technical details contact Yokor.
3. Key Locks & Hardware
Tiansheng double glazed tilt-turn adopt Tiansheng standard hardware and special multi-point lock system.
4. Installation Solution
In last ten years, Tiansheng always keep eyes on easy, durable, stable installation solution. Now, Tiansheng has a set of mature installation solutions to suit different kinds of wall structures. For example, double brick, brick-stud, container house and concrete. Five different kinds of installation plates ensure you can install the windows and doors easily no matter what you have timber reveal, plaster reveal for your home. Contact us now for more information or technical support.
5. Glazing
Tiansheng Tilt-turn windows adopt double glazed Grade A toughen glass for safety consideration, default thickness is 5mm Toughen+12mm Air gap+5mm Toughen. Laminated glass or single glazed glass also available if required.
6. Insect Screen Options
Tiansheng quality fixed fly screen is available for tilt-turn window, can be installed and removable from inside and easy to clean.
7. Anti-Scratch Protective Wrapping
Quality anti-scratch protective wrapping is optional for all Tiansheng products.
8. Frame
Tiansheng improved double glazed tilt-turn window adopt 45mm thickness profile as frame. Due to durable consideration, Tiansheng provide a range of recommend sizes for Tiansheng tilt-turn window. Too big or too heavy window would cause big problems like panel falling down. Contact us now for a contemporary design of windows.
Maximum single leaf width is 1200mm
Maximum Frame Height is 1600mmPhotos:
Design:
Loading container:
1
|
Item name
|
fixed windows aluminum window
|
2
|
Aluminium profile
| Standard/energy efficient aluminium profile with 1.4mm thickness.
|
3
|
Profile surface treatment
|
powder coating(with 70um thickness)
Anodized(with 15um thickness)
Electrophoresis(with 25um thickness)
PVDF(with 40um thickness)
|
4
|
Glazed(AS2208)
|
A: single glazed like 5mm or 6 mm glass
B: double glazed like 5+6/9/12+5mm.
C: Triple glazed like 5+9+5+9+5mm
D: Laminated glazed like 5+0.38/0.76/1.52+5mm
E: Low-e glazed/tinted glazed/frosted/obscure glazed
F: Can be with colonial/decorative bars
G: All the glass we choose are Safety/tempered/toughed glazed
|
5
|
Glazed seal
|
Rubber (EPDM) or silicone sealant.
|
6
|
Hardware
|
German brand Roto/AUBI or made in china
|
7
|
Screen fly net
|
Nylon/Fiber glass/metal material
|
8
|
Dimensions
|
According to your design
|
9
|
Window color
|
Any color is available
|
10
|
Packing
|
Cardboard and iron pallet
|
11
|
Delivery time
|
6-8 week
|
12
|
Performance Parameters
|
1. Soud insulation: 33dB/500HZ 2. Wind pressure resistance: 4.0kPa 3. Air permeation resistance: 0.5m² /(h. m. ) 4. Water resistance: 500Pa 5. U-Value< 2.0w/m2. k
|
