Gabion Wire Meshes
1. Gabion are environment friendly and cost effective comparing with other options. The advantage of cost and the fact that gabion box can with stand the bad environment for very long time have made the use widespread.

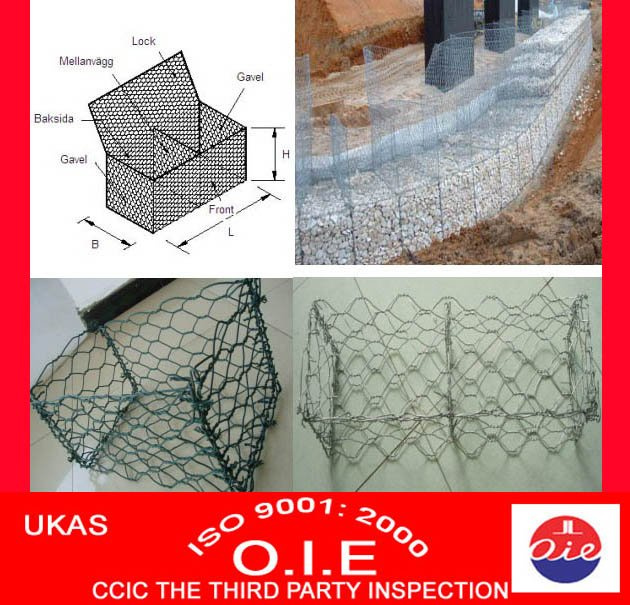

2. Gabion boxes are wire containers made of hexagonal wire nettings. Wire diameter varies with the hexagonal nettings. For hexagonal wire netting with no PVC coating, the wire diameter rangs from 2.0mm to 4.0mm. For those PVC coated hexagonal wire netting, the outside diameter ranges from 3.0mm to 4.0mm. The wire of the outside frameedge is one wire gauge thicker than the wire used for hexagonal wire netting.
3. The gabions boxes have the following characteristics:
(1))Economic, just fill the stone into the gabions and seal it. (2)Simple installation, no special technoligy needed.
(3)Weather proof under natural destory, corrosion resistant.
(4)Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.
(5)Good permeation can prevent the damage by hydrostatic.
(6)Less transport freight. It can be folded together for transport and further installation.
(7)No collapse even under big scope of deforming.
4. Applications:
Gabion box is very useful in various fields, first, it can control and guide water or flood. Second, it could protect the water and soil. What is more, it can also protect the bridge and seaside area. Uniquely, it will prevent the rock from being broke and strengthen the structure of soil.
|
Galvanized hexagonal wire netting |
|
mesh |
Min. Gal.v.
G/SQ.M |
Width |
Wire Gauge (Diameter)
BWG |
|
Inch |
mm |
Tolerance(mm) |
|
3/8" |
10mm |
±1.0 |
0.7mm - 145 |
2' - 1M |
27, 26, 25, 24, 23 |
|
1/2" |
13mm |
±1.5 |
0.7mm - 95 |
2' - 2M |
25, 24, 23, 22, 21 |
|
5/8" |
16mm |
±2.0 |
0.7mm - 70 |
2' - 2M |
27, 26, 25, 24, 23, 22 |
|
3/4" |
20mm |
±3.0 |
0.7mm - 55 |
2' - 2M |
25, 24, 23, 22, 21, 20, 19 |
|
1" |
25mm |
±3.0 |
0.9mm - 55 |
1' - 2M |
25, 24, 23, 22, 21, 20, 19, 18 |
|
1-1/4" |
31mm |
±4.0 |
0.9mm - 40 |
1' - 2M |
23, 22, 21, 20, 19, 18 |
|
1-1/2" |
40mm |
±5.0 |
1.0mm - 45 |
1' - 2M |
23, 22, 21, 20, 19, 18 |
|
2" |
50mm |
±6.0 |
1.2mm - 40 |
1' - 2M |
23, 22, 21, 20, 19, 18 |
|
2-1/2" |
65mm |
±7.0 |
1.0mm - 30 |
1' - 2M |
21, 20, 19, 18 |
|
3" |
75mm |
±8.0 |
1.4mm - 30 |
2' - 2M |
20, 19, 18, 17 |
|
4" |
100mm |
±8.0 |
1.6mm - 30 |
2' - 2M |
19, 18, 17, 16 |
|
PVC Coated Hexagonal Wire Netting |
|
Mesh |
Wire Gauge (MM) |
Width |
|
Inch |
MM |
|
1/2" |
13mm |
0.6mm - 1.0mm |
2' - 2M |
|
3/4" |
19mm |
0.6mm - 1.0mm |
2' - 2M |
|
1" |
25mm |
0.7mm - 1.3mm |
1' - 2M |
|
1-1/4" |
30mm |
0.85mm - 1.3mm |
1' - 2M |
|
1-1/2" |
40mm |
0.85mm - 1.4mm |
1' - 2M |
|
2" |
50mm |
1.0mm - 1.4mm |
1' - 2M |
We also offer other specifications you need
|
Tianjin O. i. e Haihang Imp. & Exp. Ltd. Is an export-oriented company supplying hardware and steel products to the world market, especially the markets of Europe and America. We have our own factory located in Anping county of Hebei province, the famous wire mesh land of China. So we can supply client kinds of wire and wire mesh with competitive price and good quality. Our company is engaged in the business line of this industry for many years, established long business relationship with many factories which can manufacture other kinds of hardware and steel products just like nails and others. Good reputation, advanced technology and facilities, efficient management can make us take up an advantageous position in the markets of the world.
Our faith is "competitive price, good quality and efficient service". We sincerely hope to build good business relationship with you on the basis of mutual benefit.
