high quality machinery wood furniture design cnc carving router
Simple Description:

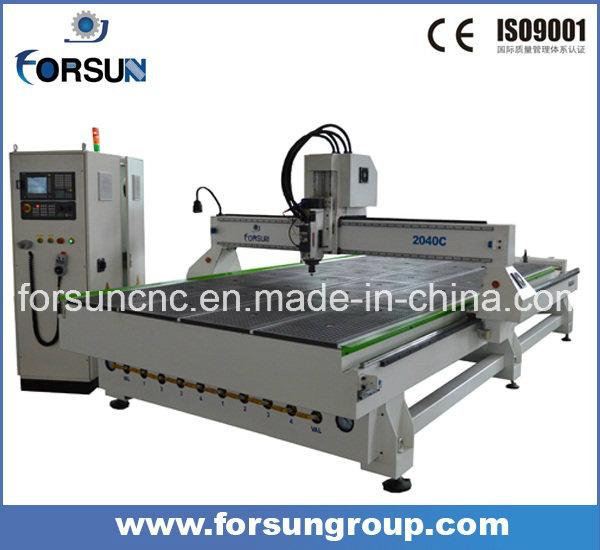

FS2040C-L is one an economical processing center with row type knife library. The main accessories of our machine are exported from world top brand. It is mainly for door maker.
Applicable Industry and materials:
1) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
2) The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.
3) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
4) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
Standard configuration:
1) Working area: 1300mm*2500mm*200mm
2) Siemens controller system from Germany
3) Siemens AC Servo motors from Germany
4) 9.0KW HSD air cooling spindle from Italy
5) DELTA inverter made in Taiwan
6) Carousel Type ATC with 8 positions
7) T-Slot vacuum table
8) ArtCam software,
9) 3PH 380V 50Z
10) Plywood case package
Optional Parts:
1)Becker vacuum pump
2)Dust collector system
3)Oil mist cooling system
Technical parameter:
NO | Description | Parameter |
1 | X,Y,Z Working Area | 2000x4000x200mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
4 | X,Y,Z Repositioning Accuracy | ±0.02mm |
5 | Table Surface | Vacuum and T-slot Combined |
6 | Frame | Heavy steel Tube structure |
7 | X, Y Structure | Rack and Pinion Drive, HIVIN Rail Linear Bearings |
8 | Z Structure | HIWIN Rail Linear Bearings and Ball Screw |
9 | Max. Power Consumption | (Without Spindle) 4.5kw |
10 | Max. Rapid Travel Rate | 45000mm/min |
11 | Max. Working Speed | 30000mm/min |
12 | Spindle Power | 9KW HSD |
13 | Spindle Speed | 0-24000RPM |
14 | Drive Motors | Siemens AC Servo |
15 | Working Voltage | AC 380V/50/60Hz,3PH |
16 | Command Language | G Code |
17 | Operating System | Siemens Control System |
18 | Computer Interface | Ethernet |
19 | Flash Memory | 256M |
20 | Collet | ER32 |
21 | X,Y Resolution | <0.03mm |
22 | Software Compatibility | Art cam software |
23 | Running Environment Temperature | 0 - 45 Centigrade |
24 | Relative Humidity | 30% - 75% |
25 | Packing Size | 3700X2280X1900mm |
26 | N.W. | 2000KG |
27 | G.W. | 2200KG |
28 | Optional Items | Syntec controller and YASKAWA servo system |
Reducer |
Vacuum Pump |
Mist-cooling System |
The customers who like our wood carving machine often ask?
Q1.how to get the most suitable cnc router and best price
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What's the MAX size of these material ?( length ? Width ? Thickness ?)
Q2: Do you have the manual of cnc router.
Yes,we have
Q3.If we donot know how to use the cnc router,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal
Q4.How about your cnc router after-sales service?
we offer you 24 hours service phone,skype or MSN
Q5.How about your cnc router guarantee period?
one and half year, and during the time,if you have any questions ,we will solve it for free.
More discount pls send us an inquiry!
Forsun is a leading global manufacturer of CNC routers, plasma arc cutting machines, and laser cutting machines. All the machines have been certified by CE. In manufacturing, the quality processes used are directly reflected in the excellent product that is delivered to your door. We have partnered with specific component manufacturers to deliver the best components for our machine systems. Our focus is on integrating advanced technology and value into systems that are highly productive, easy to use and built to last. Some of our strategic vendors include HSD Spindles, THK Bearing Systems, Siemens control system, YASKAWA servo, HIVIN linear guide and Eisler Reducer. As a machine builder, the exacting manufacturing processes we have created ensure that even custom systems can be engineered, manufactured and delivered with the shortest manufacturing lead times in the industry. We are near to you physically, and only a phone call or email away electronically for machinery, software and consumable sales as well as after sales support. Count on Forsun to work with you in your machine decision process, to build you an excellent quality CNC router that will work for years, and to continue to support you and your machine decision for years to come. We strive toward exemplary customer satisfaction, employee career fulfillment and corporate citizenship. Success in these areas, we believe, will yield long-term benefits for the Forsun brand, Forsun employees and our partners.
