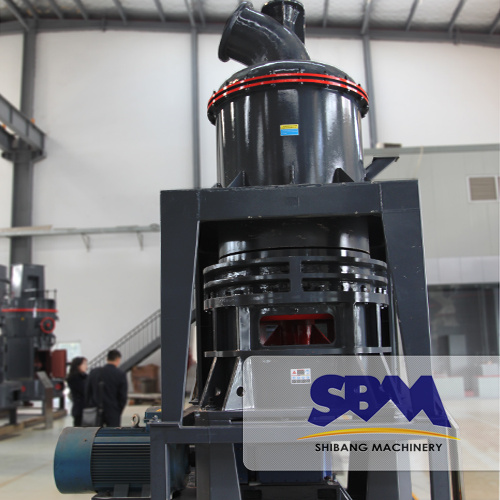

High Quality Micronizer

SCM Micronizer, Industrial Mill, grinding machine, grinding mill, mill:

1 High efficiency.
2 Micro stone powder grinder, To 2500 Mesh.
3 ISO9001: 2000, CE.

High Quality Industrial Mill Introduction

Shibang SCM Micronizer, Industrial Mill is on the basis of our company's production experience for more than 15 years. We absorb advantages from the same trade abroad and at home. We review, research and try on 12 kinds of mills and horizontal hammer crushers. And finally we developed this high-efficiency and low-cost super thin mill by investigation and trial.

This SCM Micronizer, Industrial Mill is an equipment which produces thin powder and super thin powder. It is applicable to non-flammable and non-explosive materials with hardness less than 6, such as calcite, chalk, limestone, dolomite, kaolin, bentonite, talcum, talc, magnesite, illite, pyrophyllite, vermiculite, sepiolite, attapulgite, rectorite, diatomite, barite, gypsum, alum earth, graphite, fluorite, variscite, potash ore, floatstone.

High Quality Industrial Mill Features and Benefits

1. High efficiency In same condition of finished particle size and power of motor, the output is 40% higher than airflow mill and whisk mill.
2. High using rate of the quick-wear part In same condition of material and finished particle size, the lifetime of the quick-wear part is longer than that of impact crusher and turbine crusher. It can be generally one year.
3. High safety Because there are no axle tree and bolt in the grinding antrum, there will be no wearout of bearing and sealingpart, also no loose of bolts.
4. Environmental protection It will lighten pollution and noise by using dust cleaner and muffler, which achieves environmental protection requirement.

High Quality Industrial Mill Application

Feedstock Size: 10-20mm
Throughout: 0.4-7.5T/h
Fields Of Application: SCM series of ultra-fine grinding is widely used in paint, paper, paint, rubber, plastic, packing, cosmetics, chemical products and other industries.

Suitable Materials: SCM series of ultra-fine grinding is mainly applied to the processing of Mohs hardness of < 9 nonflammable and explosive of brittle materials, such as: Coal, mica, talc, graphite, quartz, fluorite, calcite, dolomite, limestone, kaolin, bentonite, barite, potassium feldspar, bauxite, coal gangue.

High Quality Industrial Mill Working Principle:

Host motor through a speed reducer drives the spindle and the turntable, turntable driven by the column pin dozens of ring roll in the ring rolling and rotating raceway.

Bulk material by hammer crusher broken into small particles by the hoist into a storage bin, electromagnetic vibrating feeder will even materials to middle upper turntable, material under the centrifugal force scattered to the circumference, and fall into the mill race was ring roller stamping, rolling, polishing and grinding ring, the first layer of crushed material in the second layer and the three layer, suction high-pressure centrifugal fan external air suction machine, and after the meal third layers of crushed into powder selecting machine.
