Product Specifications
Prod Model: |
X3900 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Default OS: |
Win 7 |
Memory Capacity: |
2GB |
CPU: |
Intel |
HDD Capacity: |
1TB |
GPU: |
Intel |
Product Description

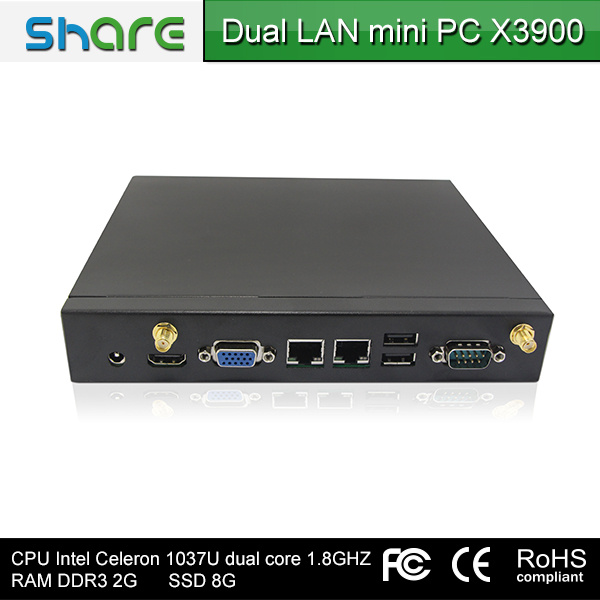

Industrial mini PC X3900
1. Product description
Share X3900 mini pc adopts 1037U processor, dual core CPU 1.8GHZ, which has exquisite workmanship motherboard, onboard 2GB RAM and 8G SSD, as for graphics card, we added IntelHD GraphicsHD2500-3000 discrete Graphics, support 3G users. This model added COM port and it is built for industrial users, which could fully competent in the industrial application, all solid and muting design, the whole motherboard design had taken the demand of the industrial users into account.
2. Product features
1. Mini X3900
X3900 mini pc with small size, 200*200*40mm volume, 1.5KG, perfect ports, small and delicate, the size is 1/36 of the standard desktop, saving space, very convenient to move, adopt the black Aluminium alloy shell which looks very professional and high-end. Firm and shakeproof enough
2. High performance
X3900 mini pc adopts multi-thread INTEL 1037U dual core CPU, 1.8GHZ speed, it has strong office processing performance, standard configuration 8G SSD could fully satisfied the modern office demand, low consumption, high performance dual core CPU and high performance VGA chipset could be absolutely competent in 3D graphic design and Artistic Design.
3. Low consumption
X3900 thin client uses brand new environmental protection and energy saving design, it uses the improved cooling fan of the notebook, consumption is the 1/6 of the traditional desktop, also the heat dissipation effect is outstanding.
4. Super high definition
X3900 adopts the industry leading NVIDIA ION 2 graphic processor, which has the Pure Video HD, 16 core CUDA technology, it could easily set up the living room and bedroom high definition theatre experience, and it will show you the HD visual exquisite. It is the best choice for the people who pursue perfect high definition visual enjoy.
model |
X3900 |
shell |
All black aluminium alloy |
customized |
OEM |
consumption |
17W |
weight |
1.5KG |
warranty |
3 years |
WIFI |
Optional Internal |
power |
12V-3A |
Machine size |
20*20*3CM |
CPU overview |
UPU type |
Intle/Celeron1037U dual core 1.8GHz processor
|
Processor series |
Celeron |
Core/thread |
Dual core dual thread |
BIOS |
AMI 32GB SPI Flash ROM |
Cache |
2MB |
Chipset |
Intel NM70 |
storage |
standard configuration 204 contact pin DDR3/2G two channel
DDR3 800/1066/1333 SDRAM up to 4GB
Max RAM 16GB |
Storage device |
standard configuration SSD8G,
could choose mass capacity HDD
2.5 inch HDD |
Network |
Onboard Redlrik RTL8111E/8105E Gigabit nics chip |
Graphics Cores |
Integration Intel HD Graphics(HD2000)
graphics card fundamental frequency:350MHZ
graphics card max fundamental frequency:1Ghz
support DX10.1
support HDMI
support full screen HD playback |
3D API |
support DirectX 11 |
Utility |
Office, medical Equipment,safe,network,POS and so on |
functional parameter |
temperature |
-20/+85 degree centigrade |
64 bit computing |
Support 64 bit computing |
virtualization |
Support Virtualization technology |
hyper-threading |
No Hyper-Threading |
product ports |
front panel ports |
1*MIC
1*SPK
1* Power indicator and switch
4*USB2.0 ports |
Backside ports |
1* power interface
1*HDMI port
1*VGA port
2*USB2.0 port
2*LAN port
1*COM port |
Internal ports |
1*SATA port
1*SATA HDD onboard HDD
1*mini-PCIE port(SSD)
1*mini-PCIE port(WIFI or 3G)
1*USB contact pin
Don't support LVDS
No COM port pin |
Support OS |
Can embedded Windows XP / Windows 7/ Windows 8
/ Linux OS |
