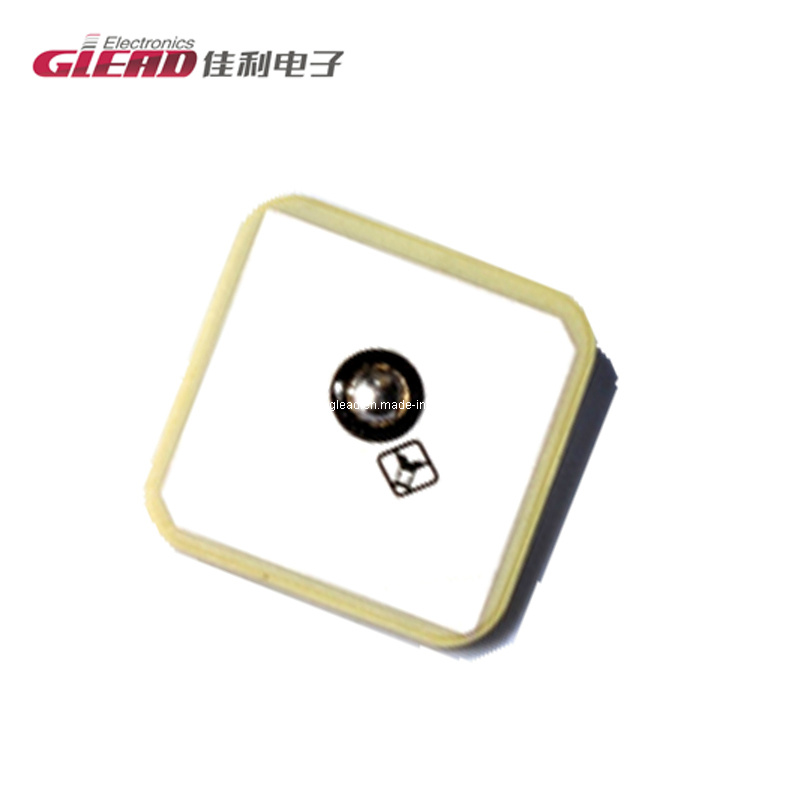

Ceramic Patch antenna-DAS1575R18C12-PF08
A. INTRODUCTION
"Glead" microwave dielectric antenna elements and its series are designed to be used for GPS and WLAN. The patch antenna with compact size incorporates a rectangular micro-strip design for GPS C/A right-hand circular polarization wave reception, featuring low RL, low Axial Ratio but high gain, etc.
Electrical specification can be customized.
B.
If you are interested in any of our products or would like to discuss a custom order, please Feel free to contact us. We are looking forward to forming successful business relationships With new clients around the world in the near future.
|
Item |
Specifications
|
Post Environmental Tolerance
|
(Mhz)
Range of Receiving Frequency |
1575 |
±2.5 |
Center Frequency (Mhz)
(with PF08 GND Plane) |
1574.5 |
±2.0 |
Band With (Mhz)
(Return loss ≤-10dB) |
≥5 |
±0.5 |
|
V.S.W.R(in Center Frequency) |
≤1.5 |
±0.5 |
|
Gain(Zenith) (dBi typ) |
0dB typical |
—— |
|
Axial Ratio |
5dB max |
—— |
|
Polarization |
Right-Handed Circular |
—— |
|
Impedance(Ω) |
50 |
—— |
(ppm/C)
Frequency Temperature Coefficient |
0±10 |
—— |
