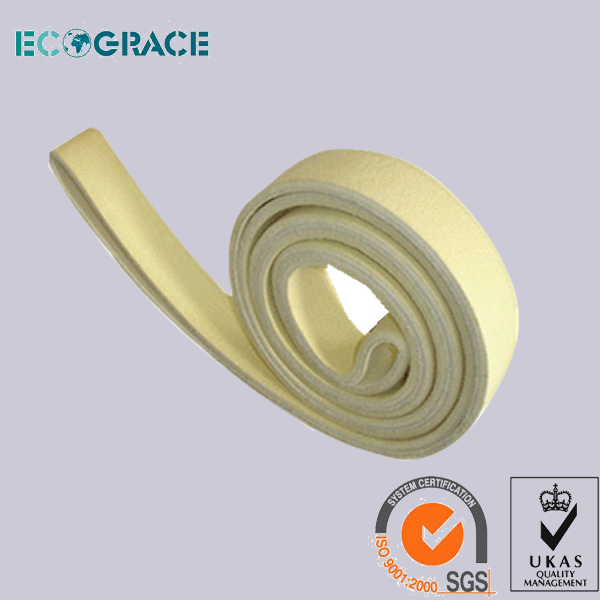

Polyester Conveyor Belt for Power
Specifications:
1. ISO9001: 2008
2. Material: Polyester, Nomex fiber
3. Thickness: 3-10mm
4. Width: 100~3000mm
Air Slide layer for cement plants:
1. Material: Polyester, Nomex
2. Thickness: 3-10mm
3. Width: 100~3000mm
Application:
· Cement industry
· Metal production industry (aluminium, copper, etc).
· Chemical plants and facilities
· Pharmaceutical industries
The choice of the appropriate cloth depends on various parameters, such as material's temperature, humidity, dust size and working environment.
Air slides can be adjusted according to each application, in cone form or any other type that meets your needs, regardless the size and shape, and can be used in large scale dust transfer vehicles, ships, conveyor belts etc.
|
Type |
Material |
Ply |
Tensile Strength >N/mm |
Heat
Resistance |
Thickness
mm |
Weight
kgs/m2 |
Max Width
mm |
Air permeability
m3/m2.min H2Omm |
|
AP4-4 |
polyester |
4 |
360/270 |
150 degree |
4 |
3200 |
2000 |
200 |
|
AP4-5 |
polyester |
|
360/270 |
150 degree |
5 |
3600 |
2000 |
150 |
|
AP4-6 |
polyester |
4 |
360/270 |
150 degree |
6 |
4000 |
2000 |
120 |
|
AP4-7 |
polyester |
4 |
360/270 |
150 degree |
7 |
4400 |
2000 |
100 |
|
AP4-8 |
polyester |
4 |
360/270 |
150 degree |
8 |
4800 |
2000 |
80 |
|
AC4-5 |
Cotton |
4 |
150/100 |
150 degree |
5 |
3800 |
1000 |
120 |
Hangzhou Grace Envirotech is a joint venture in China combined with Grace Filter Manufacturing (U. K) Limited. We are the largest manufacturer of Filter Needle Felts, filter bags, Dust Collectors, and dust collector parts; Meanwhile, we are designing and producing dust collecting system for cement plant, power plant, as well as iron and steel plant. Our company is the largest enterprise in the dust collecting industry in China,
Our factory is located in Industrial Area in Hangzhou, four big needle felt production lines. We have formed big scale production by our advanced equipment and mature technology. We design dust collecting system, produce filter bags for customers and users, and provide site technology consultant service, design, production, as well as after-sale service.
Nomex filter bag, PPS filter bag and P84 filter bags are now our star products in the world, highly popular in cement plant and power generation plant in all of the world.
Meanwhile, we are expertise in Dust Collector desgin, manufacturing and installation.
With many years of experience, Grace Filter is recognized around the world as the leading filtration dust filter bag and dust collection machine producer. Our experience make it possible for us to produce a complete range of filtration felt which meet customer specific filtration requirement. We have made great progress in supplying filter media in the cement industry, waste incinerator industry, power generation industry which make us on of the leading manufacturer and suppliers in the world.
Our professional technical team will provide pre-sales, manufacturing, delivery and after-sales service for dust collector units, dust collector system, baghouse bag filter, our professional installation workers will keep your dust collection system work perfectly and simple
