Product Specifications
| Prod Model: |
2CLG50KV/1.0A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| L*H*B: |
150*35*25 |
| Tj: |
-40oc~+150oc |
| Used: |
Electrostatic Cleaning |
| Features: |
More Sizes Available |
| Manufacturing Technology: |
Discrete Device |
| Material: |
Element Semiconductor |
| Type: |
P-type Semiconductor |
| Package: |
Through-Hole |
| Application: |
Rectification |
| Model: |
2clg50kv/1.0A |
| Brand: |
Leadsun |
Product Description

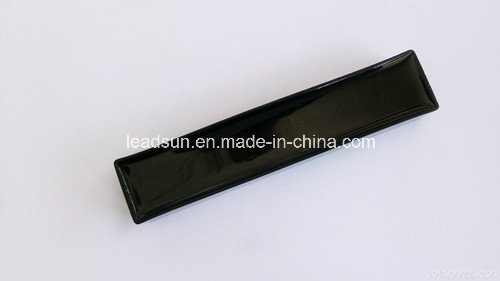

2CLG50KV/1.0A High voltage rectifier block adopts high reliable mesa structure and diffusion craftwork, epoxy resin molded in a compact structure.
Product features
1. Avalanche characteristic
2. More sizes available
3. Vacuum molded, non-corrosive epoxy resin case
4. Tj: -40ºC-+150ºC
Application
1. High voltage rectifier used in electrostatic cleaning
2. High voltage testing equipment
3. General purpose high voltage rectifier
Limiting Values(Absolute Maximum Rating)
| Item | Symbol | Unit | Condition | Voltage |
| Repetitive Peak Reverse Voltage | VRRM | KV | Ta=25ºC IR=0.5μA | 50.0 |
| Peak Working Reverse Voltage | VRWM | KV | Ta=25ºC IR=0.5μA | 50.0 |
| Non-Repetitive Peak ReverseVoltage | VRsM | KV | Ta=25ºC IR=0.5μA | 55.0 |
| Average Forward Current | IF(AV) | A | 50Hz Half-sine Wave ,
Resistance load @Tbreak=50ºC | 1.0 |
| Reverse Recovery Time | trr | nS | IF=20mA IR=40mA IRR=10mA | 100 |
| Surge Forward Current | IFSM | A | 0.01S @ Half-Sine wave 50Hz | 20.0 |
| Junction and Storage Temperature | T stg | ºC |
| -40~+150 |
| Virtual Junction Temperature | T(vj) | ºC |
| -40~+150 |
| Item | Symbol | Unit | Conditions | Voltage |
| Forward Peak Voltage | VFM | V | @ Ta=25ºC IF=1.0A | 68.0 |
| Peak Reverse Current | IRRM1 | μA | @ Ta=25ºC VRM=VRRM | 10.0 |
| Peak Reverse Current | IRRM2 | μA | @ Ta=100ºC VRM=VRRM | 200.0 |
This is leadsun electronics from Anshan, China. Our company is specializing in designing and producing types of high voltage components, such as high voltage diodes, high voltage bridge rectifier, high voltage silicon assembly, special high voltage modular, multiply voltage modular and high frequency high voltage power supply. These products are widely applied for electrostatic cleaning, medical X-ray machine, CT, MR, dehydrating of crude oil, broadcast launching, laser power supply, high voltage modular, high voltage test equipment, TV/display FBT, air purifier, power supply, etc.
