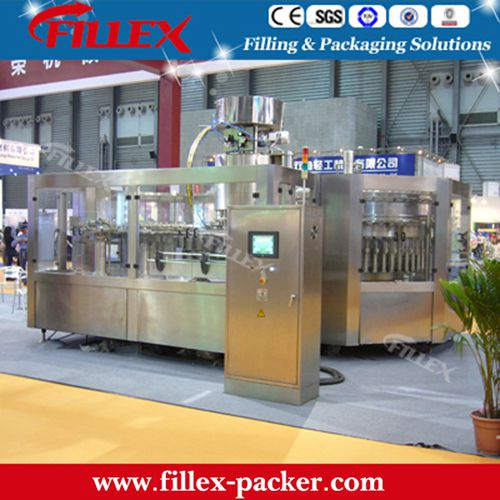

High Speed Beverage for Carbonated Drink
Beverage Machinery
Suitable bottle: PET
CE & ISO.
Can be connected to labeling, packing machine.
Beverage Machinery,
It can fill gas water, carbonated beverage soda water in filling line
The Beverage Machineryis mainly used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic. The machine is used in filling Carbonated Beverages, Cola. Soda Water n bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles. The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machinery of the same specifications. The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.
Main technical parameters |
| Model GFC-H | 18-18-6 | 24-24-8 | 32-32-8 | 40-40-10 | 50-50-12 | 60-60-15 |
| Capacity (500ml) | 4000BPH | 6000BPH | 8000BPH | 12000BPH | 15000BPH | 18000BPH |
| Bottle size | Glass bottle φ =50-100mm H=160 -330mm |
| Cap type | Crown Cap/Metal Screw cap/ Plastic Cap |
| Filling precision | ± 5mm(liquid level) with vacuum filling |
| Power | 3.2kw | 5.6kw | 7.2kw | 8.1kw | 9.8kw | 12.3kw |
| Dimension mm | 2550× 1900× 2400 | 2950× 2500× 2600 | 3400× 2550× 2600 | 4000× 2950× 2600 | 4500× 3200× 2600 | 4800× 3400× 2600 |
| Weight | 2800kg | 3800kg | 4900kg | 7900kg | 9200kg | 11000kg
|
