Product Specifications
| Prod Model: |
FM-AZJ/E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Kind: |

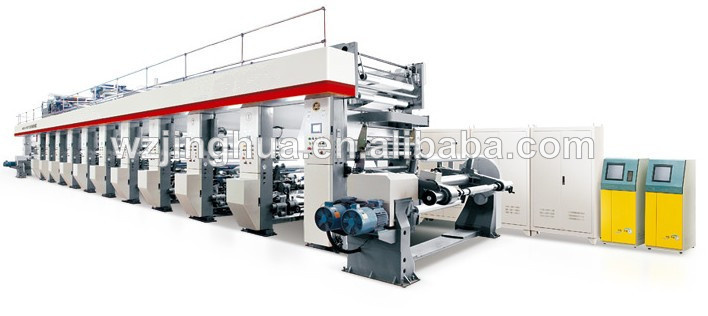

High Speed Multicolor Flexo Printing Machine |
| Type: |
Ink Jet |
| Plate: |
Lithography Printing |
| Color & Page: |
Multi-Colour Printing Press |
| Printing Interface: |
USB2.0 |
| Printing Speed: |
7.5CPI |
| System Supported: |
Windowsxp32 |
Product Description
Application:This machine is suitable for multi-color once-through continuous printing for such roll film materials with excellent printing performance as BOPP, PET, PVC, PE, aluminum foil and paper, etc.
Product Features:1, Every control module of the automatic color register system is equipped with microprocessor and can correct the deviation of
Color register quickly and accurately.
2, Main motor with inverter speed control
3, Turret un/rewinding section, non-stop material splicing, air chuck core less roll loading system, quick material swift
4, Unwinding and in-feed section with inverter speed control system and close loop tension control system
5, Rewinding and out-feed section with inverter speed control system and close loop tension control system
6, Closed oven and independent heating hot air blowing system, automatic constant temperature system.
7, Pneumatic impressing system and pneumatic doctor blade system
8, Diaphragm-type pneumatic ink auto circulating system
9, Printing linear speed and meter counting display
10, Shaft less printing cylinder loading device, printing cylinder is fixed by shaft-less air chuck.
11, Option: Web video
Type
Max. Width of Web
Max. Printing Speed
Max. Diameter of Unwind/Rewind
Internal Diameter of Roll Core
Diameter of Printing Cylinder
Accuracy of Registration
Tension Control Range
Steam Heating System
Total Power
Weight of Machine
Overall Dimension | FM- AZJ-8850E
850mm
230m/min
800mm
76mm
180~380mm
±0.1mm
3~25kg/Full Width
216Kw
304Kw
40500kg
L21200×W4600×H4200mm | FM- AZJ-81050E
1050mm
230m/min
600mm
76mm
180~380mm
±0.1mm
3~25kg/Full Width
243Kw
335Kw
42000kg
L21200×W4800×H4200mm | FM- AZJ-81250E
1250mm
230m/min
600mm
76mm
180~380mm
±0.1mm
3~25kg/Full Width
270Kw
365Kw
43500kg
L21200×W4500×H4200mm |
