Product Specifications
| Prod Model: |
fc300-alarm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Better Alarm |
| Battery: |
Lithium Battery 800mA/H |
| Standby Current: |
220mA |
| Alarm Current: |
310mA |
| Receiving Frequency: |
868.35MHz |
| Emitting Frequency: |
868.35MHz |
| Receiving And Emitting Distance: |
More Than 100metres Under Open Area |
| Alarm Zone: |
109 |
| Working Method: |
Wireless |
| Cetification: |
CE |
| Type: |
Home Alarm |
| Usage: |
Smoke |
| Application: |
Indoor |
| Certification: |
CE |
| Transmission Mode: |
Wireless |
| Working Principle: |
Electro-Optical Type |
| Signal Transmission: |
Wireless Alarm |
| Working Mode: |
Passive |
| Sensor Type: |
Electric Alarm |
| Alarm Volume (',within 1m): |
≥110dB |
| Receive Frequency: |
Fsk868 |
Product Description
GENERAL DESCRIPTION

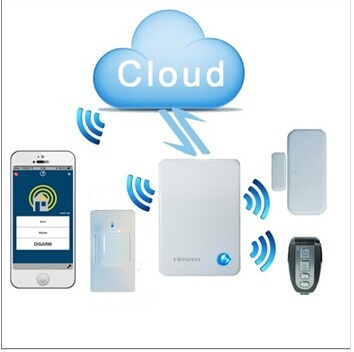

IP Alarm is a new burglar alarm system controlled by your smart phone or tablet via the internet. The IP Alarm Cloud drives the system, which provide you with information about who enters your house, which sensor has been triggered etc. Notifications aredistributed to friends and neighbors, ether by PUSH or email.Power and internet connections are surveyed online. Should one interrupt the power or the internet, the system will notify you within seconds. The app can monitor and control the system from anywhere as long as your phone or tabletis connected to the internet. [GPRS; 3G; Wi-Fi etc.]. The central unit of the system is the IP Alarm Scanner.
Do not expect a lot of buttons and displays. All control is done by the app.
Easy and convenient - always in the palm of your hand!
INSTALLATION
The system is a DIY [Do it yourself] system with a minimum of setup. Just download and install the 'IP Alarm' app from Google Play or Apple App Store. Make sure the system is powered up and connected to the internet. Check that your mobile device is connected to the internet. Enter the alarm ID and password in the app and follow the guides. Please, study the help sections for further details and learn more about the individual components in this introduction.
Feature:
Command for Arm delay,Alarm delay, Alarm zone with or without intellegent door sensor uploading open or close status function, active siren, close siren can be set through Internet.
2) Learn Remote Control and Detector ; Delete Remote Control and Detector.
3) Operate Alarm panel Away Arm,Home Arm, Disarm, Emergery Alarm through Internet.
4) Upload Status for Alarm panel: Away Arm, Home Arm, Disarm,Low voltage, Recovery of Low voltage, External power on, Cutting external power, Tamper-proof, Periodic upload(include Remote Control ID which operate Away Arm,Home Arm, Disarm).
5) Upload Low voltage of Detector, Alarm Zone, Tamper-Proof triggered.
6) Support setting alarm zone with intellegent door sensor function: triggerred by open or close door, and upload Status of Alarm zone
7) Alarm siren keeping time is 2minutes.
8) Can be set with 10pcs of Remote Control ID
9) Can be set with 99 wireless zone, and each zone can
learn 1pc of accessories.
Specification:
Power supply: 5V/1000MA
Battery: lithium battery 800MA/H
Standby Current: 220MA
Alarm Current: 310MA
Receiving Frequency: 868.35MHz
Emitting frequency: 868.35MHz
Receiving and emitting distance: More than 100metres under open area
LED light:
Light Off: without external power under Status of disarm.
Blue light keep on: external power working normal, under Status of disarm.
Blue light flash slowly: Status for Arm (slowly flash one time each 3seconds)
Blue light flash quickly: Status for Alarm (flash one time each 0.6second)
Red light on: Status of learning
-----------------------------------------------------------------------------------------------------------------------------------------------------------------
Red light flash slowly: (Flash for 5times each second) learning successfully.
Yellow Light off: power of battery is enough
Yellow light on: Low voltage for battery
Alarm Zone:
There is 100 alarm wireless zone in total for alarm panel.
00 : Wireless Remote control (10pcs in total)
01-19 : 24hours zone (19 wireless zone in total)
20-59 : Perimeter zone (40 wireless zone in total)
60-99 : Motion zone (40 wireless zone in total)
Operation introduction:
1) Arm/Disarm:
There are 2 way to Arm/Disarm: set by wireless remote control and Internet control
Away arm/Home arm: When alarm panel receive "Away Arm" or "Home arm" command, the buzzer and loudspeaker will sound "di" to show arm successfully.
If enable arm delay, go into arm delaying status, the buzzer will sound "di" one time each second.
When arm delay finished, there is long "di---" to show arm successfully, and the blue light flash slowly at rate of flash one time each 3seconds.
Disarm: When alarm panel received command for "Disarm", then the buzzer and loudspeaker will "di" for 2times.
Blue light keep on when with external power.
Blue light off when without external power
2) Set the system parameter (Please reference Communication protocol )
Set though Internet: Arm delay, Alarm delay, upload Status of Intelligent door sensor open or closed, siren start or closed.
Scope for Arm delay: 0-59seconds
Scope for Alarm delay: 0-59seconds
3) Wireless learning or deleting
Learning method: Internet control
When alarm panel received learning command, Red light will keep on, and active wireless detector or remote control.
The wireless learning time is 30seconds:
If learned successfully, the Red light will flash quickly for 5seconds, and buzzer will sound "di" for 5times at same rate as Red light flashing.
If learned unsuccessfully, the Red light off, and buzzer will sound "di-" as long as 1.5seconds.
-----------------------------------------------------------------------------------------------------------------------------------------------------------------
4) Alarm
When active alarm by Remote control or wireless detector trigger, if alarm delay is 0second,then alarm delay is more than 0second, and alarm panel will go into alarm delay status, and the buzzer will sound "di" one time each second.
When alarm delay finished, it will go into alarm status, and blue light will flash quickly.
And alarm time is 2seconds.
And the alarm panel can be active emergency alarm through Internet.
5) Intelligent zone function:
If there is one zone of wireless zone1-99 is set as intelligent door sensor, and enable function of Intelligent door sensor for status of open and close uploading, then the status of intelligent door sensor will be uploaded to Internet separately.
6) Power on and Low voltage
A.Power on
When external power is cut off for 8seconds, blue light off under status of disarm, and upload power cutting off status to Internet.
When the alarm panel recover external power on, blue light on under status of disarm, and upload power recovery status to Internet.
B. Battery
When low voltage of battery keep for 8seconds, blue light keep on, and upload status of battery low voltage to Internet.
When low voltage of battery recovery more than 8seconds,blue light off, and upload status of low voltage recovery status to Internet.
7) Upload status of low voltage of accessories, and tamper-proof
When alarm panel received command for detector low voltage or Tamper-proof triggered, the alarm panel will upload detector low voltage or Tamper-triggered information to Internet.
8) Function of Periodic upload
Alarm panel will upload signal of system working normal to Internet.
---------------------------------------------------------------------------------------------------------------------------------------------------------------
9) IP Alarm APP interface:
| MOQ: 100pcs per model,combined order possible,. |
| Payment term: EXW factory, T/T in advance |
|
|
| Delivery time: 2~4days after confirming the payment done.Big order 7~14 |
| Sample shipping way: usually sent by DHL/UPS/FedEx or by air for small order. Big order by sea. |
| Warranty: two years, battery and adaptor is no warranty. |
|
| Remarks: customized possibility: Pack,Box,Logo,manual,Color.OEM/ODM.! |
