Product Specifications
Prod Model: |
WCT-63A-3P MANUAL |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Circuit Rating Voltage: |
24V, 230/240V |
Circuit Rating Current: |
16~100A Household |
Suitable For Frequency: |
50/60Hz |
Household Contactor Standard: |
IEC61095 |
Household Contactor Auxiliary Contact: |
No Nc |
Life Time(Mechanical): |
24000~36000 Times |
Life Time (Electrical): |
12000~30000 Times |
Air Magnetic Contactor Function: |
Protect Over Load Phase Circuit |
Match Fuse Type: |
Rt16 Type |
Material: |
Copper and Anti Fire Plastic |
Size: |
Miniature |
Theory: |
Electromagnetic Relay |
Usage: |
Car Relay, Household Appliances Relay, Communication Relay, Lathe Relay |
Protective Characteristics: |
Open Relay |
Load: |
Medium Power Relay |
Action Principle: |
Electromagnetic Type |
Product Description

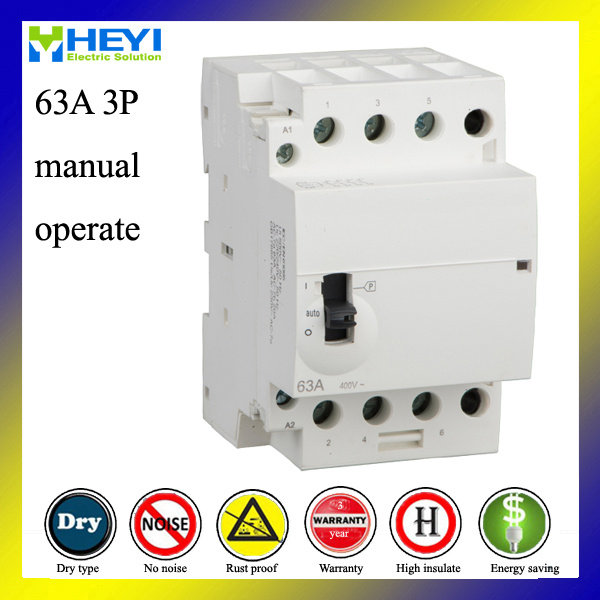

Home Use Ac Modular Contactor With OEM 63A 3P manual operate
Current AC7A (Household appliances and similar use of low - load)
=63A
Current AC7B(Household motor load)=25A
Technical Data
Rated Current (A) | 16,20, 25, 40,63,100 |
Rated Voltage (V) | 230V 2P, 4P |
400V 4P |
Rated Frequency(Hz) | 50/60Hz |
Electrical endurance | 30, 000 cycles |
Mechanical endurance | 100, 000 cycles |
Ambient temp. | pillar terminal with clamp |
Installation | On symmetrical DIN Rail |
Power circuit |
|
Voltage rating (Ue)2P | 230/240VAC/24V |
Frequency | 50HZ or 60Hz |
Electrical | 100,000 cycles |
Maximum number of switching operation a day | 100 |
Additional characteristics |
|
Insulation voltage Ui | 500VAC |
Pollution degree | 2 |
Rated impulse withstand voltage (Uimp) | 2.5kv(4kv for 12/24/48VAC ) |
Degree of protection device only | IP20 |
IEC60529 Device in modular enclosure | IP40 |
Operating temperature | -5 to 60 degree |
Storage temperature | -40~70degree |
Tropicalization (IEC60068-1) | Treatment 2 (relative humidity 95% at 55 degree ) |
ELSV compliance (extra low safety voltage )for 12/24/48vac versions |
The products control confirms to the selv(safety extra low voltage )requirements |
Home Use Ac Modular Contactor With OEM 63A 3P manual operate advantage
1.20 years global leading profession manufacture of ac contactor
2.Long life high reliability
3.It will match to thermal relay ,protect over load or lack phase circuit
4.Fast delivery : you will get the order when you need it
5.OEM is warmly welcome
6.3 line assemble line ,each day will make more than 100000pcs
7.Convenient : 45 minutes to wenzhou airport
8.Rated insulate voltage 1000V
Home Use Ac Modular Contactor With OEM 63A 3P manual operate function
1.saving power
2.No invoice
3.No temperature rise
4.Auxiliary contact without vibration
5.Long life, high reliability
6.Anti electromagnetic interference
7.Intelligent anti electricity dazzling
Home Use Ac Modular Contactor With OEM 63A 3P manual operate Payment terms
1. 30% T/T advance , the balance against to the copy B/Lor LC at sigh
2. The other specific issues can negorate.
3. Pls confirm the details with us before do the prepayment.
Home Use Ac Modular Contactor With OEM 63A 3P manual operate Packing information
1. Inside foam package ,outside strong paper package
2. 50pcs/per CTN
3. G/N.W: 16/15kg
4. We can packing as your required,good looking design
Why choose Home Use Ac Modular Contactor With OEM 63A 3P manual operate
1).ISO9001,SGS,Gold golden supplier
2) Monthly Production Capacity -- 100000 Pcs
3)All goods examined before delivery by 10 QC staff
4)Prompt Reply Within 12 Hours
5)8000 square meters work environment
We are the professional manufacturing the 0.5-35 KV outdoor indoor, dry type, oil-immersed, combined transformer, electrical energy meter, power capacitor correction bank, low voltage stablizer and so on
We are the first one who been granted the transformer production license by National technical supervise bureau, Machinery industry Dept, national electrician committee.
The company holds the registered capital of RMB1 0, 000, 000.00, and her importing & exporting amount each year exceeds USD 1, 000, 000.00, The company is provided with the Management Dept, Marketing Dept, Engineering & Technology Dept, Quality Control Dept, Material Supply Dept, Production Planning Dept, Financial Dept and so on. Currently it has 309employees, including 6 engineers and 10 technicians. The company has a strong technical force, advanced production and test equipment and the world latest manufacturing process and technology to adequately meet the customer needs for quality.
Our products are not only largely meet with the demand of domestic customers, but also widely exported the markets of North and South America, Southeast Asia, Middle-east, Latin America, Africa, and Europe with a very good reputation.
Some products have been approved by CE and IEC certificates.
As we hopefully steeping into the newest century, welcome new and old clients to make a good or Better business cooperation relationship.
