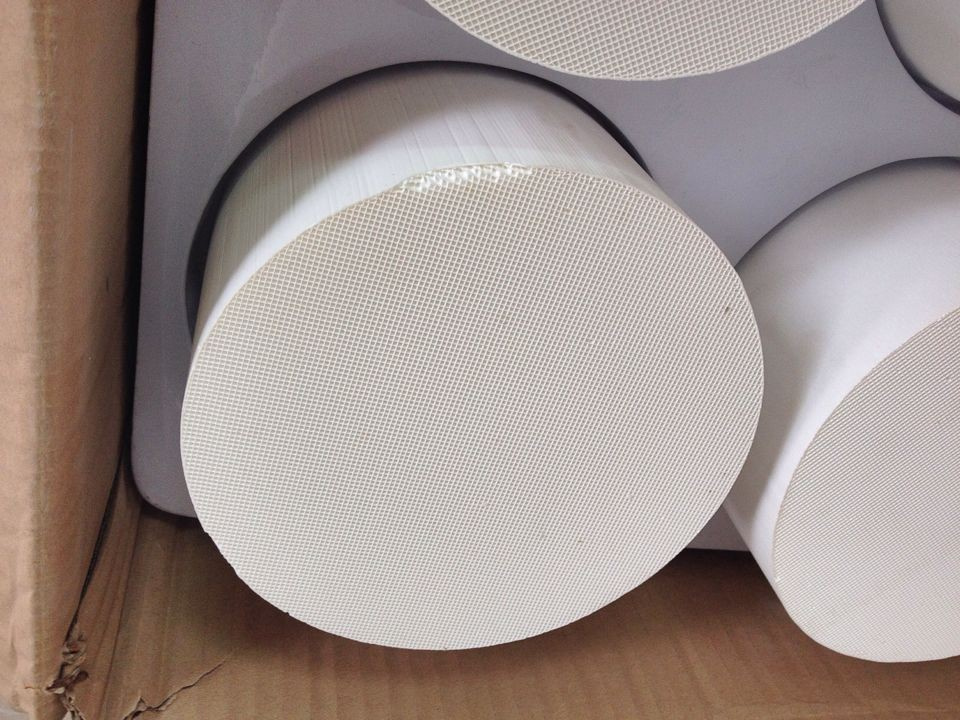

Catalyst Carrier Honeycomb Ceramic Subsrate Introduction:
Our product is made of catalyst platinum and palladium, these three precious metals to rhodium. When carbon monoxide, hydrocarbon and nitrogen gas through three-yuan catalyst, the activity will improve under high temperature. Results, carbon monoxide is oxidized carbon dioxide, hydrocarbons into water and carbon dioxide and nitrogen oxides reduction of nitrogen.
Catalyst Ceramic Honeycomb Working principle:
Catalyst Carrier Honeycomb Substrate can deal with CO, HC, and Nox three kinds of gas in the car through three-yuan catalysts, enhanced purification of three kinds of gas, oxidation, reduction of active chemical reactions.
Major technical parameters:
1. Substrate: Metal honeycomb substrate (Fe-Cr-Al alloy);
2. Light-off temperature: CO≤ 200° C, HC≤ 200° C, NOX≤ 200° C;
3. Coating losing rate ≤ 3%;
4. Conversion rate: CO≥ 90%, HC≥ 90%, NOX≥ 80%
Catalyst Carrier Honeycomb Ceramic Substrate:
1. Can supply with Europe. II, III Standard product
2. Can supply samples for your test
3. Can supply SGS test or other test as u need
4. Can supply various of type as u need
5. Can supply good quality and reasonbal Ceramic Substrate
|
Hole number |
Hole density (hole/inch ²) |
Hold side length (mm) |
Specific area (m ² /m ³) |
Fractional hole area(%) |
|
5*5 |
1 |
26.3 |
117 |
77 |
|
13*13 |
5 |
9.2 |
278 |
64 |
|
20*20 |
11 |
6.4 |
455 |
73 |
|
25*25 |
18 |
4.9 |
540 |
67 |
|
40*40 |
46 |
3.0 |
825 |
65 |
|
50*50 |
72 |
2.3 |
1005 |
57 |
|
Notice: shapes and sizes can be produced according to cliences drawing & requirest; standard material :alumina/multiple /cordierite. |
|
Hole number |
Hole density (hole/inch ²) |
Hold side length (mm) |
Specific area (m ² /m ³) |
Fractional hole area(%) |
|
5*5 |
1 |
26.3 |
117 |
77 |
|
13*13 |
5 |
9.2 |
278 |
64 |
|
20*20 |
11 |
6.4 |
455 |
73 |
|
25*25 |
18 |
4.9 |
540 |
67 |
|
40*40 |
46 |
3.0 |
825 |
65 |
|
50*50 |
72 |
2.3 |
1005 |
57 |
|
Notice: shapes and sizes can be produced according to cliences drawing & requirest; standard material :alumina/multiple /cordierite. |
