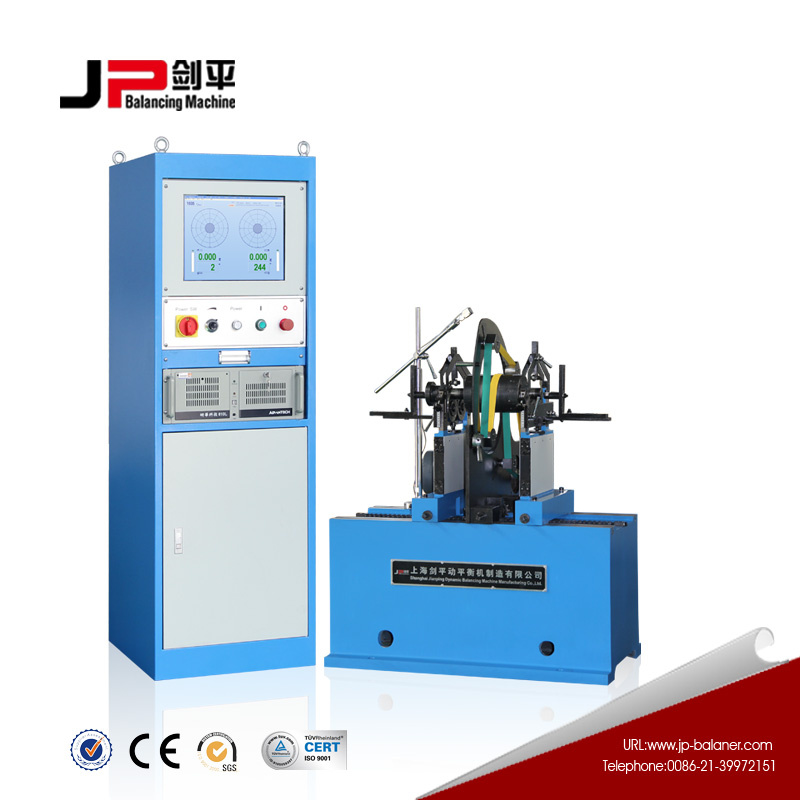

Horizontal Balancing Machine Specially for Textile industry
Production Description
Specially designed brackets transmit mechanical force with low vibration damping
Durable and reliable sensor possesses good linearity
Permanent calibration brings high accuracy with a permission of large initial unbalance amount
Belt-driving offers higher precision and easier operation
Advanced electrical measuring system and friendly man-machine interface
Modular design offers a wide range of application
Range of Application
Horizontal Balancing Machine Specially for Textile industry is also widely used in balancing rotatable bodies, such as kinds of medium-sized and small-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool, textile machinery, tool, spindle, etc...Driven by belt, equipped with Variable speed motor to drive. Which ensures high quality balancing and precision. Quick booting, easy operation. And high efficiency
Special Features
The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanhua Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments
Production Parameters
| Technical data at a glance | PHQ-50 |
| Max Mass of Workpiece (kg) | 50 |
| Max Diameter of Workpiece (mm) | 700 |
| Distance between Two Support Bearings (mm) | 80--700 |
| Journal Diameter Scope of Workpiece (mm) | 8~80 |
| Diameter Scope of Driving Belt (mm) | 18~200 |
| Rotation Speed when the Diameter of Driving Belt is 100mm (r/min) | 700/1050 Stepless speed regulation |
| Motor Power (kw) | 0.75 Frequency conversion |
| Min Achievable Residual Unbalance Amount (emar) | 0.5g. mm/kg |
After Sale Service:
Professional engineer and application specialists respond to your requests efficiently
Online via SKYPE MSN; Also through mail, voice phone message and fax if network is not accessible for customer
Follow up the case, record the entire process. Solution will be provide with 24 hours
Meanwhile, the problem complaint will be reported to QC department
QC will find defect from which department, who is in charge to identify responsibility
Collecting and record customer respond, suggestion, requirement
About Us:
Shanghai Jianping Dynamic Balancing Machine Manufacturing Co., Ltd. Is a professional manufacturer of dynamic balancing machine, which is high-tech technology enterprises of Optical-electro-mechanical Integration,
There are ten series and more than 40 models of balancing machines, including belt drive balancing machine, universal joint drive balancing machine, vertical balancing machine, cross flow fan blade balancing machine, drive shaft balancing machine, self-drive balancing machine and auto-positioning balancing machine, two-plane axial flow balancing machine, smart balancer, automatic balancing machine, soft bearing balancing machine, manual milling machine etc.
Company has won AUDITED SUPPLIER by SGS-CSTC and passed ISO9001: 2008 authentication of TUV, CE Certificate of Ente Certificazione Macchine
Warranty period:
Life-time warranty. Any problem caused by our party within one year from the date of shipment, we will provide free spare parts for the repairment. After one year, we can provide the spare parts, but the user should pay for the related cost, including cost of the spare parts, delivery cost etc.
Shanghai Jianping Dynamic Balancing Machine Manufacturing Co., Ltd. is a professional manufacturer of dynamic balancing machine, which locates in the largest city of China-Shanghai. The high-tech business entity composed of scientific and technical personnel who have devoted to the design, development and manufacturing of balancing machines for many years as well as the backbone elite with abundant experience.
Dynamic balancing machine produced by the company cover horizontal Balancing Machine, vertical Balance Machine, various semi-automatic Balancing Machine, automatic Balance Machine for industrial production flow, special dynamic balancing machine for turbo, main shaft of machine tool, crankshaft of automobile, driving shaft, electric armature, fans, roller, aerospace engine, on-site balance for power factory and station, including automobile, electric, aerospace, turbo, common machinery industries. The products are also batch exported to Occident, Australia, South Africa, Russia, Middle East, Southeast Asia and etc.
Company sticks to a "Human Oriented" management pattern and attaches importance to the selection and cultivation of qualified employees. Outstanding expertise and employee quality guarantees high-quality products. What' S more, good after-sale services and technical support eradicate your fear of trouble in the future when purchasing or using Jp balancing machine. Company has won AUDITED SUPPLIER by SGS-CSTC and passed ISO9001: 2008 authentication of TUV. CE Certificate of Ente Certificazione Macchine
Quality is our fundamental, credibility is our aim, customer satisfaction is our eternal pursuit. Welcome visits, discussions and suggestions as well as inquiries from the new and old customers. Wish to establish a long-term partnership and friendship with clients all over the world
