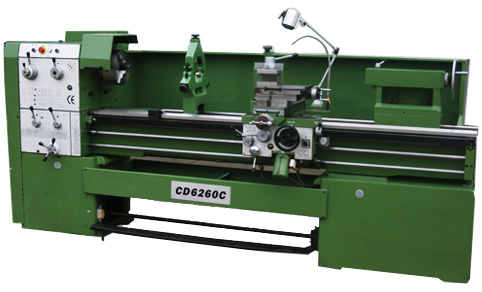

Product Specifications
| Prod Model: |
CD6260C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
-Precision ground
-CE-conformity, electromagnetic brake can be amounted.
-Safety torque limiting device for lead screw
-Safety overload clutch for feedrod.
-Rapid traverse (optional)
-Main spindle supported at 2 points with precision taper roller bearings.
| Model | CD6260C |
| Capacities | Max. swing over bed | 600mm |
| Max. swing over cross slide | 360mm |
| Center distance | 1000.1500, 2000mm |
| Max swing over gap | 730mm |
| Effective length of gap | 260mm |
| Bed width | 330mm |
| Headstock | Spindle hole | 80mm |
| Spindle nose | ISO-C8 or ISO-D8 |
| Spindle taper | Metric 85mm |
| Spindle speed (number) | 24-1600rpm (15 steps) |
| Feeds | Metric threads range (kinds) | 0.5-28mm (66 kinds) |
| Inch threads range (kinds) | 1-56inch (66 kinds) |
| Moudle threads range (kinds) | 0.5-3.5mm (33 kinds) |
| diametral threads range (kinds) | 8-56 D. P (33 kinds) |
| Longitudinal feeds range (kinds) | 0.072-4.038mm/rev (0.0027-0.15inch/rev) (66 kinds) |
| Cross feeds range (kinds) | 0.036-2.019mm/rev (0.0013-0.075inch/rev) (66 kinds) |
| Rapid travelling speed of carriage | 5m/min (16.4ft/min) |
| Leadscrew size: diameter pitch | 35mm |
| Carriage | Cross slide travel | 300mm |
| Compound rest travel | 130mm |
| Cross section size of toolshank | 25x20mm |
| Tailstock | Taper of tailstock sleeve | Morst no. 5 |
| Diameter of tailstock sleeve | 75mm |
| Travel of tailstock sleeve | 120mm |
| motor | Main drive motor | 4.0KW or 5.5KW or 7.5KW |
| Coolant pump motor | 0.125KW |
| Rapid traverse motor | 0.12KW |
| Packing size (LxWxH) | Center distance: | 1000mm | 2420x1150x1800mm |
| 1500mm | 2920x1150x1800mm |
| 2000mm | 3460x1150x1800mm |
| N. W. /G. W. | Center distance: | 1000mm | 1800/2500kgs |
| 1500mm | 2010/2760kgs |
| 2000mm | 2250/3070kgs |
