Product Specifications
| Prod Model: |
XK-250, XK-360, XK-400, XK-450, XK-560, XK-660, |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
380V |
| Weight: |
<50 tons |
| Type Of General Rubber Machinery: |
Mixing Roll |
| Type Of Tire Machinery: |
Rubber Regeneration Machinery |
| Certification: |
ISO, CE |
| Power: |
10~100KW |
| Using Life: |
<15 Years |
| Customized: |
Customized |
| Bearing: |
Self-Aligning Ball-Bearing |
| Type: |
General Rubber Machinery |
Product Description

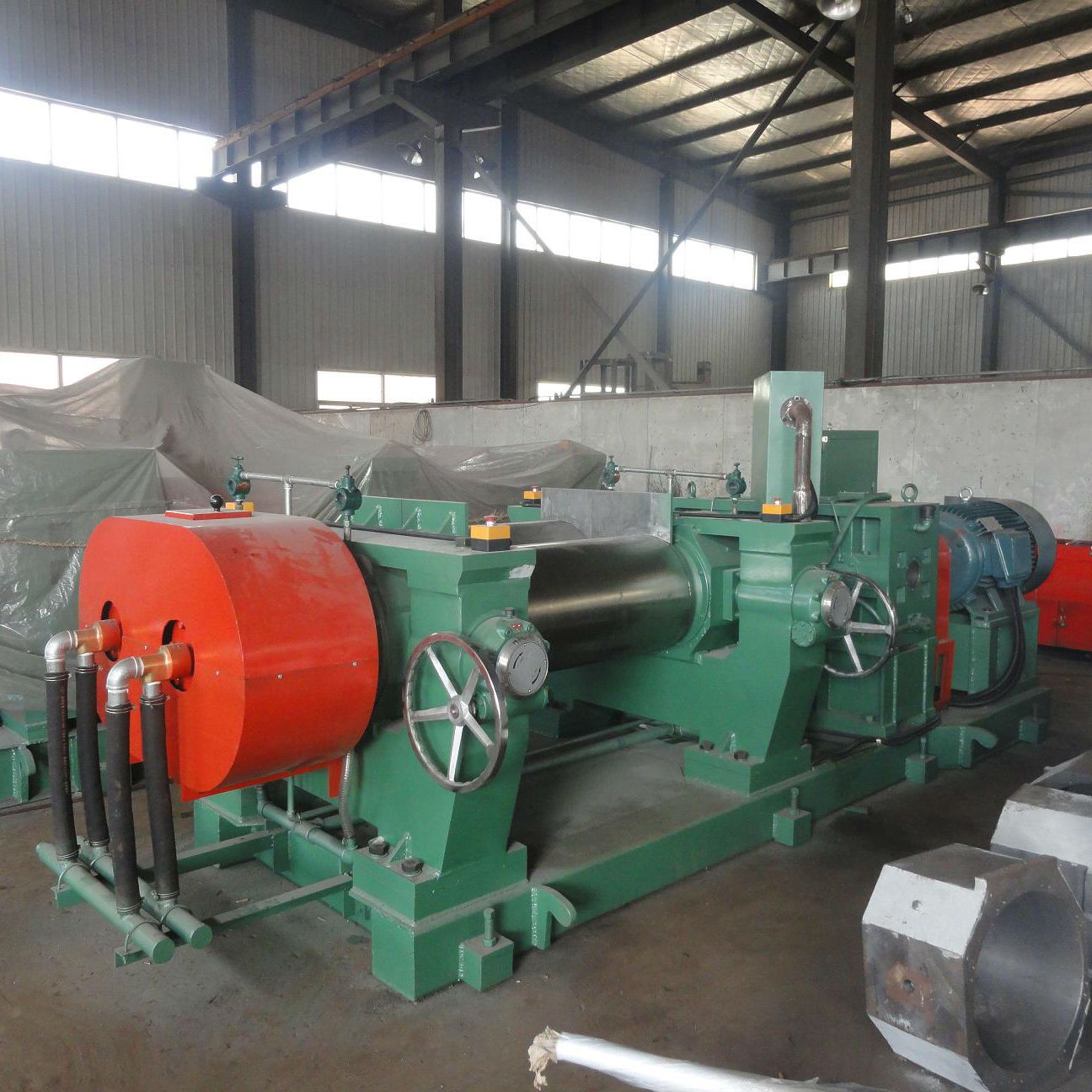

Rubber open mixing mill
1. Uses
The machine mainly used for plasticating crude rubber, mixing of rubber materials, warming up of mixed rubber and pressing to sheets etc.
2. Features
1)Tailored structure, easy to operate.
2)There are many speeds and speed ratios available, which can satisfy most customers' formula and processing requirements.
3)Frame, frame cap and base, looking very nice, are welded and treated by annealing for stress relieving.
4)Chilled alloy cast iron roll is abrasion resistant with long service life.
5)The speed reducer is the hard-tooth surface gear reducer of Class 6 precision, which has long service life and low noise.
| Parameter/version | XK-160 | XK-250 | XK-400 | XK-450 |
| roll diameter | 160 | 250 | 400 | 450 |
| roll length | 320 | 620 | 1000 | 1200 |
| front roll surface speed(m/min) | 8.89 | 15.3 | 18.65 | 24.32 |
| friction ratio | 1: 1.35 | 1: 1.1 | 1: 1.27 | 1: 1.27 |
| max. nip | 4 | 8 | 10 | 15 |
| feeding capacity per | 1-2 | 10-15 | 18-35 | 25-50 |
| power(kw) | 5.5 | 18.5 | 37 | 55 |
The company owns powerful technical strength, advanced technics, the best design and strict quality guarantee system, which owns a high repution in China rubber machinery industry.
The main products are plate vulcanizing press, open rubber mixing mill, banbury intensive kneader, extruder, rubber and reclaimed rubber machinery, within the (outside) tires complete set of machinery.The products have been sold to more than 20 provinces and cities in China and have been exported to more than 10 countries and areas.All of the products are designed visually by three-dimension CAD design, quickly built module, limited element analysis, analogue action and interfering inspection.The combination of three-dimension CAD system and internet guarantees the synchronization with internatinal advanced technology.The combination of three-dimension CAD and CNC numeral process center realizes the transit from traditional manufacture to modern three-dimension manufacture.At the same time, the company keeps good contact with several universities and research institutes.
The company takes"To live by quality, To develop by reputation, To innovate by science and technology, To keep improving all the time"as managing ideas, and insists on the principle of "Quality is the first, Reputation is the?First, Client is the first" that will provide you the best service.
